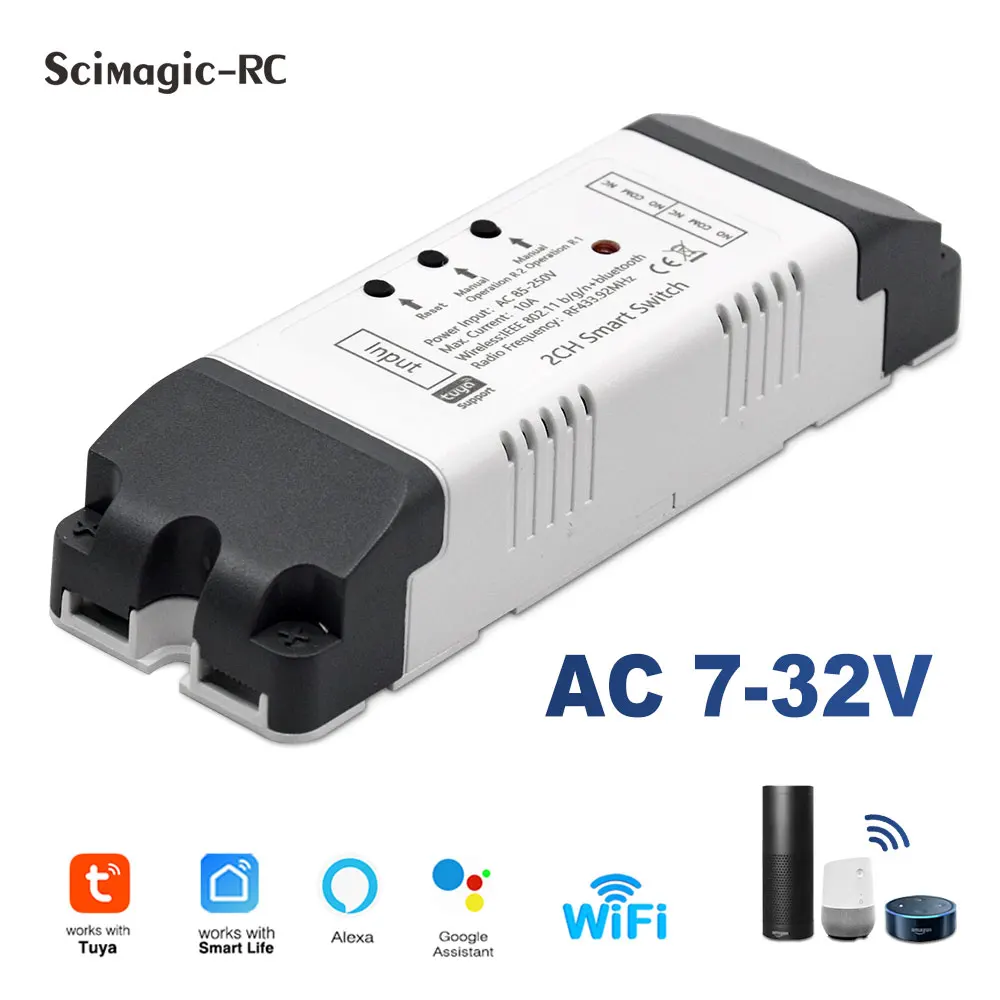

2CH Tuya Wifi Switch Relay Module Garage Door Opener 7V 12V 24V 110V 220V Smart Life DIY Smart Home Work With Alexa Google Home
Note before Order, please test compatibility
Please check if your garage controller is compatible with our module.
Take a wire with both ends stripped or a straightened-out paper clip to short-circuit the wall button terminal on the opener (I marked with red color). If the garage door opens or closes, it can work with our smart controller.
Garage door opener controller features:
WiFi Smart Garage Door Controller and Garage Open Close Monitor Compatible With Alexa Echo , Google Home voice control No Hub Require
REMOTE MONITORING: You can open or close the door by the APP. You can check the garage door open or closed state in real time. You can authorize multiple people to access your garage.
EASY TO USE: Instantly control the garage door by tapping the EweLink app on your smartphone. Just connect the smart opener to the 2.4G WiFi network.
VOICE CONTROL: You can activate your garage door opener by placing a voice command to your Alexa or Google Assistant device or driving near the garage door
WIDE COMPATIBILITY: You can only use one controller per garage door opener. Compatible with most general garage door openers.Please check the our list.
TIMER FUNCTION: You can set schedules to open and close your garage door. Quick & easy installation as well without the need of a professional. No Hidden Mon
COUNTDONW FUNCTION: You can set the countdown time to close or open the garage door.

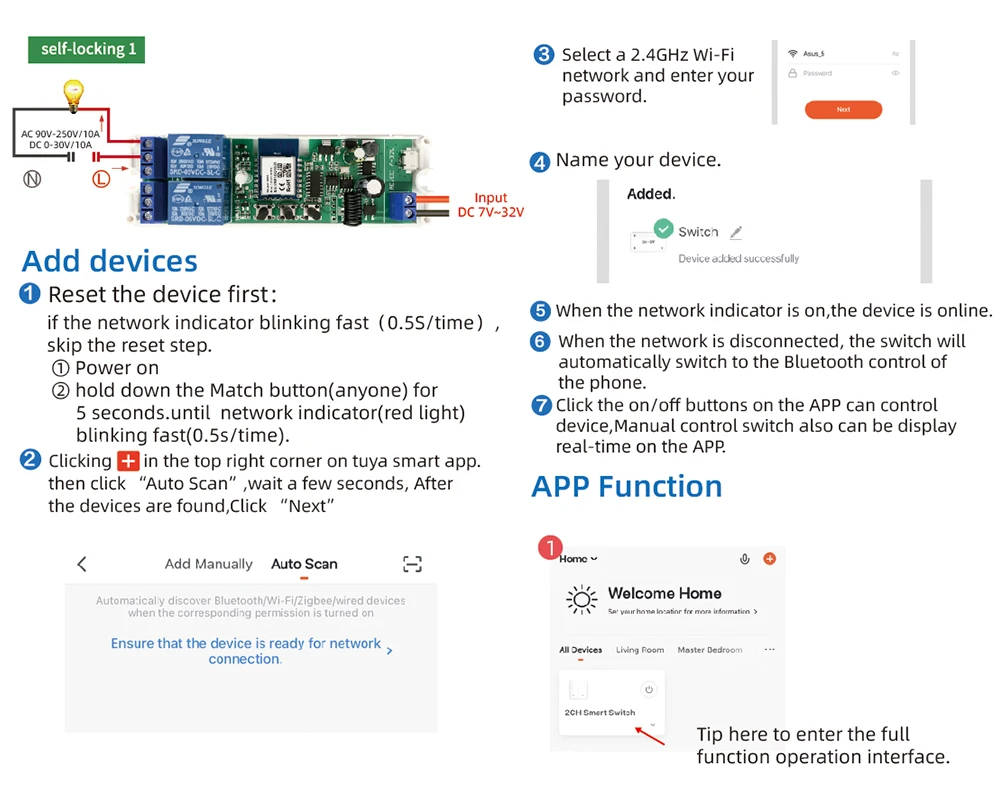

EASY ADD DEVICE:
1.The garage door will be activated when added successfully (when the blue LED light stop blinking), so keep your door closed first.
Power up the garage, and the ren light and blue light flash alternatively.
2. Launch "Tuya/Smart Life"APP. Tap the icon '+' on the top right corner.
3. Select the "All Devices", then select the "Wi-Fi Connector" type.
4. Tap "Confirm indicator rapidly blink"
5. Input the correct 2.4G Wi-Fi passwords. Then, tap confirm.
6.It will auto-connect with the device. Once the process is completed,it will prompt you that you can rename the device. Enter a new name and press'Save'.

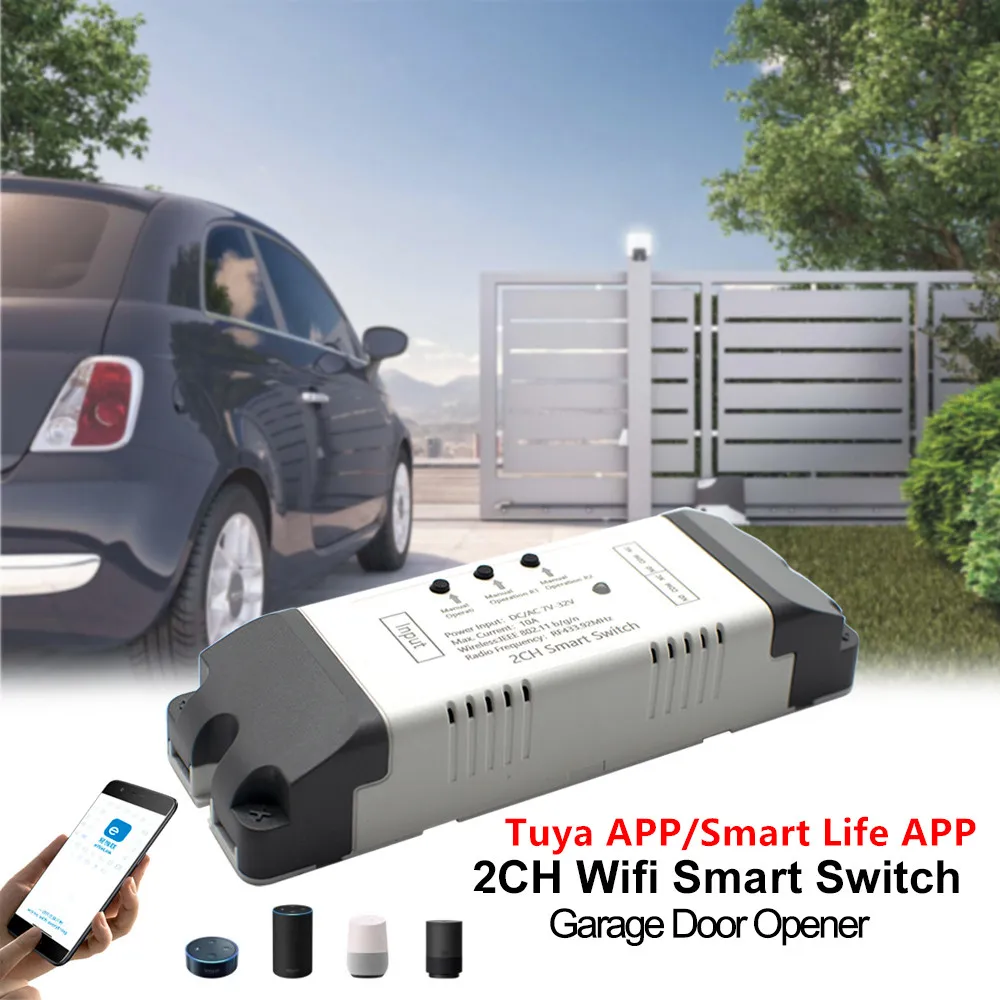

Smart Wifi Garage Door Opener Controller
Just one of this Garge door opener controller to make the garage smart,without any change , to open and close the garage door by phone ,by schedules ,by voice (work with alexa & google home)etc.
Tuya/Smart Life APP Control
Availavle in google & IOS
Schedules
Auto open or close the garage with your schedules or countdown. Automatically detects the status of the garage door more safer without false running.
Countdown
You can ask the Courier put the package in your Garage with the countdown function , and the Garage door will auto closed after the time , The smart Garage door open/close state detector function will help you ensure the Garage door open/close as your set.
Share Device With Your Family
After the family member registering a Tuya account, You can authorize device control to familys by "share device" in the APP
Garage Door Open/Close APP Message push & History
Garage Door Open/Close APP Message push & History
Has many uses
DC/AC Motor,Access Control,Garage door,Garden door,Computer,Bulb and Other devices that need inching (jog),Self-locking and interlock funtion.
Features:

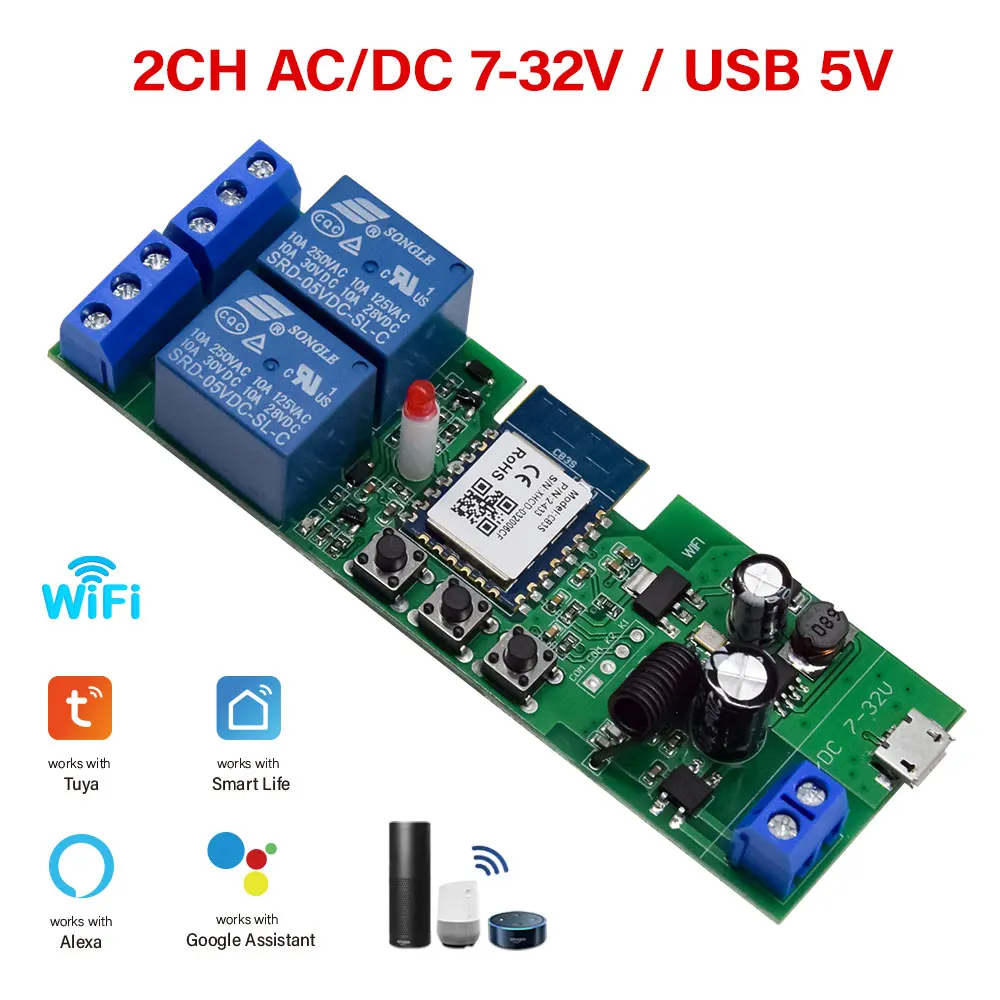

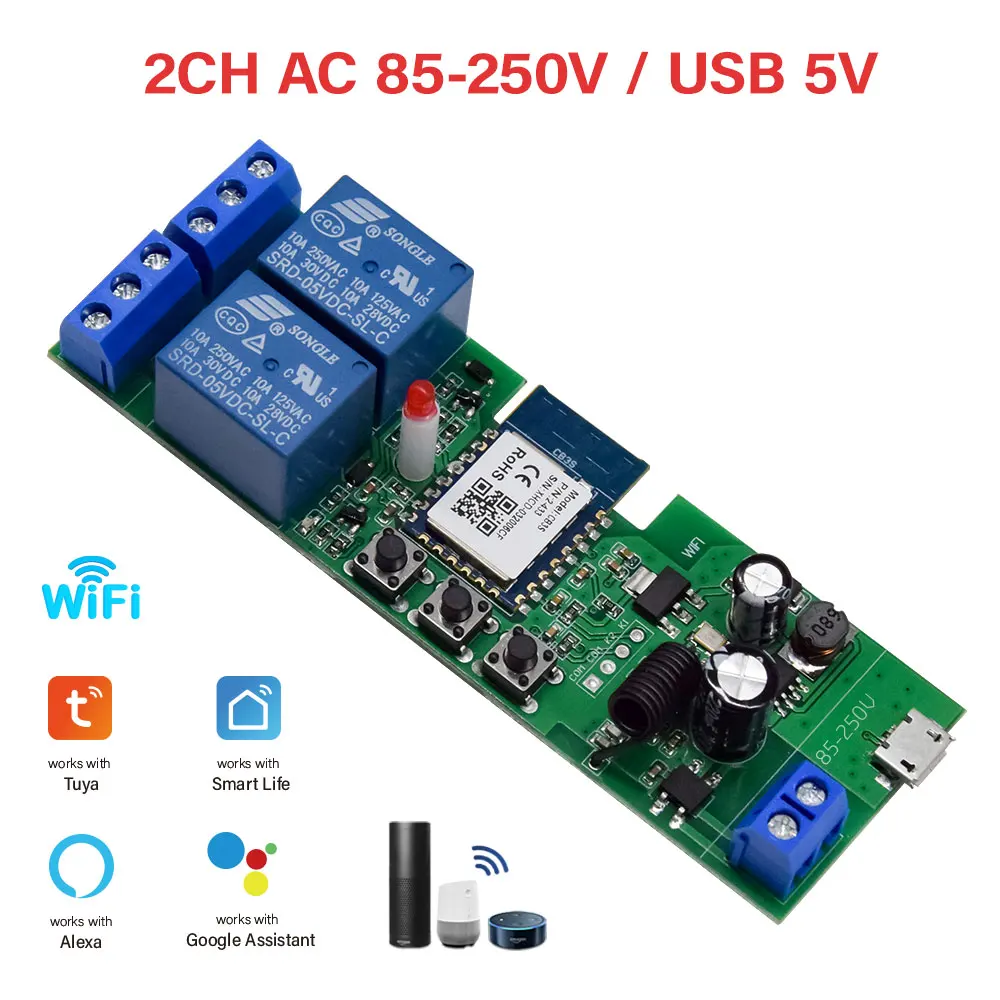

Input voltage : DC/AC 7-32V , 85-250V Micro USB 5V input.
Max current : 2200W/10A.
Cutover current≤ 10A
Output: No output ( Dry contact switch)
Working Temperature: -20 to 70degree
Working Humidity: 40% to 80% RH
WIFI Standard:2.4GHZ, 802.11 b/g/n(don't support 5G)
Size:120*38*25mm
APP:Tuya/Smart Life

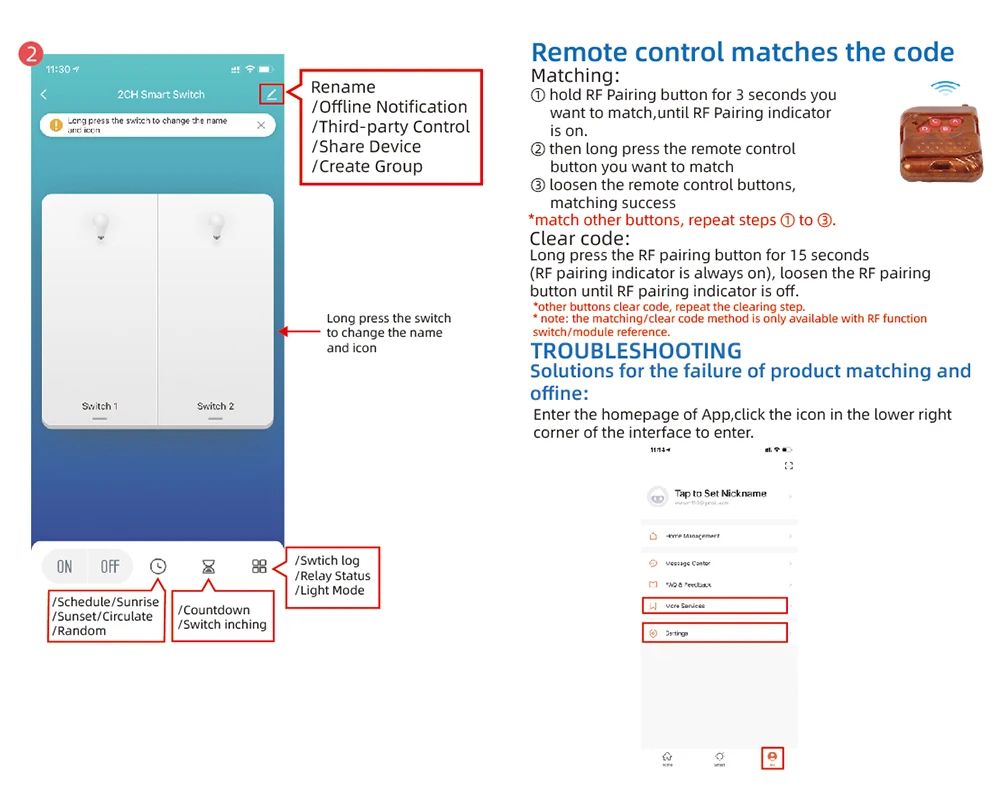

Remote :1527 RF 433MHz Learning Code Remote Control (Remote control not included)
Product Selling:
1.Supports WiFi network,remotely turn on or off connected appliance/light;
2.Supports status tracking: device status timely provided to the "Tuya/Smart Life";
3.Supports max 8 enabled scheduled/countdown/loop timers for each device;
4.Supports numerous WiFi smart switches on one smart phone;
5.Works with Alexa Echo;
6.Works with Google Home and Google Nest.

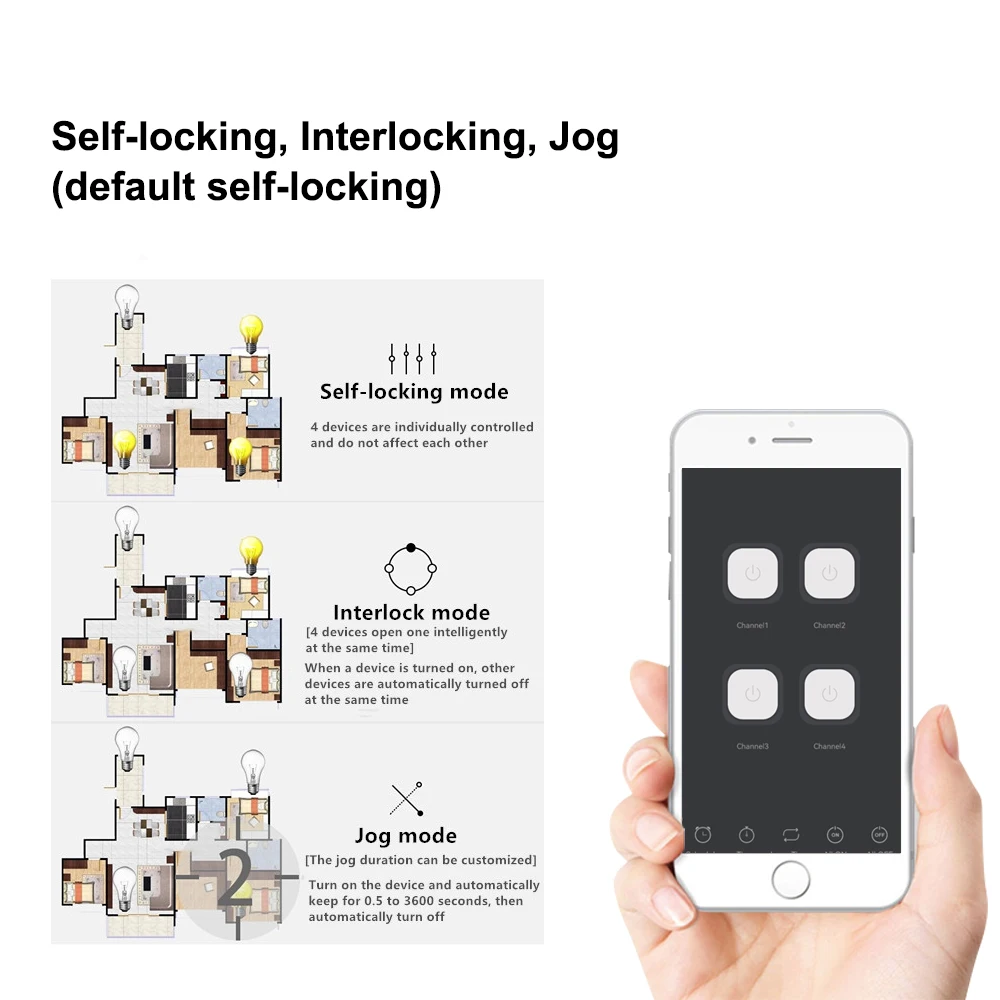

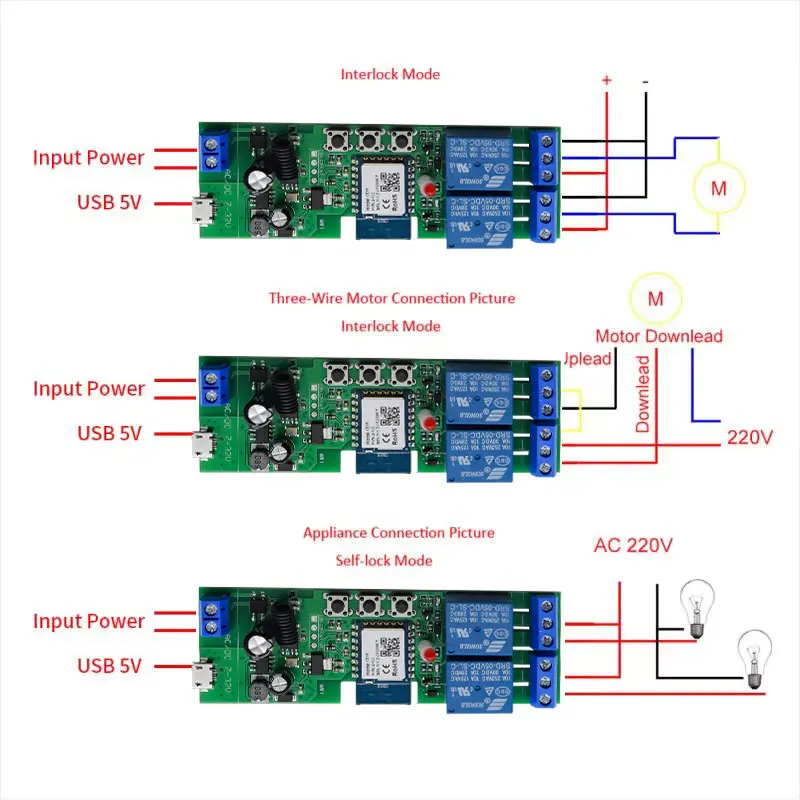

Working mode:
1.Inching mode : Switch on channel 1 , channel 1 will be automatically closed after 2-3600s. Channel 2 is same to the channel 1 .
2.Self-locking : like normal 2 channle switch , each channel could be switched on/off seperately .
3.Inter lock : Switch on any 1 channel , the other channels will be switched off automatically .
Timer & Schedule
Set up timing schedules to turn on/off lights
Share Control
Share control of your home appliances to your family or friends so that they can also control the devices remotely
APP Control

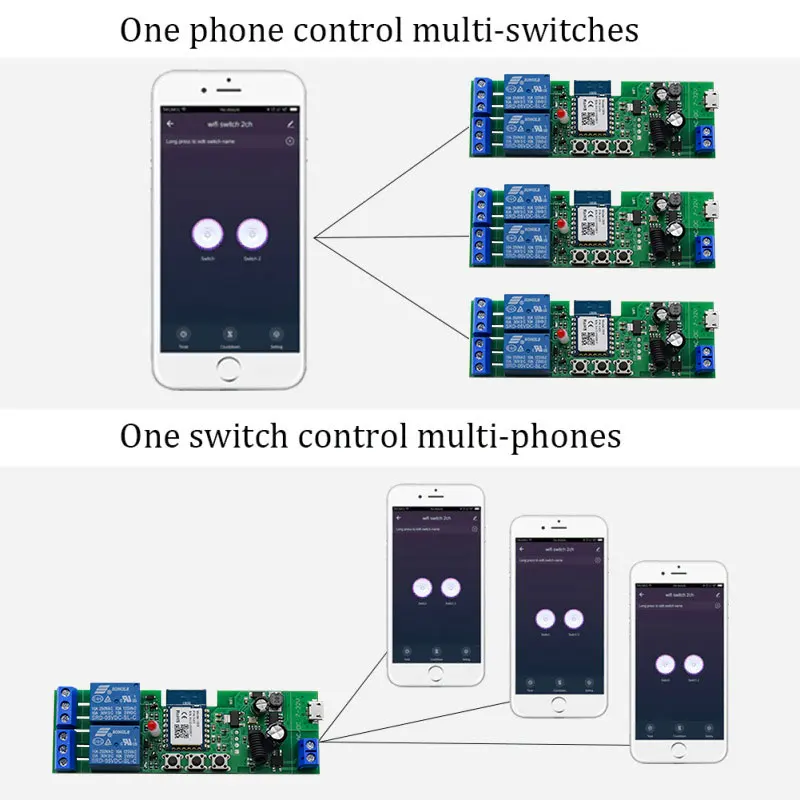

1.One APP can control multiple device
2.One device can be controled by multiple phone.
Voice Control
Compatible with Google assistant & Alexa
