304 SS Stainless Steel Elbow Double Ferrule Tube Pipe Fittings Connector 6-12mm Pipe OD to 1/8" 1/4" 3/8" 1/2" BSPT Male Thread

Manufacturing standards: GB3733.1 ~ 3765-3765
Applicable medium: oil, water, gas and other non corrosive or corrosive medium
Materials: 304
Piping: Copper, stainless steel pipe
Operating Pressure: 163.15 kgf/cm2 (16Mpa)
Operating Temperature Range: <=450 C

Pipe outside diameters(OD) :1/8"(3.17mm) 1/4(6.35mm) 3/8(9.53) 1/2(12.7mm) 3mm 4mm 6mm 8mm 10mm 12mm 14mm 16mm

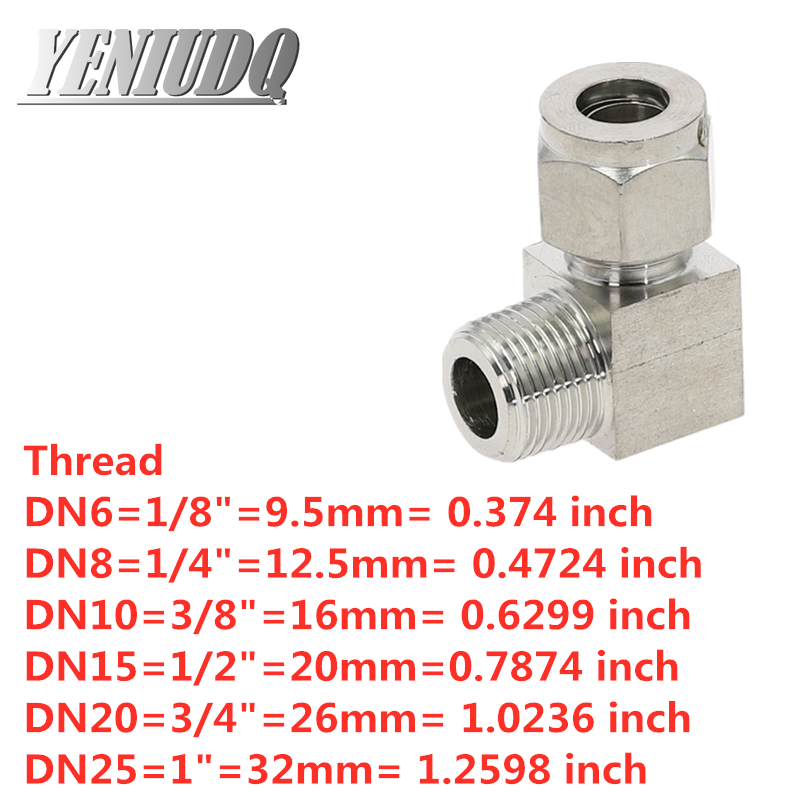

Thread sizes: 1/8"(9.7mm) 1/4"(12mm) 3/8"(16mm) 1/2"(20mm)

Package Content: 1pcs Fittings
