Panda Knomi for A1,P1,X1 Installation Guide

Panda Knomi Compatibility: For Bambu Lab A1/P1/X1 Series

Panda Knomi Github：https://github.com/bigtreetech/PandaKnomi

wikihttps://bttwiki.com/PandaKnomi.html

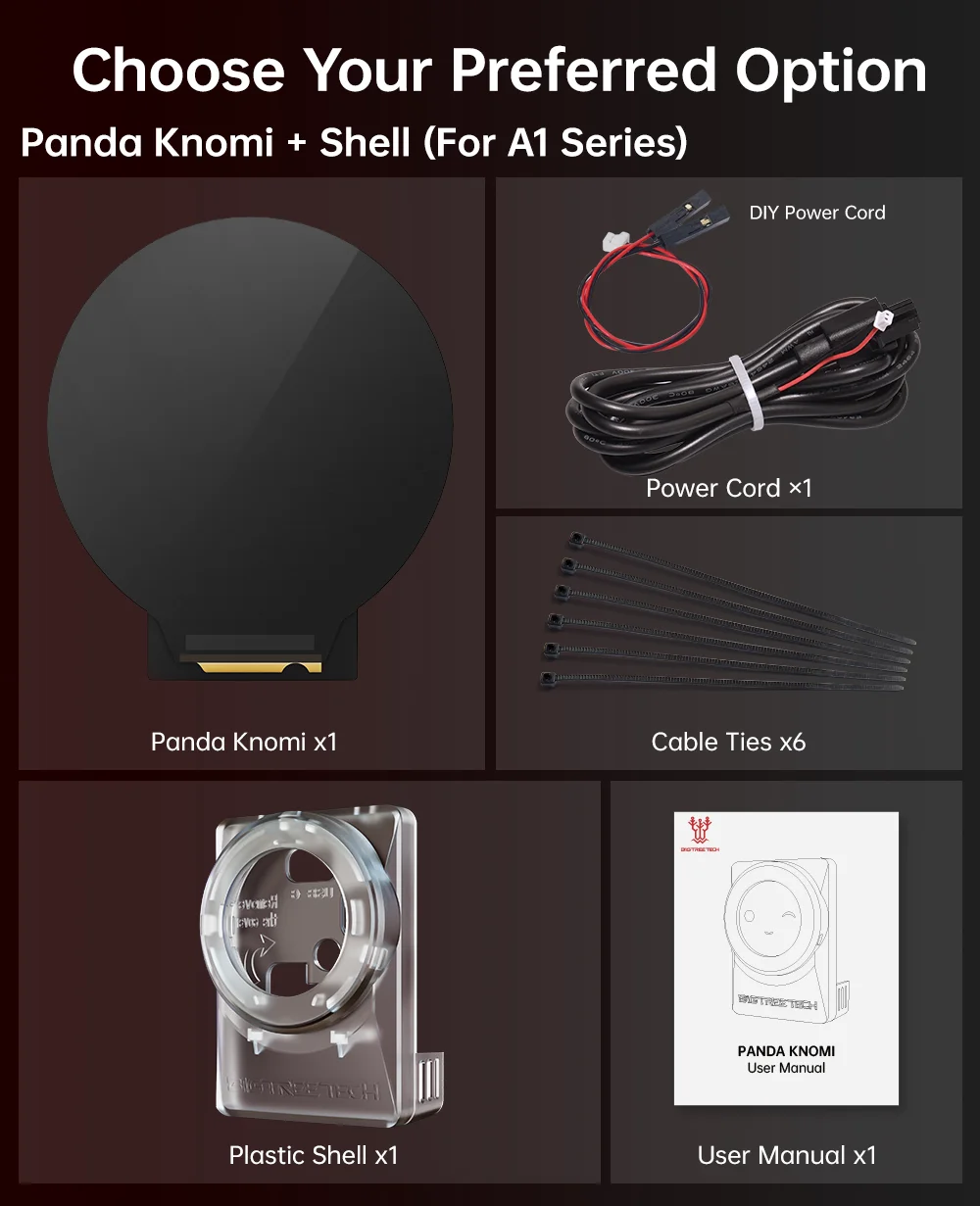

Which Panda Knomi option is right for me?

A1 Series with LED strip and AMS already using using both ports:

- Panda Knomi + Shell (For A1 Series)

+ Panda Branch Only

A1 Series with at least one free four pin port:

- Panda Knomi + Shell (For A1 Series)

P1 users, not using Panda Touch:

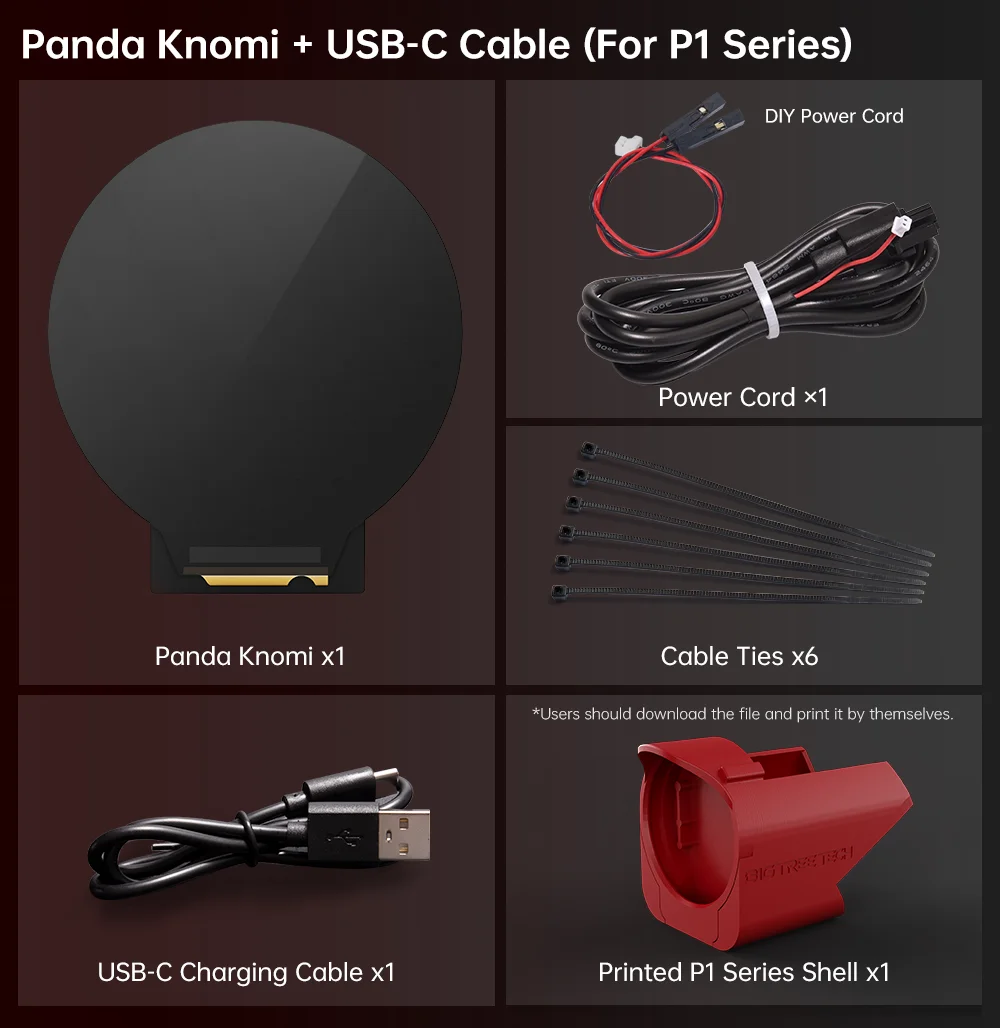

- Panda Knomi + USB-C Cable (For P1 Series)

P1 users, using AMS and Panda Touch

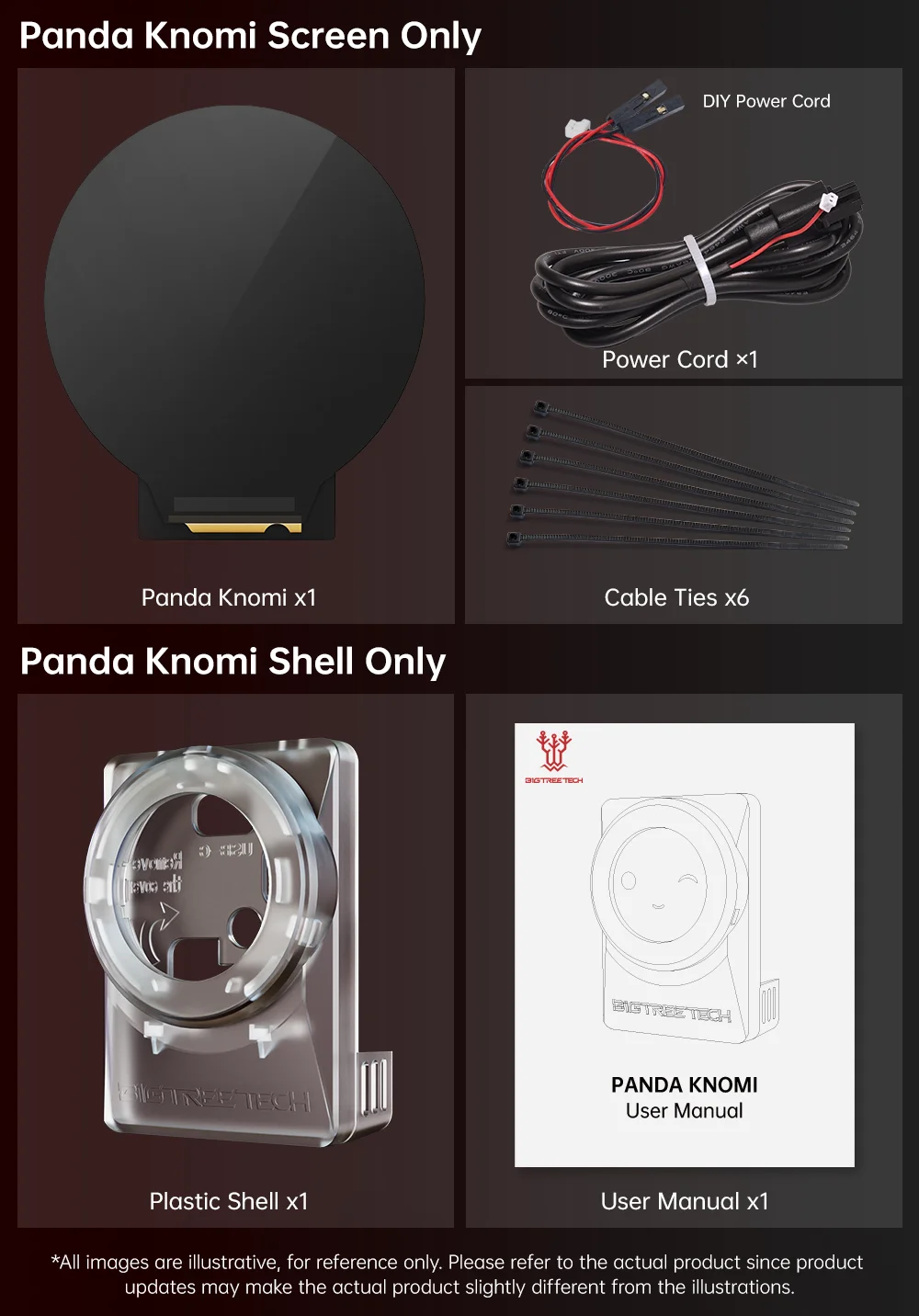

- Panda Knomi Screen Only

+ Panda Branch Only

P1 users not using AMS but using Panda Touch:

- Panda Knomi Screen Only

X1 users, using AMS

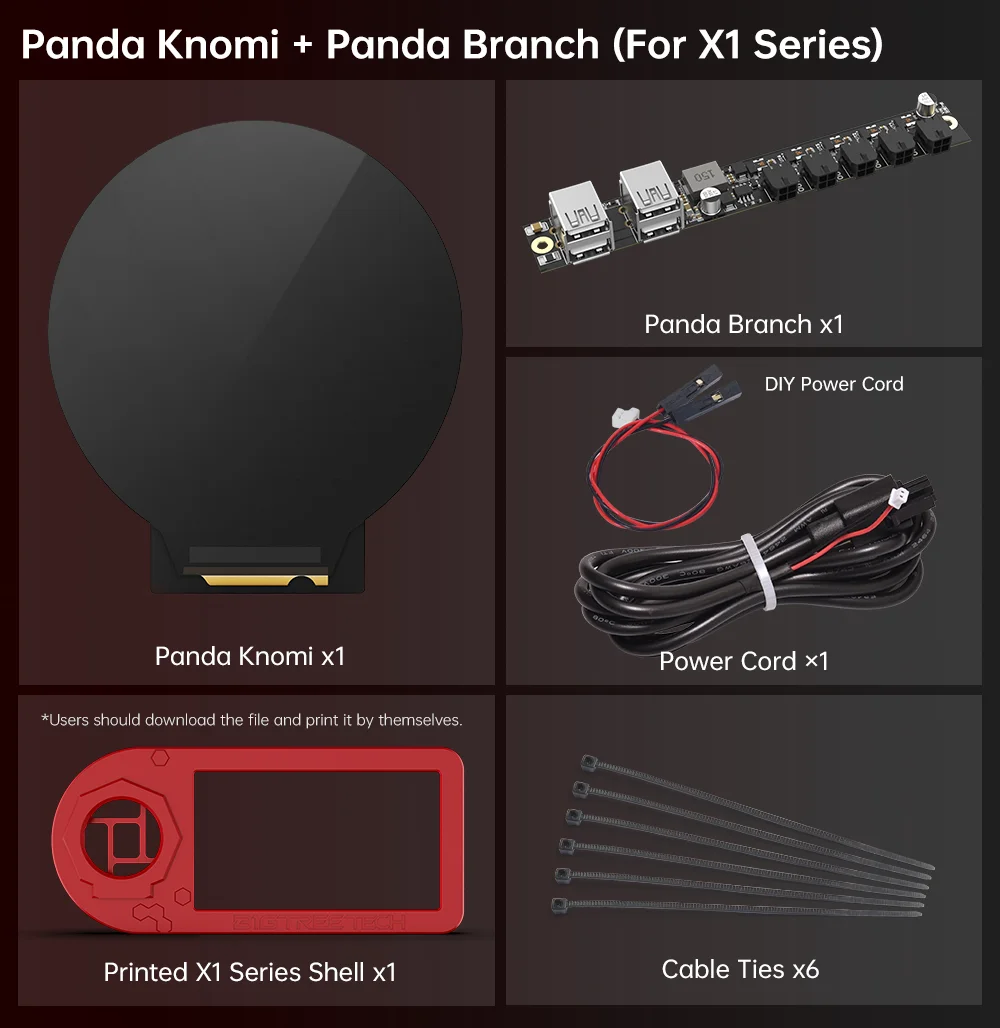

- Panda Knomi + Panda Branch (For X1 Series)

X1 users, no AMS

- Panda Knomi Screen OnlyWhich Panda Knomi option is right for me?

A1 Series with LED strip and AMS already using using both ports:

- Panda Knomi + Shell (For A1 Series)

+ Panda Branch Only

A1 Series with at least one free four pin port:

- Panda Knomi + Shell (For A1 Series)

P1 users, not using Panda Touch:

- Panda Knomi + USB-C Cable (For P1 Series)

P1 users, using AMS and Panda Touch

- Panda Knomi Screen Only

+ Panda Branch Only

P1 users not using AMS but using Panda Touch:

- Panda Knomi Screen Only

X1 users, using AMS

- Panda Knomi + Panda Branch (For X1 Series)

X1 users, no AMS

- Panda Knomi Screen Only

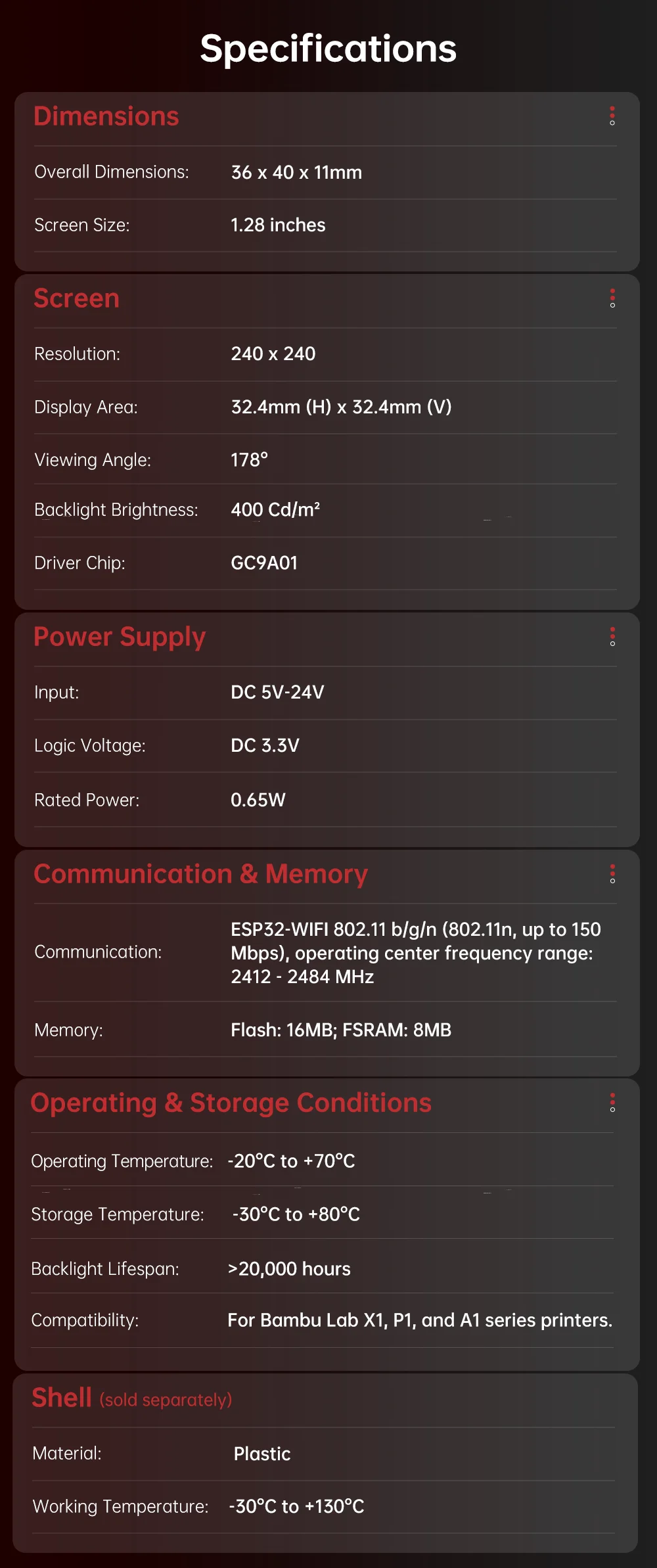

Dimensions

Overall Dimensions: 36mm x 40mm x 11mm

Screen Size: 1.28 inches

Screen

Resolution: 240x 240

Display Area: 32.4mm (H) x 32.4mm (V)

Viewing Angle: 178°

Backlight Brightness: 400 Cd/m²

Driver Chip: GC9A01

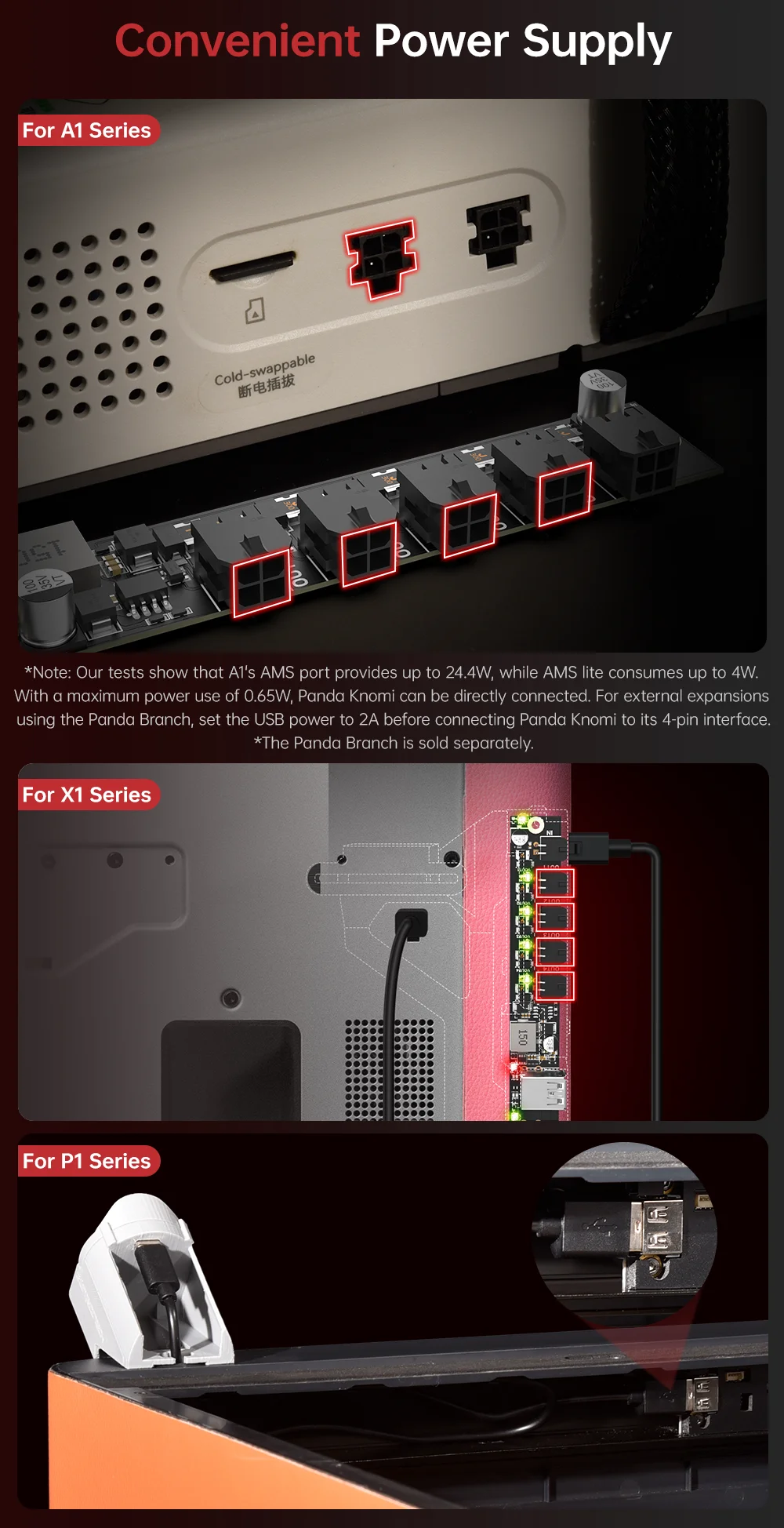

Power Supply

Input: DC 5V-24V

Logic Voltage: DC 3.3V

Rated Power: 0.65W

Communication & Memory

Communication: ESP32-WIFI 802.11 b/g/n (802.11n, up to 150 Mbps), operating center frequency range: 2412 - 2484 MHz

Memory: Flash: 16MB; FSRAM: 8MB

Operating & Storage Conditions

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

Backlight Lifespan: >20,000 hours

Compatibility: For Bambu Lab X1/P1 and A1 series printers

Shell

Material: Plastic

Working Temperature: -30°C to +130°C

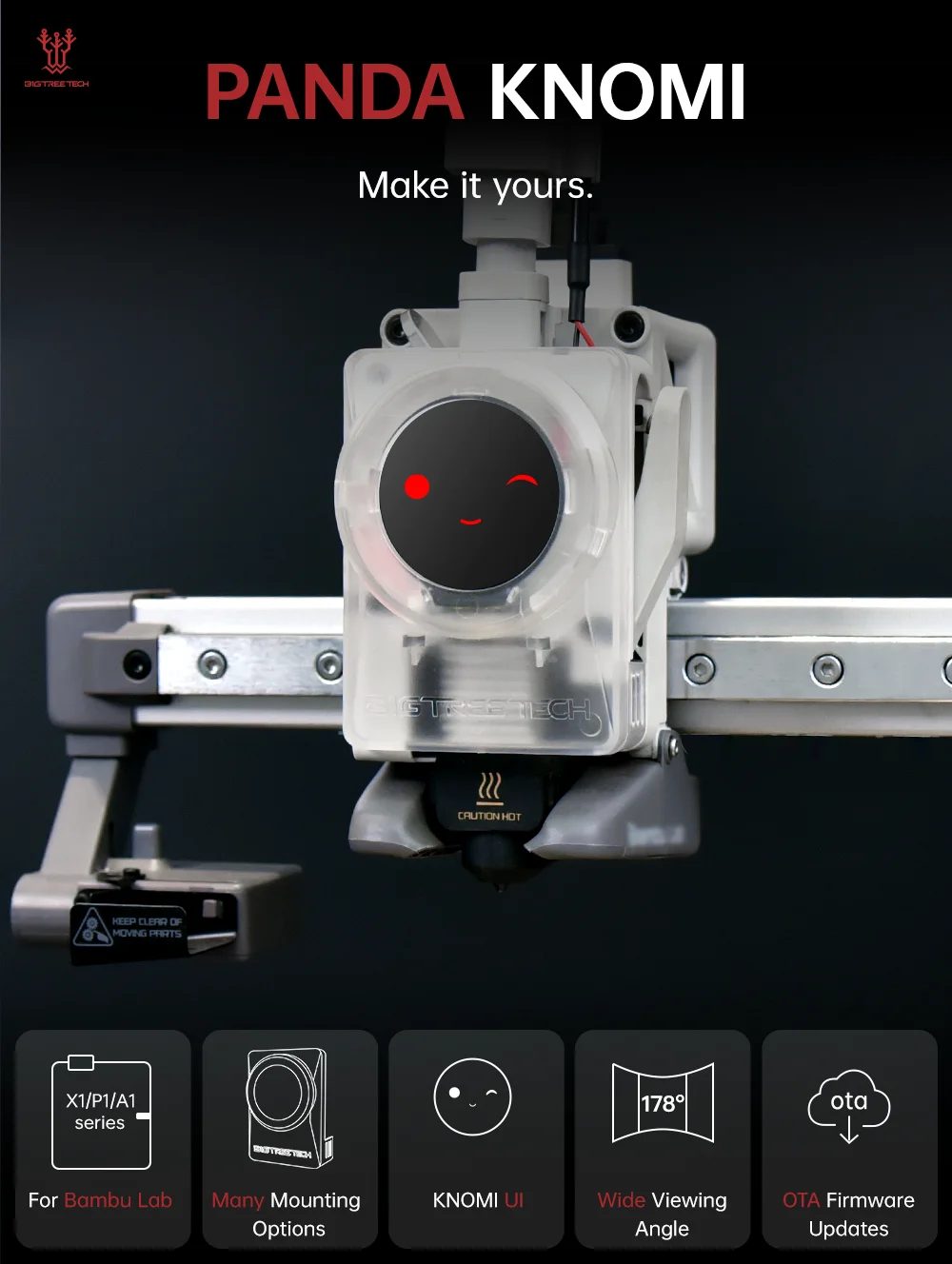

PANDA KNOMI

*A1/P1/X1 Series Compatibility

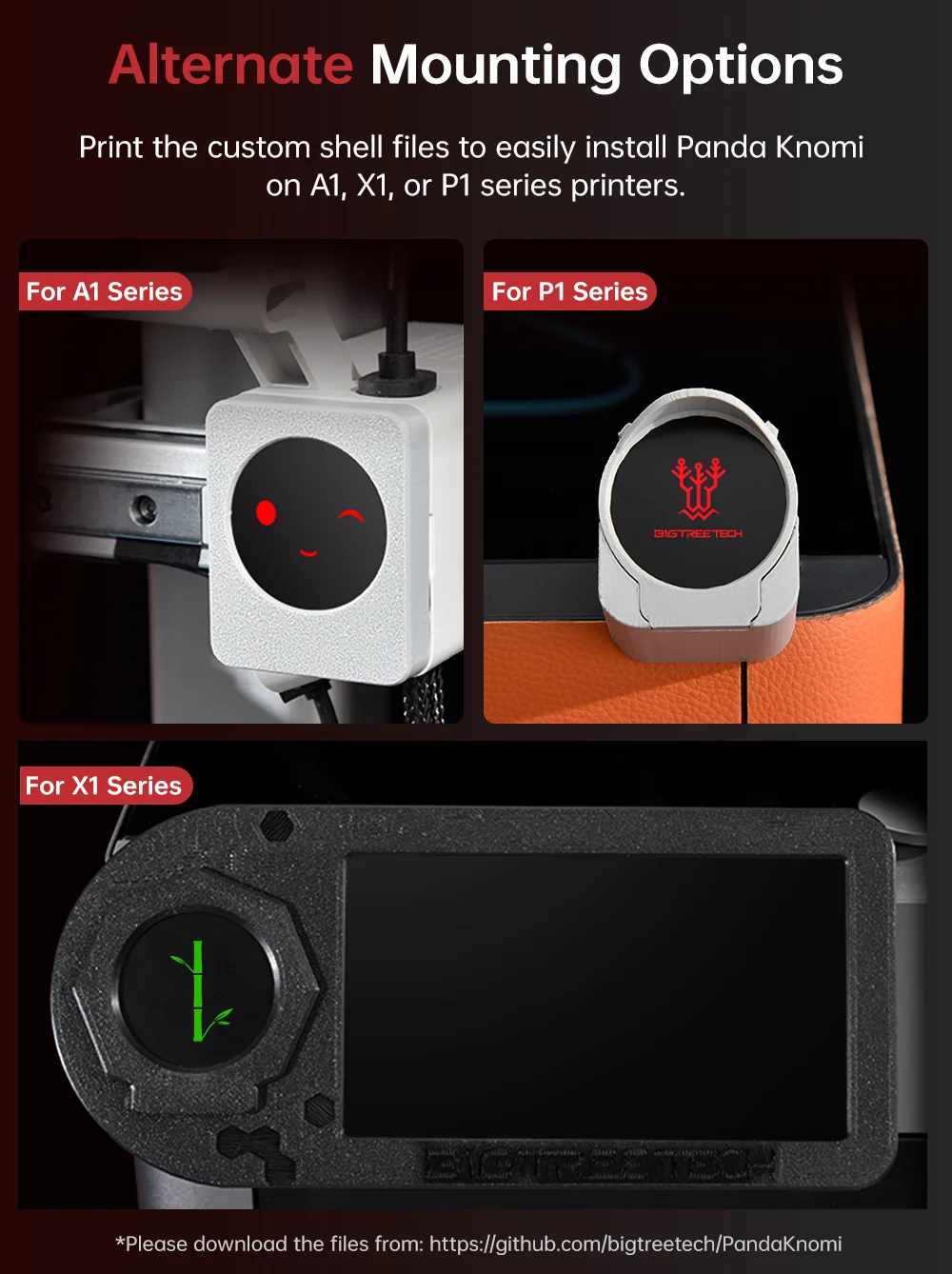

*Many Mounting Options

*KNOMI UI

*Wide Viewing Angle

*OTA Firmware Updates

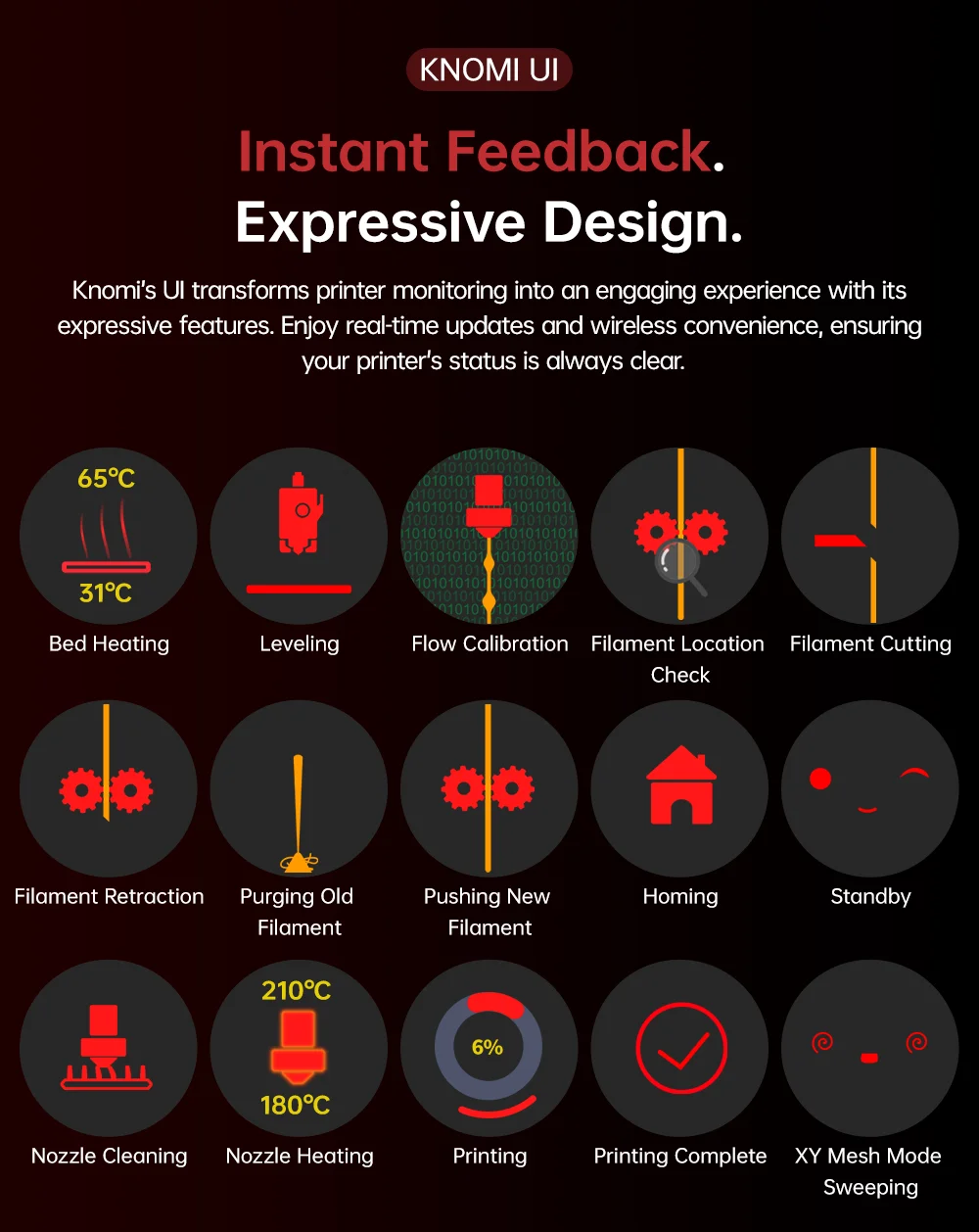

KNOMI UI

Instant Feedback. Expressive Design.

Knomi’s UI transforms printer monitoring into an engaging experience with its expressive features. Enjoy real-time updates and wireless convenience, ensuring your printer's status is always clear.

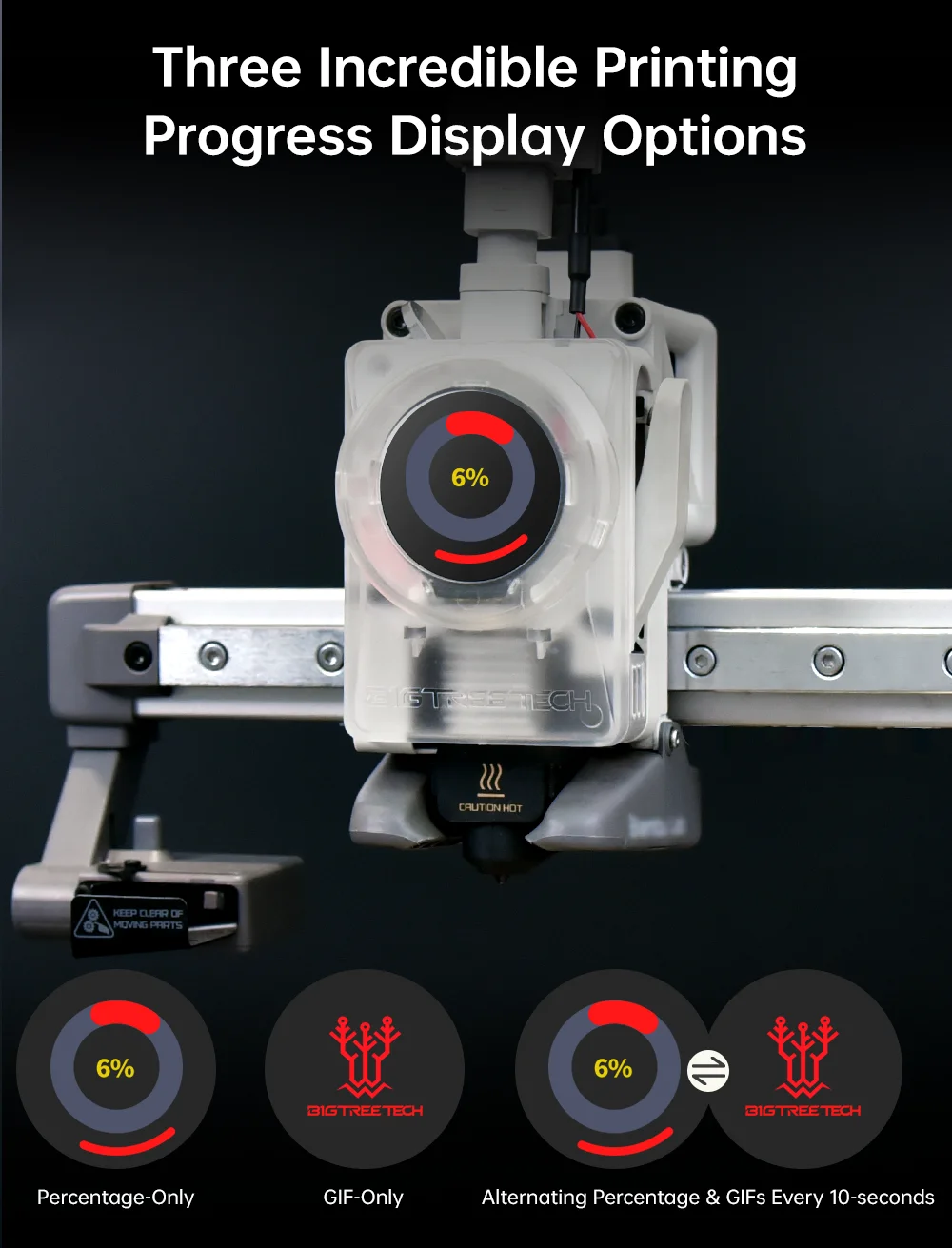

Three Incredible Printing Progress Display Options

√ Percentage-Only

√ GIF-Only

√ Alternating Percentage & GIFs Every 10-seconds

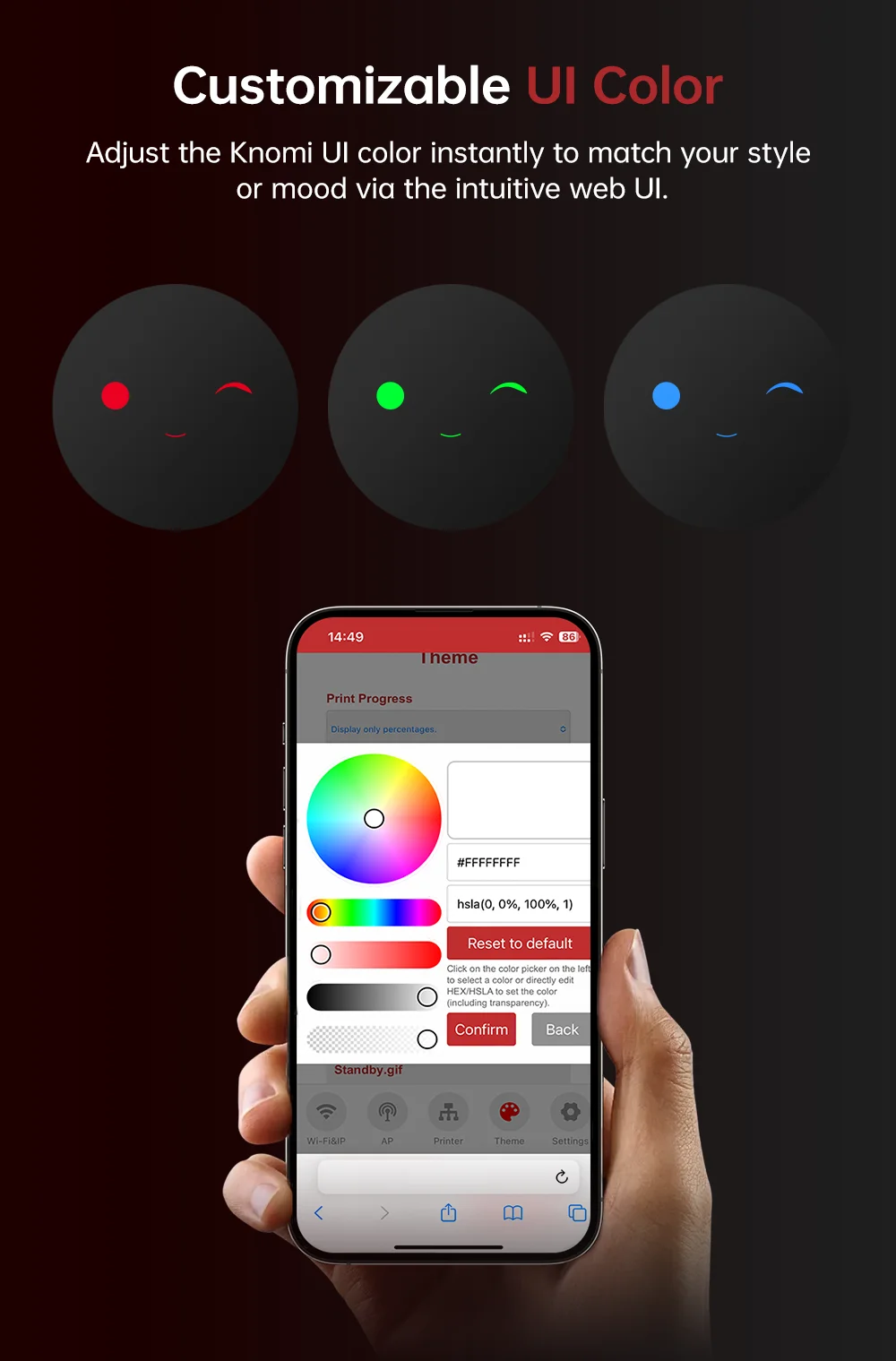

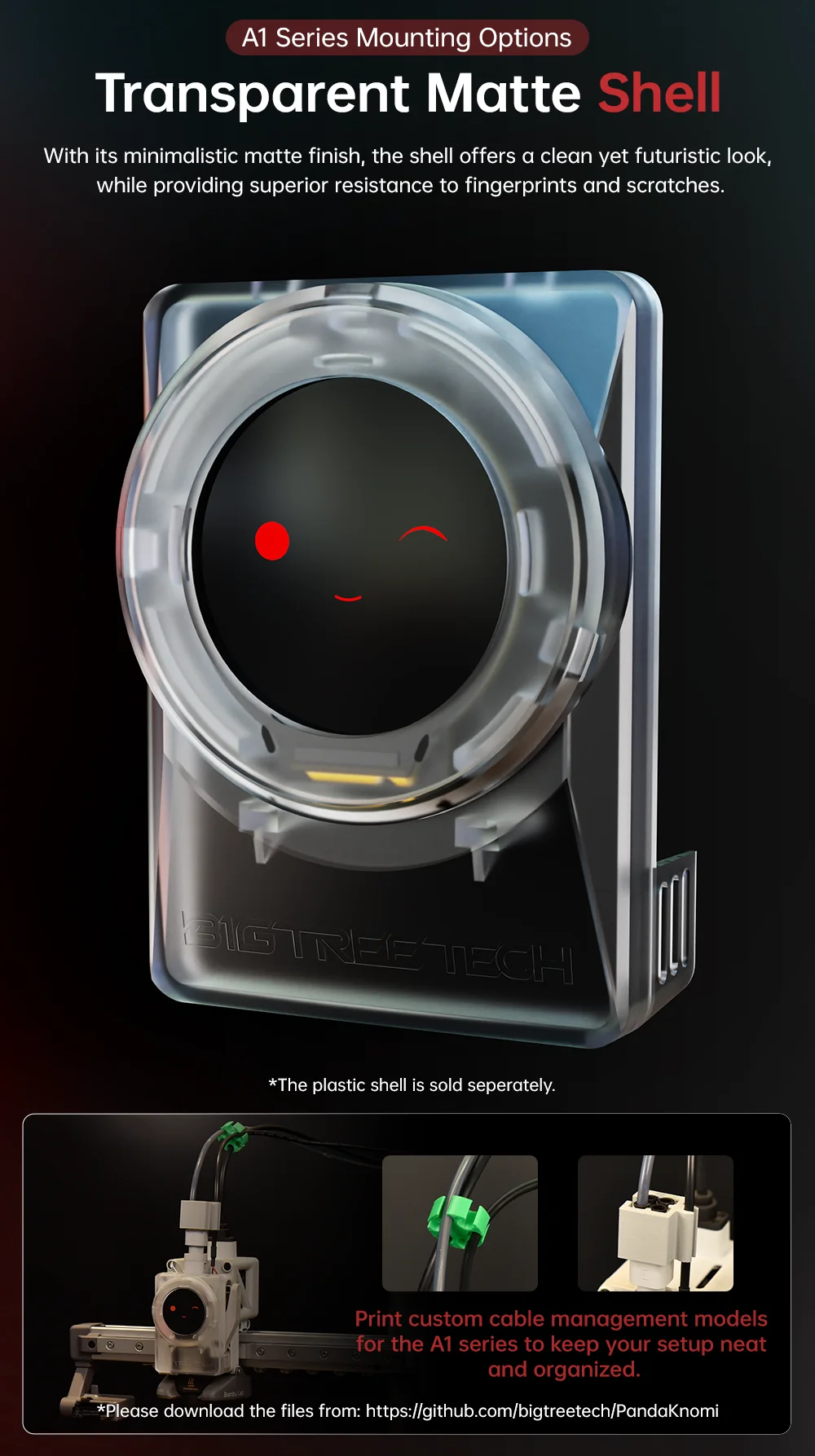

Customize UI, Animations, and Shells

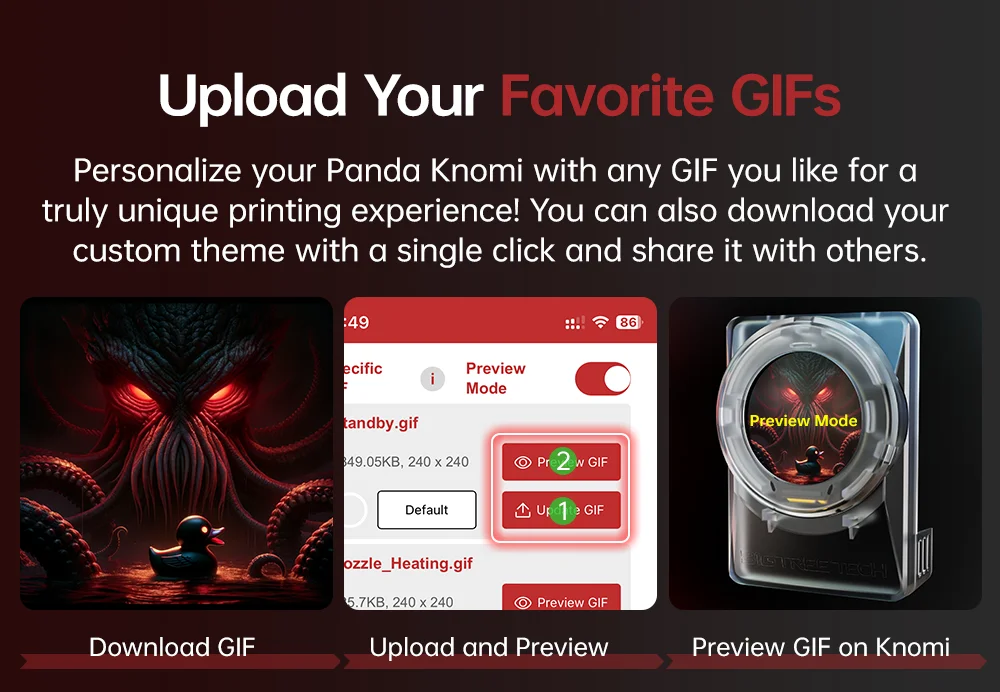

Your PANDA KNOMI is more than just a tool—it’s a canvas for your creativity.

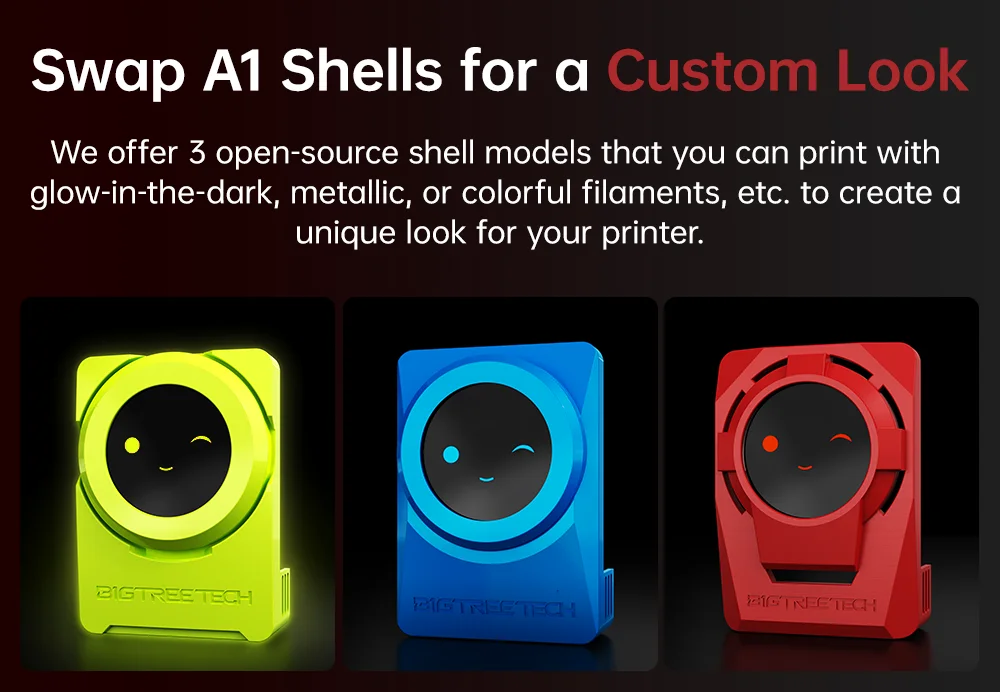

Adjust the UI colors and animation effects to your liking, and choose from three unique shell models. Transform your A1 printer into a reflection of your personal style and aesthetic.

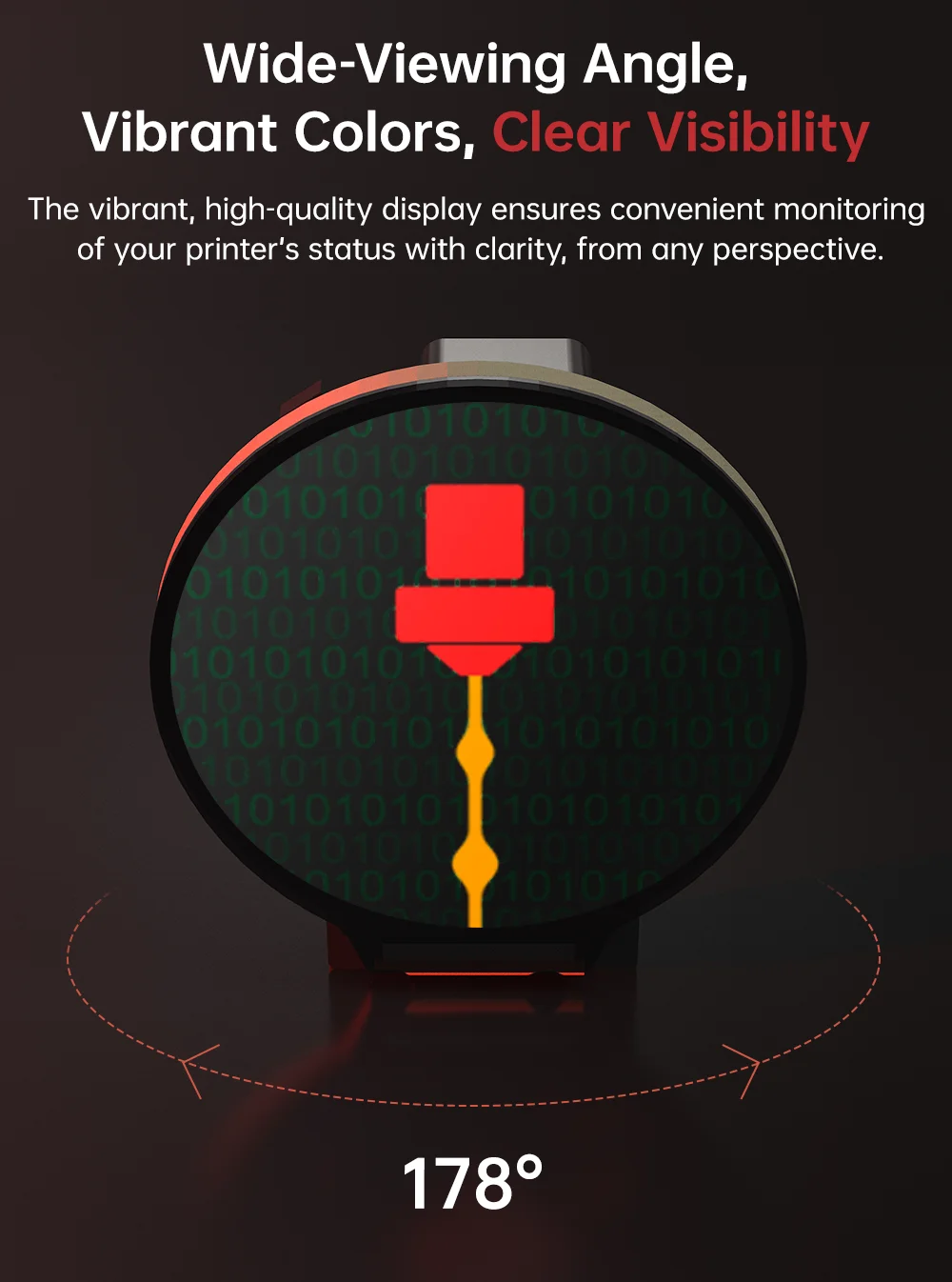

Wide-Viewing Angle,
Vibrant Colors, Clear Visibility

The vibrant, high-quality display ensures convenient monitoring of your printer’s status with clarity, from any perspective.

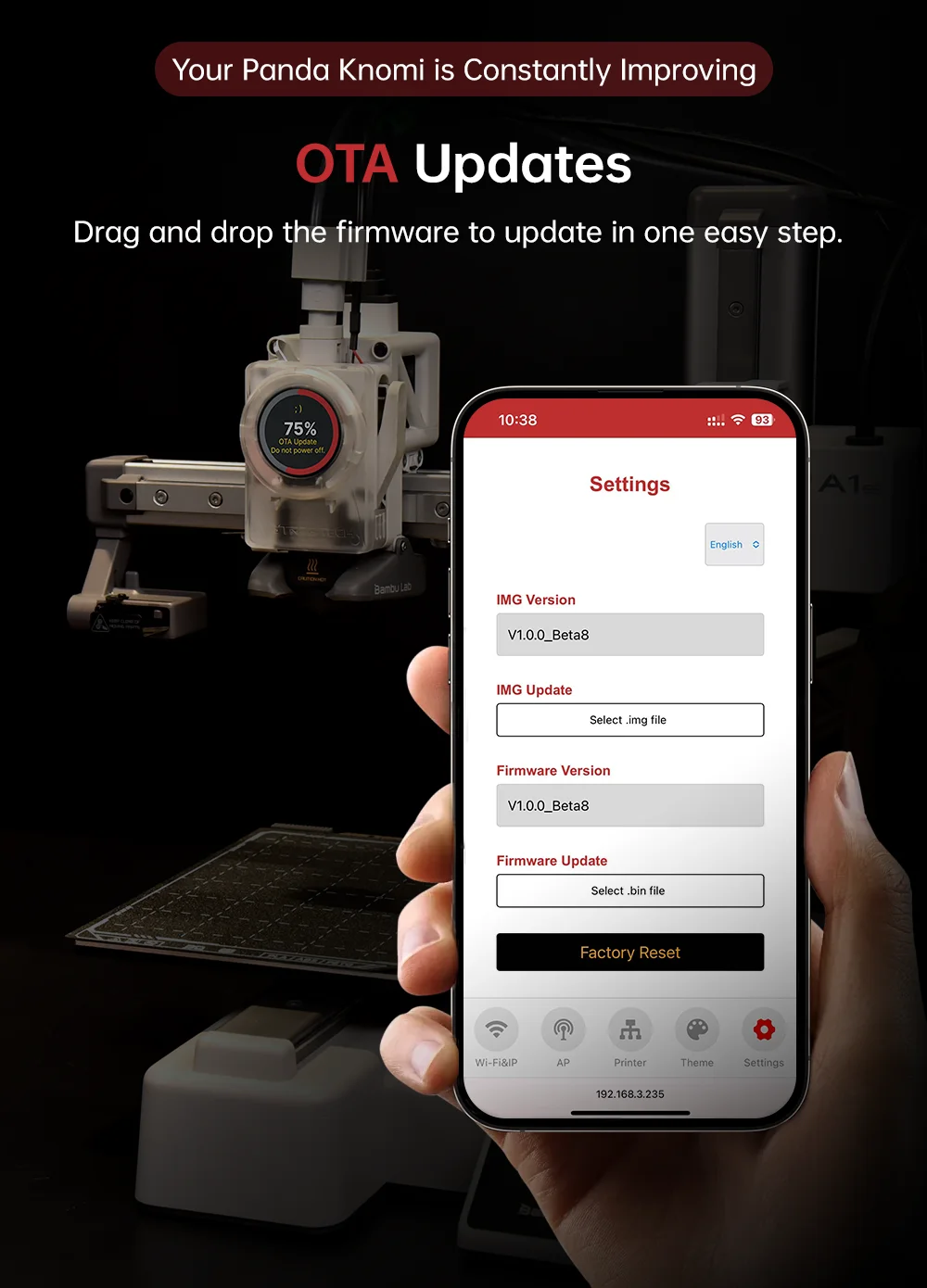

Your Panda Knomi is Constantly Improving——
OTA Firmware Updates

Drag and drop the firmware to update in one easy step.
