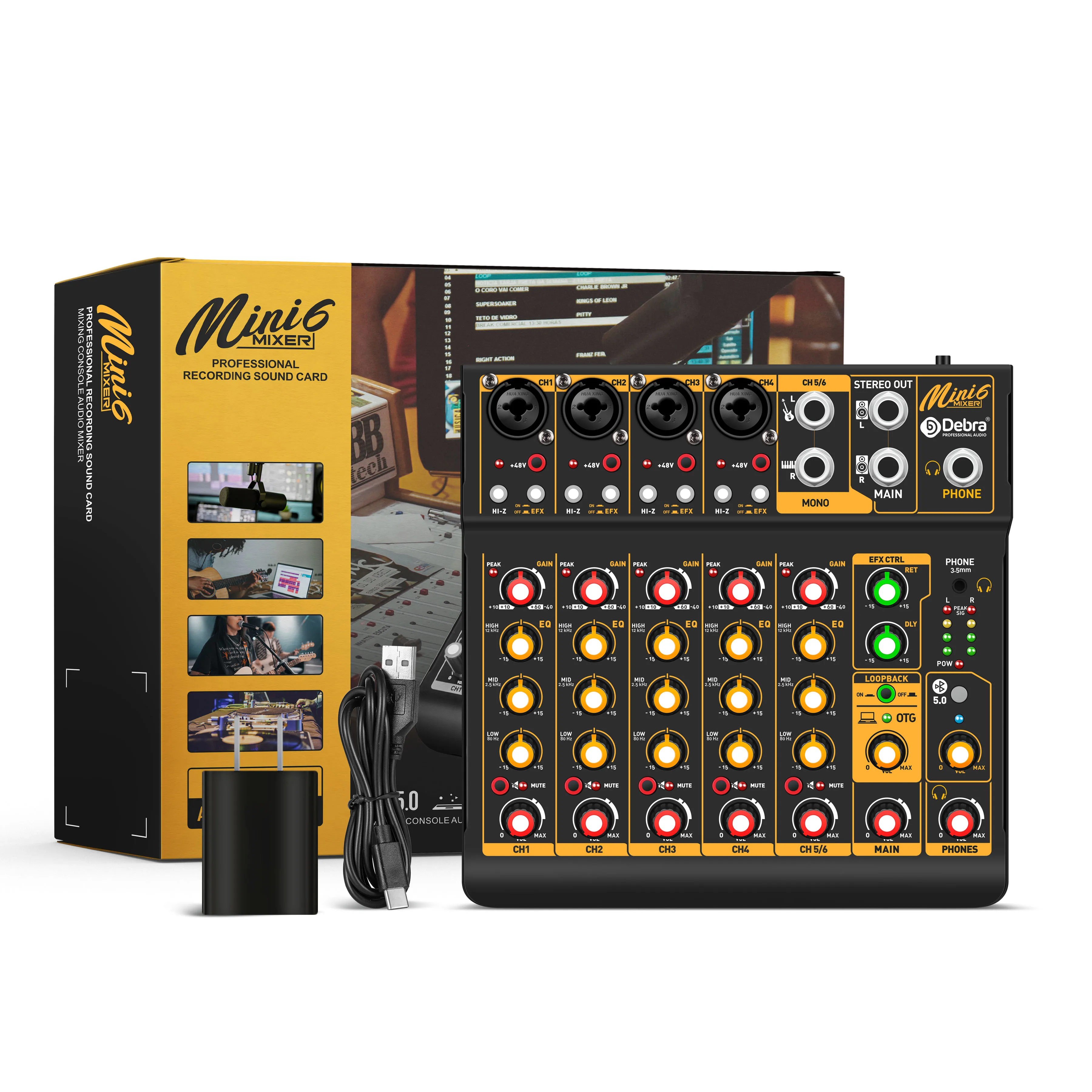

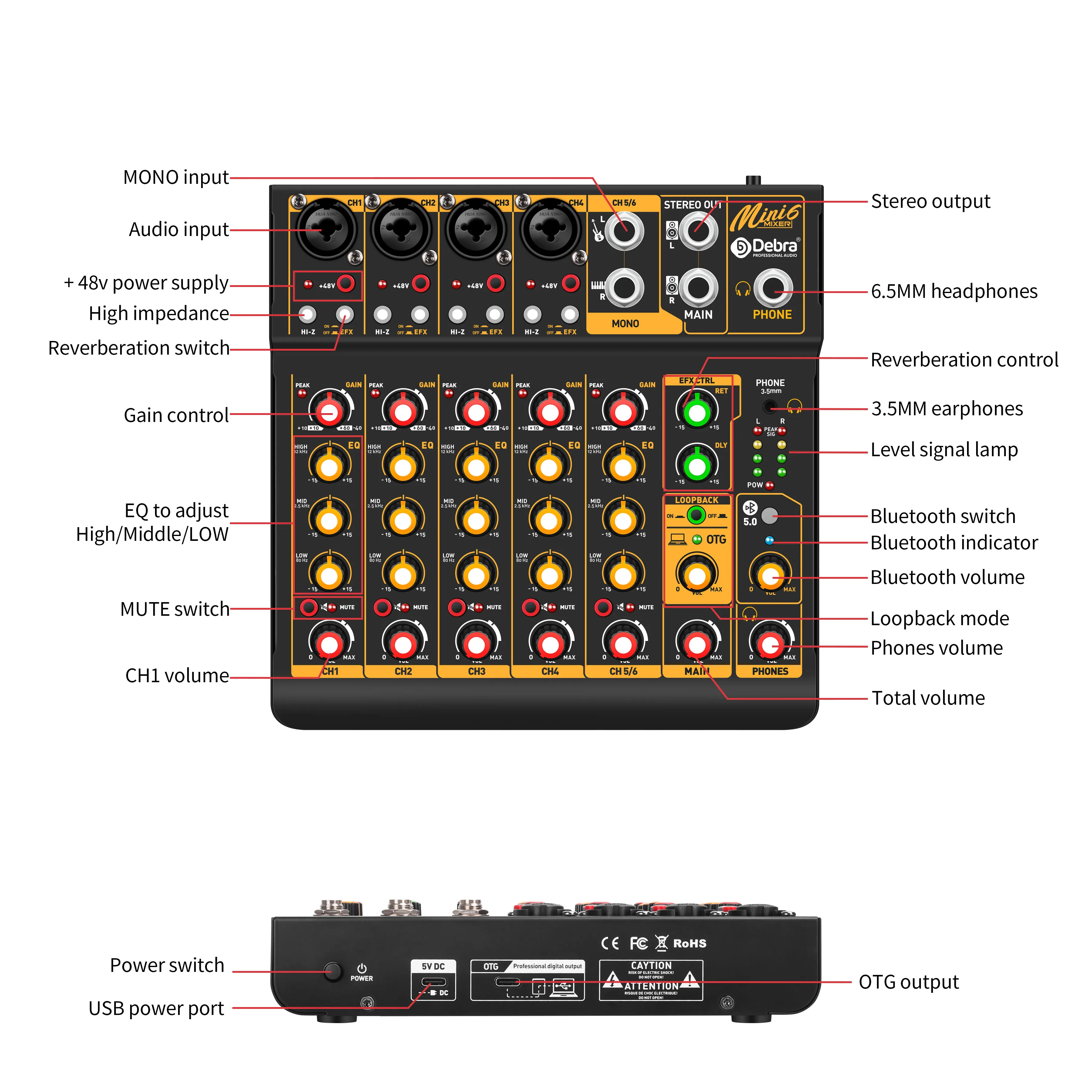

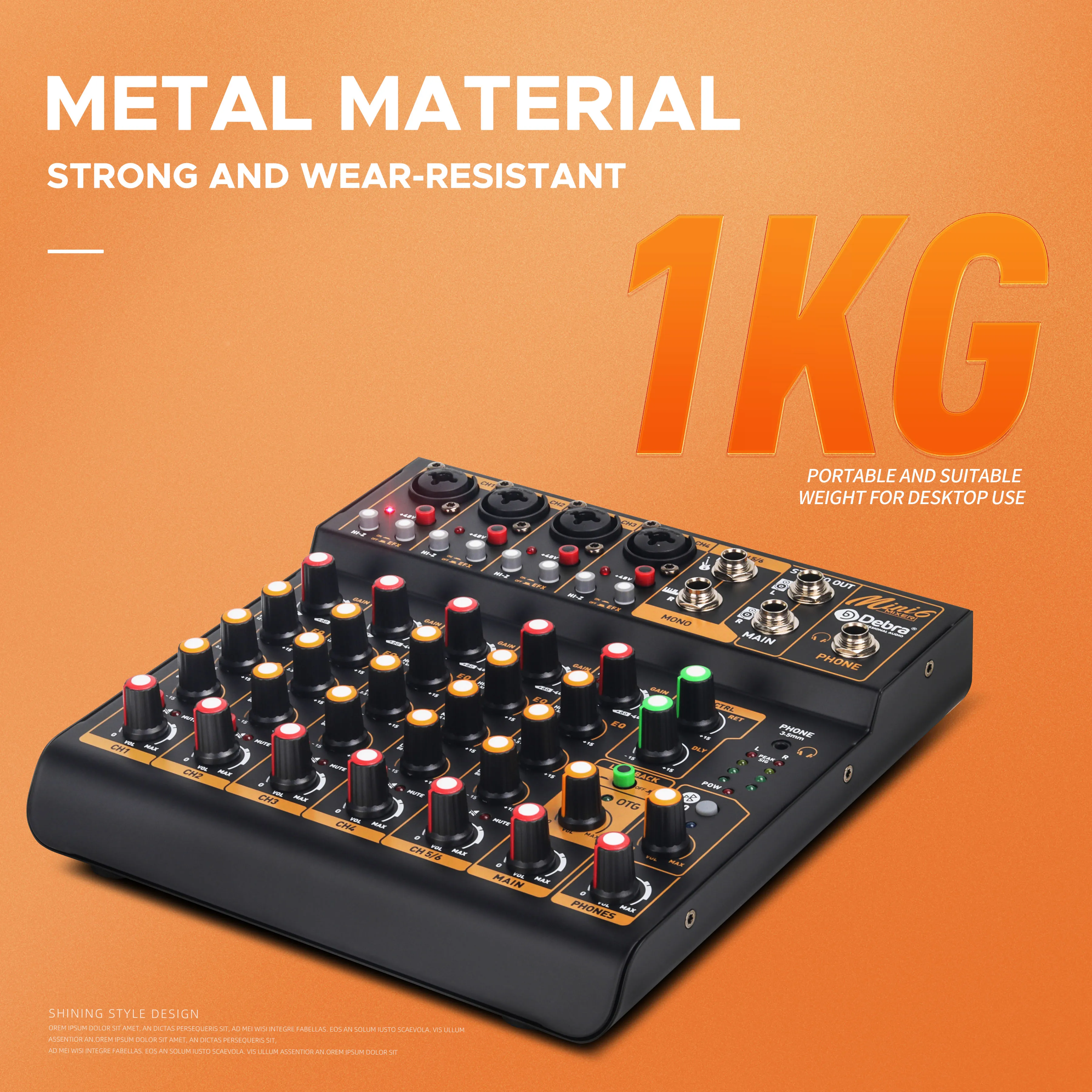

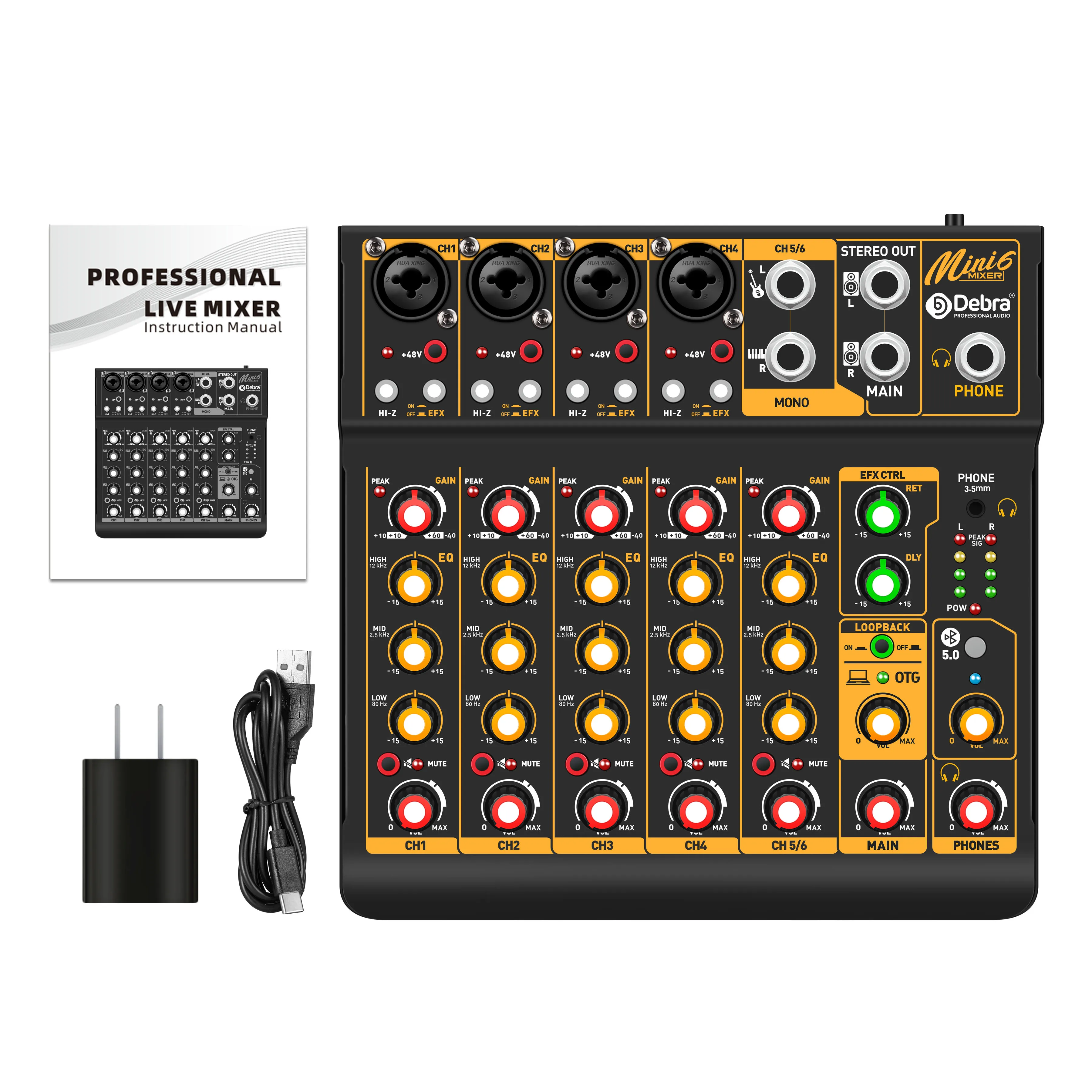

Debra OTG Metal Audio Mixer DJ Console Mini6 With Bluetooth 48V Power Delay Repaeat Effect For Sound Mixing Console PC Recording

$62.19 - $89.05
Debra OTG Metal Audio Mixer DJ Console Mini6 With Bluetooth 48V Power Delay Repaeat Effect For Sound Mixing Console PC Recording
Sale
View Details

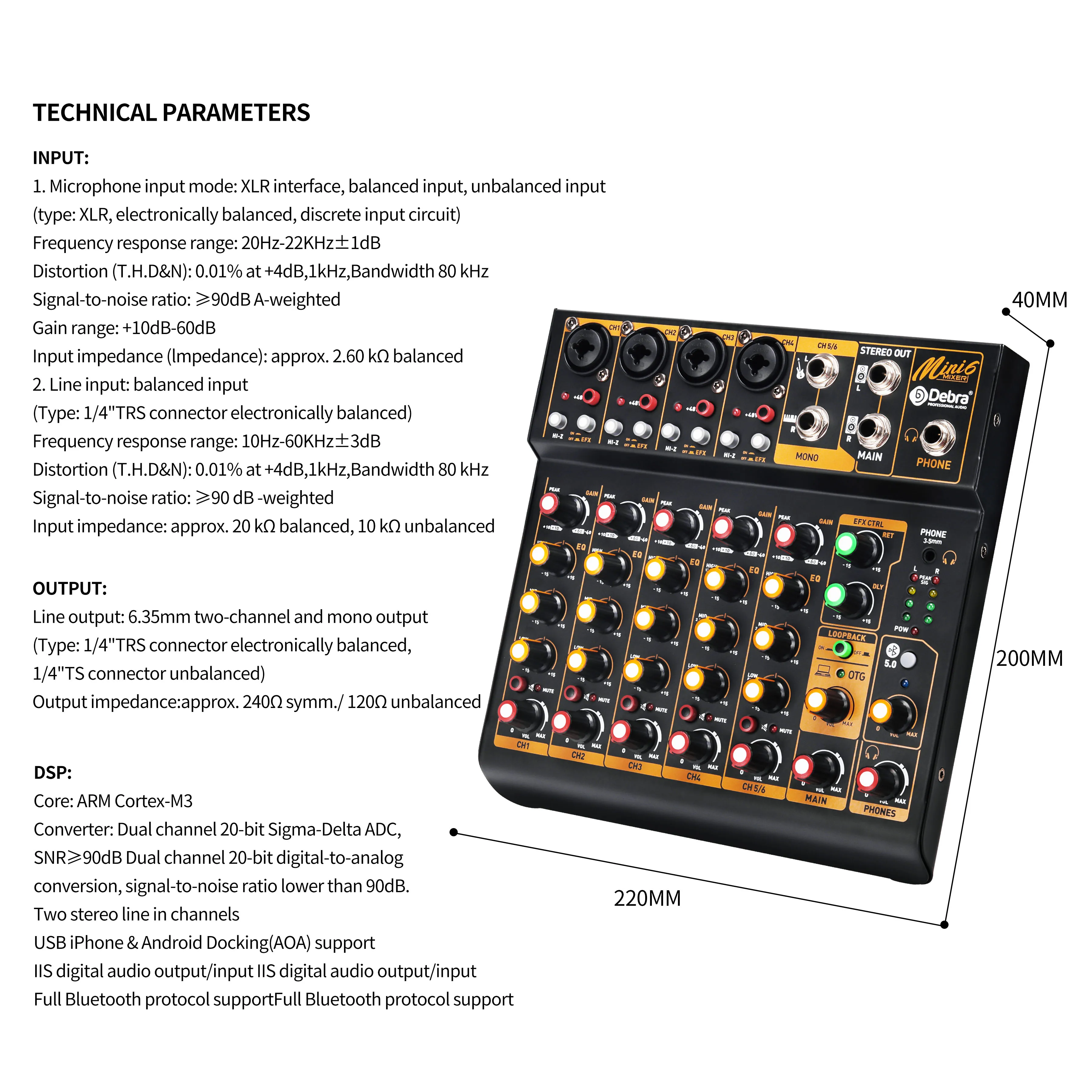

TECHNICAL PARAMETERS

INPUT

1. Microphone input mode: XLR interface, balanced input, unbalanced input(type:XLR, electronically balanced, discrete input circuit)Frequencyresponse range: 20Hz-22KHz±1dB

Distortion (T.H.D&N):0.01% at+4dB,1kHz,Bandwidth 80 kHz

Signal-to-noise ratio: >90dB A-weighted

Gain range: +10dB-60dB

Input impedance (lmpedance): approx. 2.60 k0 balanced

2. Line input: balanced input

(Type: 1/4"TRS connector electronically balanced)

Frequencyresponserange: 10Hz-60KHz士3dB

Distortion (T.H.D&N): 0.01% at +4dB,1kHz,Bandwidth 80 kHz

Signal-to-noise ratio: >90 dB -weighted

Input impedance: approx.20 k0 balanced, 10 kΩ unbalanced


OUTPUT:

Line output: 6.35mm two-channel and mono output

(Type: 1/4"TRS connector electronically balanced,

1/4"TS connector unbalanced)

Outputimpedance:approx,2400symm./1200 unbalanced


DSP:

Core: ARM Cortex-M3

Converter: Dual channel 20-bit Sigma-Delta ADC,SNR>90dB Dual channel 20-bit digital-to-analogconversion,signal-to-noise ratio lower than 90dB

Two stereo line in channels

USB iPhone & Android Docking(AOA) support

llS digital audio output/input llS digital audio output/inputFull Bluetooth protocol supportFull Bluetooth protocol support

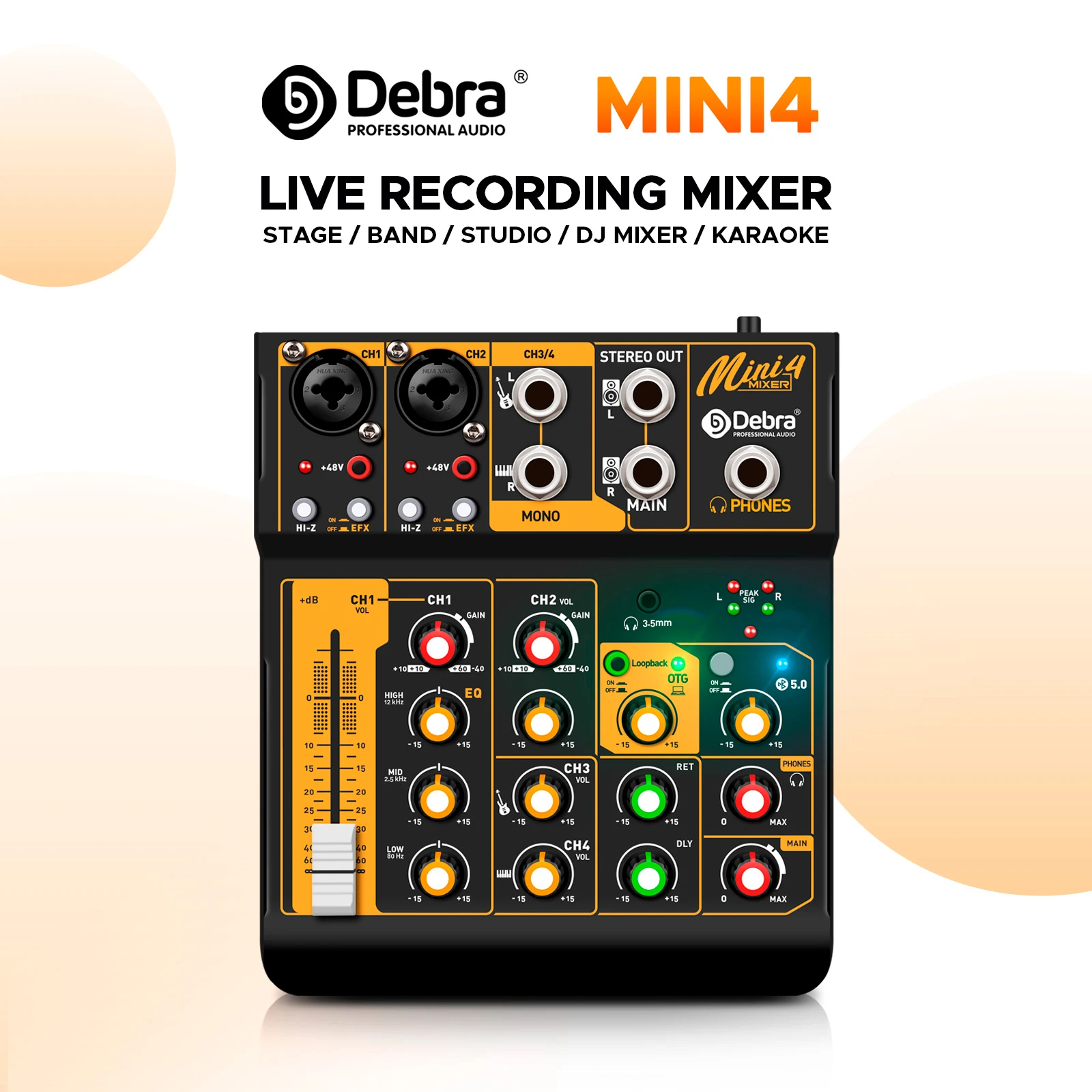

Audio Mini4 Audio Mixer DJ Console Professional Audio Interface with OTG Recording Sound Card

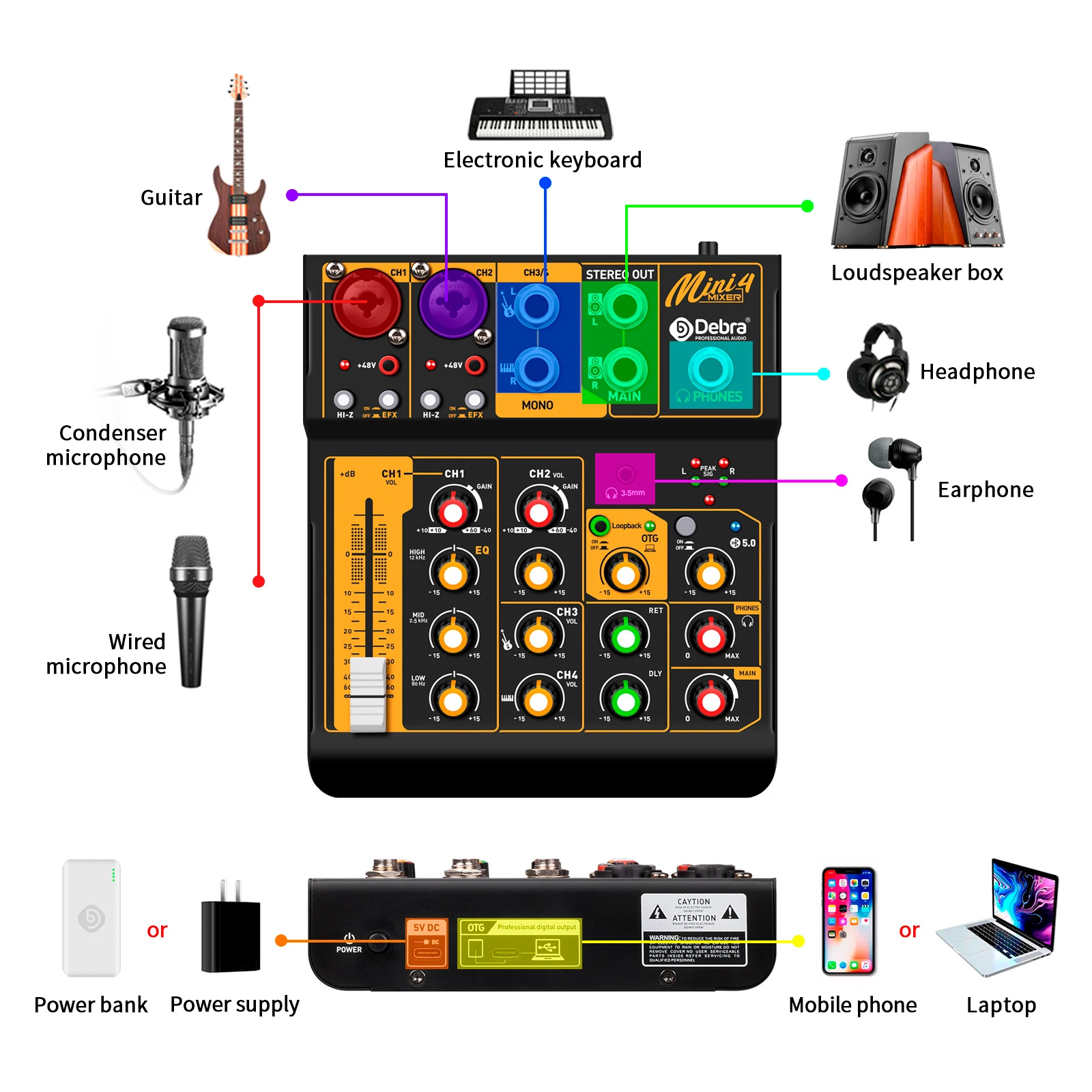

Mini4 is a super mini portable audio mixer with a professional sound card output OTG interface, standard 48V power supply and Bluetooth 5.0, excellent microphone amplifier and reverberation effect. The 5V powered Mini4 allows you to record/mix easily whether indoors or outdoors. Using it can help you quickly build a mobile mixing workbench.

Mini4 is a good companion for personal live broadcasts and recording and mixing of bands and personal studios, allowing users to achieve sound processing in a relaxed and simple way.

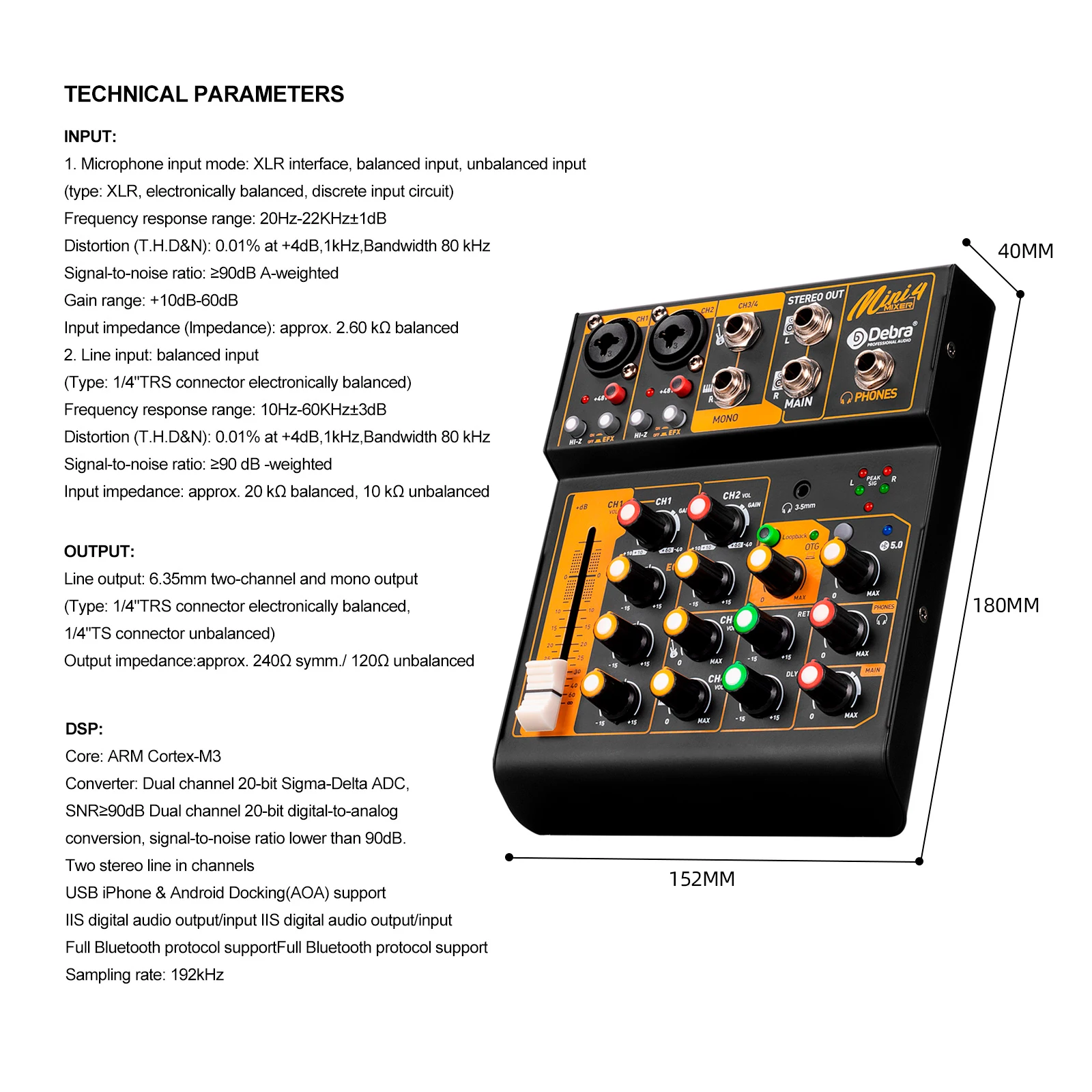

INPUT:

1. Microphone input mode: XLR interface, balanced input, unbalanced input

(type: XLR, electronically balanced, discrete input circuit)

Frequency response range: 20Hz-22KHz±1dB

Distortion (T.H.D&N): 0.01% at +4dB,1kHz,Bandwidth 80 kHz

Signal-to-noise ratio: ≥90dB A-weighted

Gain range: +10dB-60dB

Input impedance (lmpedance): approx. 2.60 kΩ balanced

2. Line input: balanced input

(Type: 1/4"TRS connector electronically balanced)

Frequency response range: 10Hz-60KHz±3dB

Distortion (T.H.D&N): 0.01% at +4dB,1kHz,Bandwidth 80 kHz

Signal-to-noise ratio: ≥90 dB -weighted

Input impedance (lmpedance): approx. 20 kΩ balanced, 10 kΩ unbalanced


OUTPUT:

Line output: 6.35mm two-channel and mono output

(Type: 1/4"TRS connector electronically balanced,1/4"TS connector unbalanced)

Output impedance (lmpedance):approx. 240Ω symm./ 120Ω unbalanced

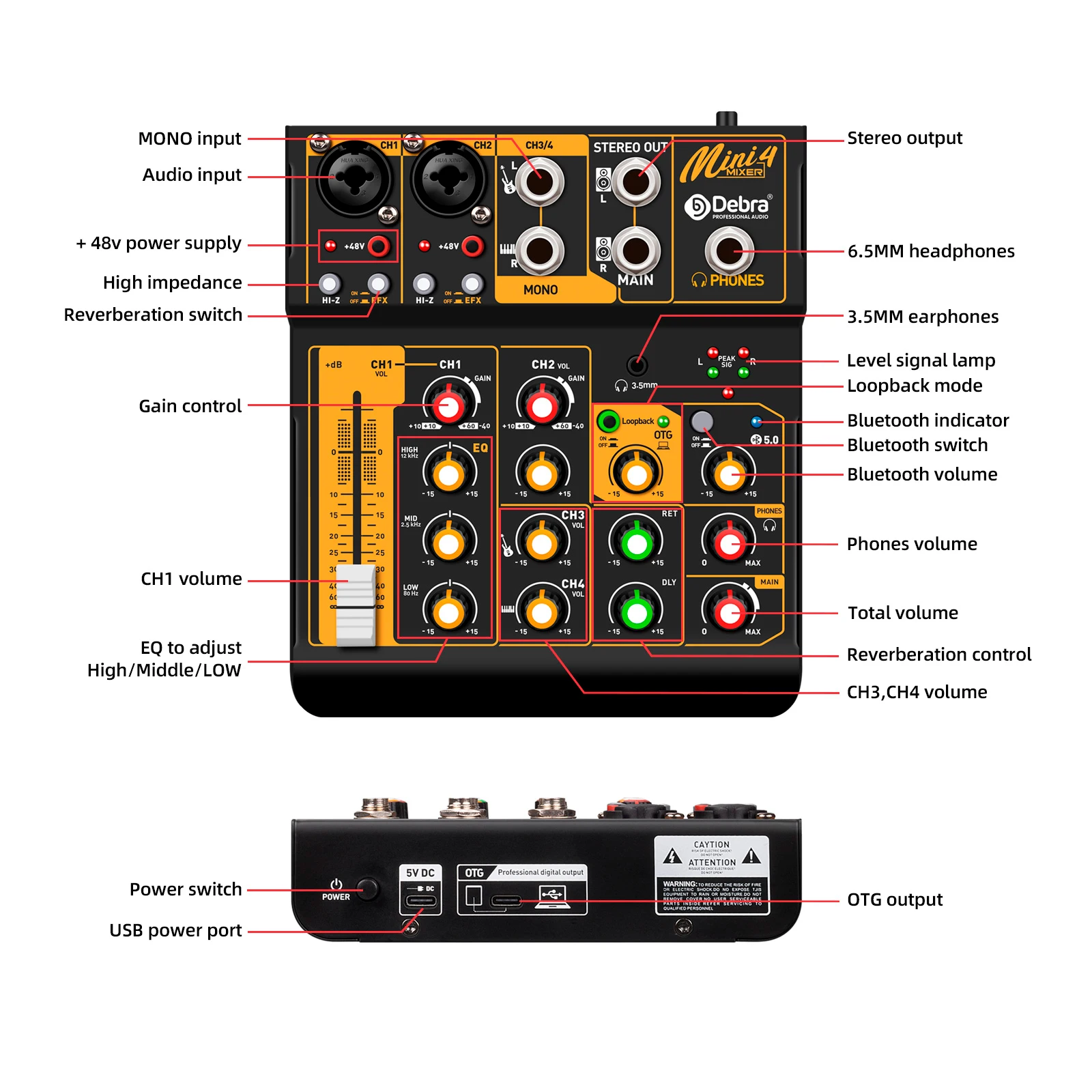

PRODUCT FEATURES

●Super mini size, easy to carry and takes up very little space.

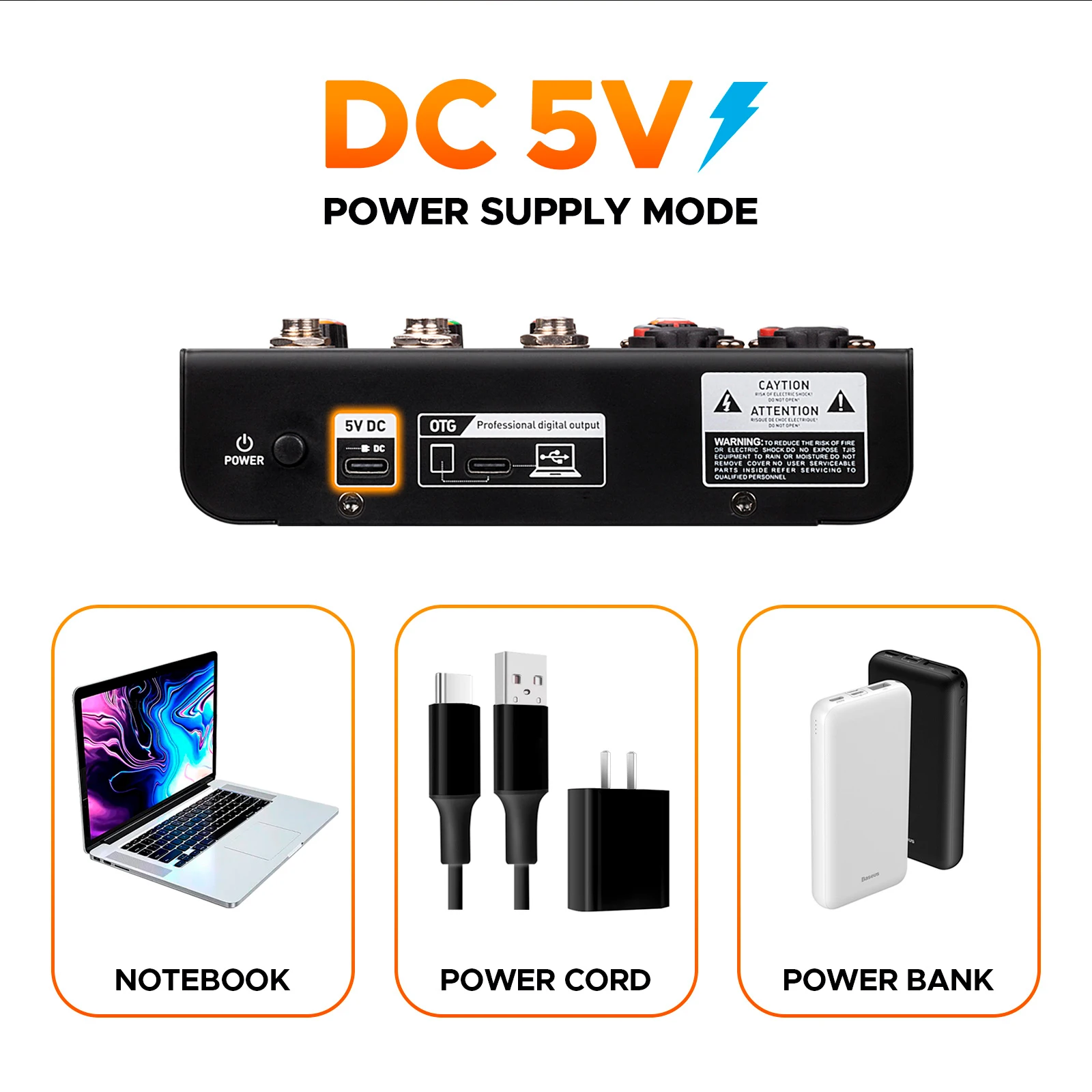

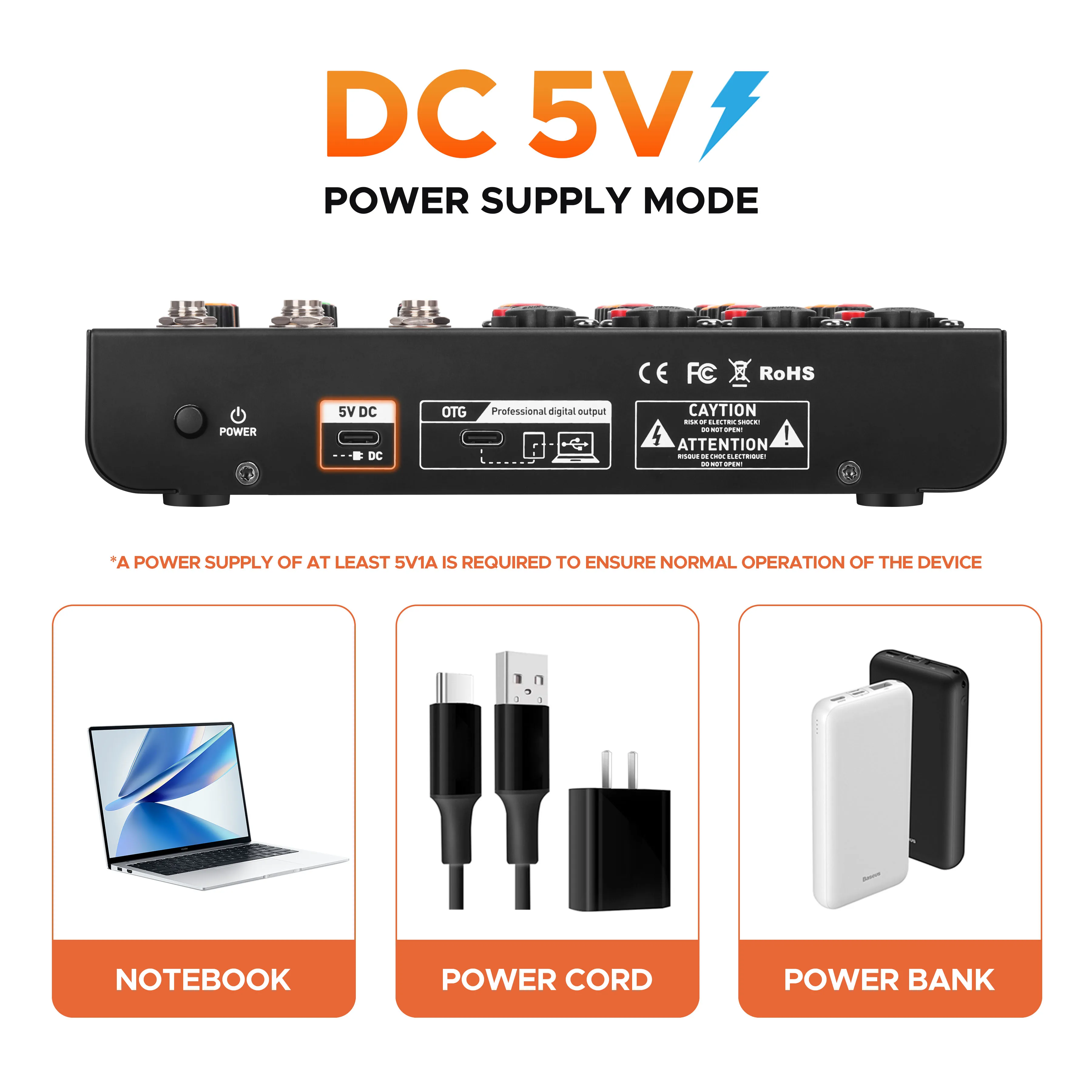

●Using 5V power supply, convenient for outdoor use and using power bank for power supply.

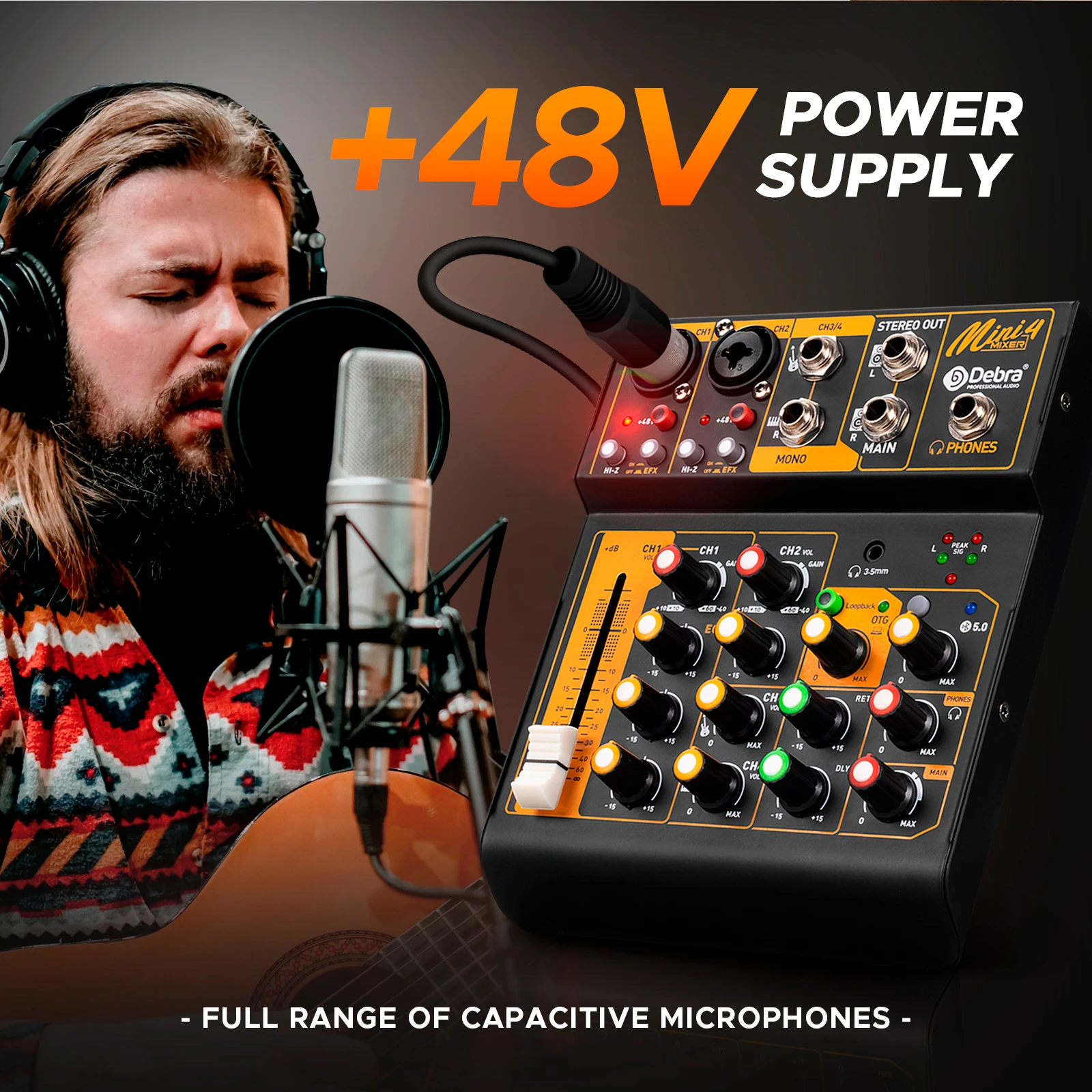

●1,2 channel XLR with separate 48V switch and high impedance function.

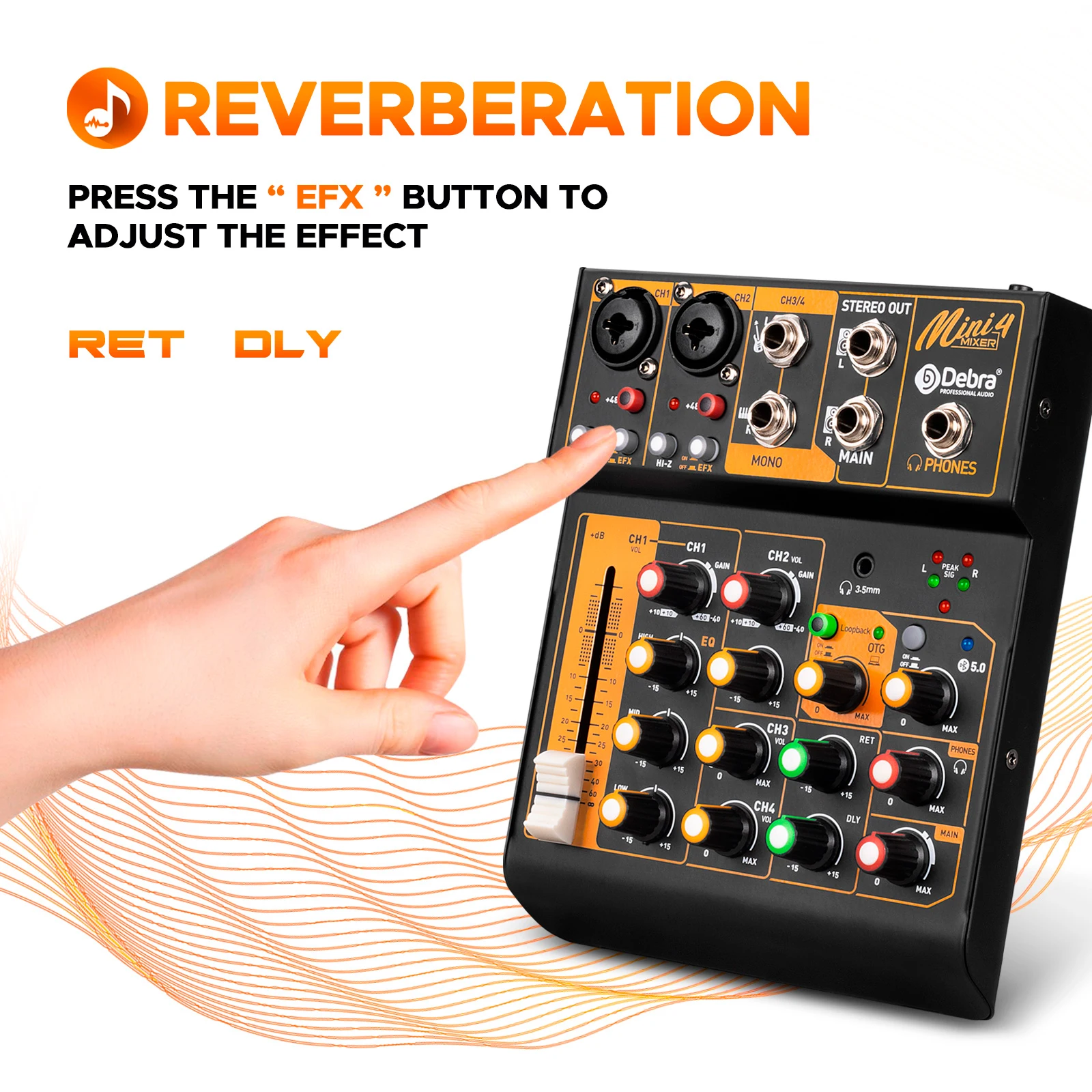

●Channels 1 and 2 have separate effect switches.

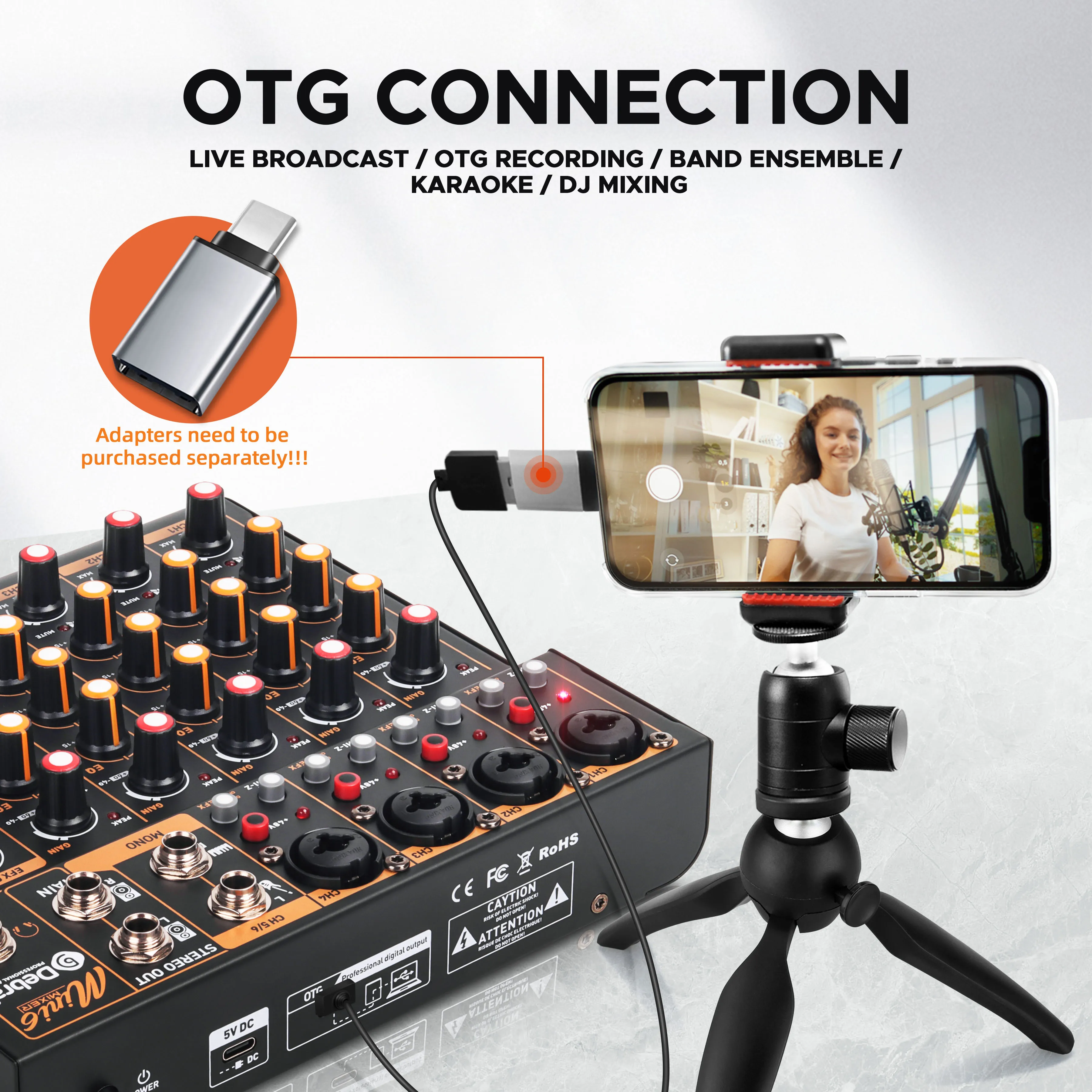

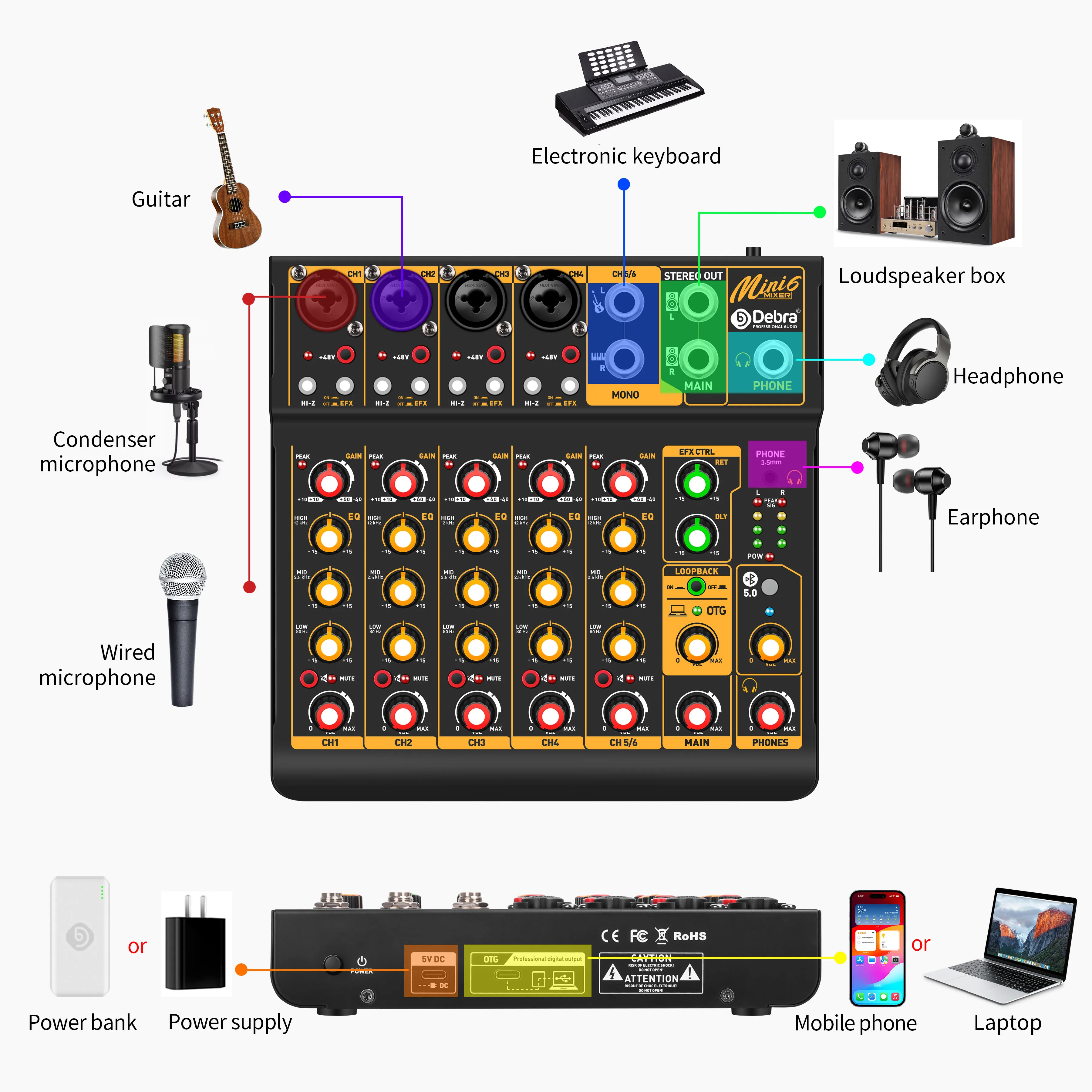

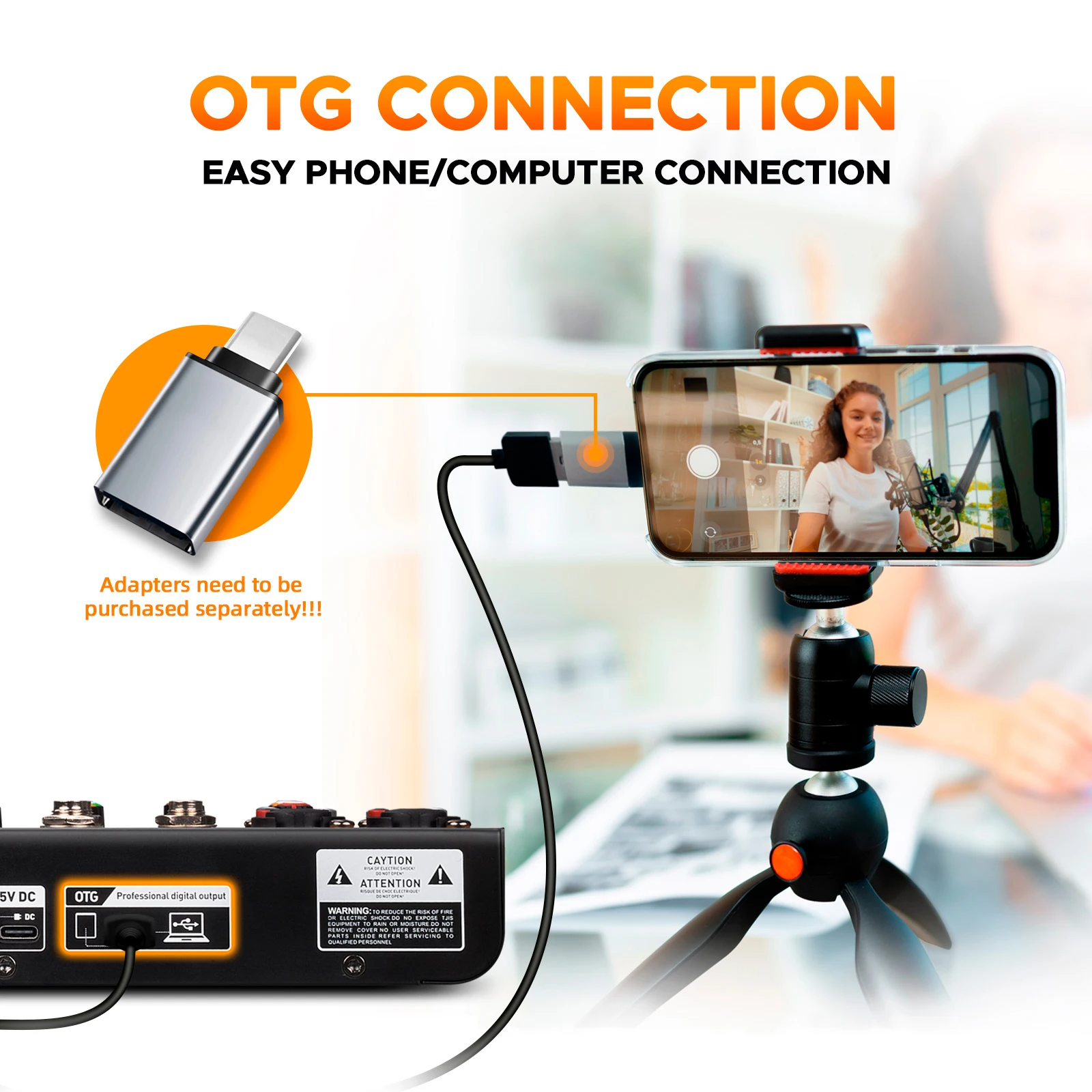

●OTG output facilitates connection to PC/smart devices.

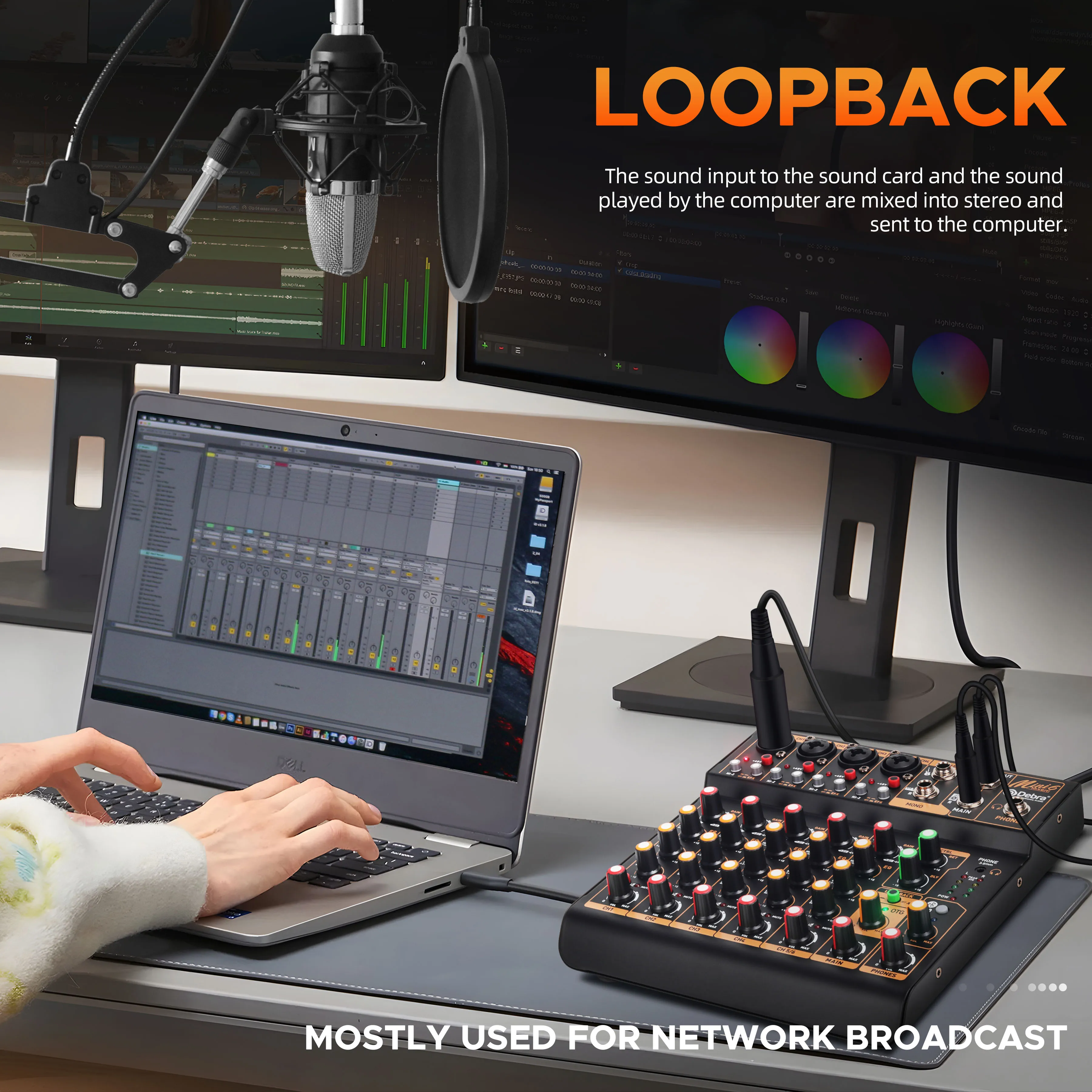

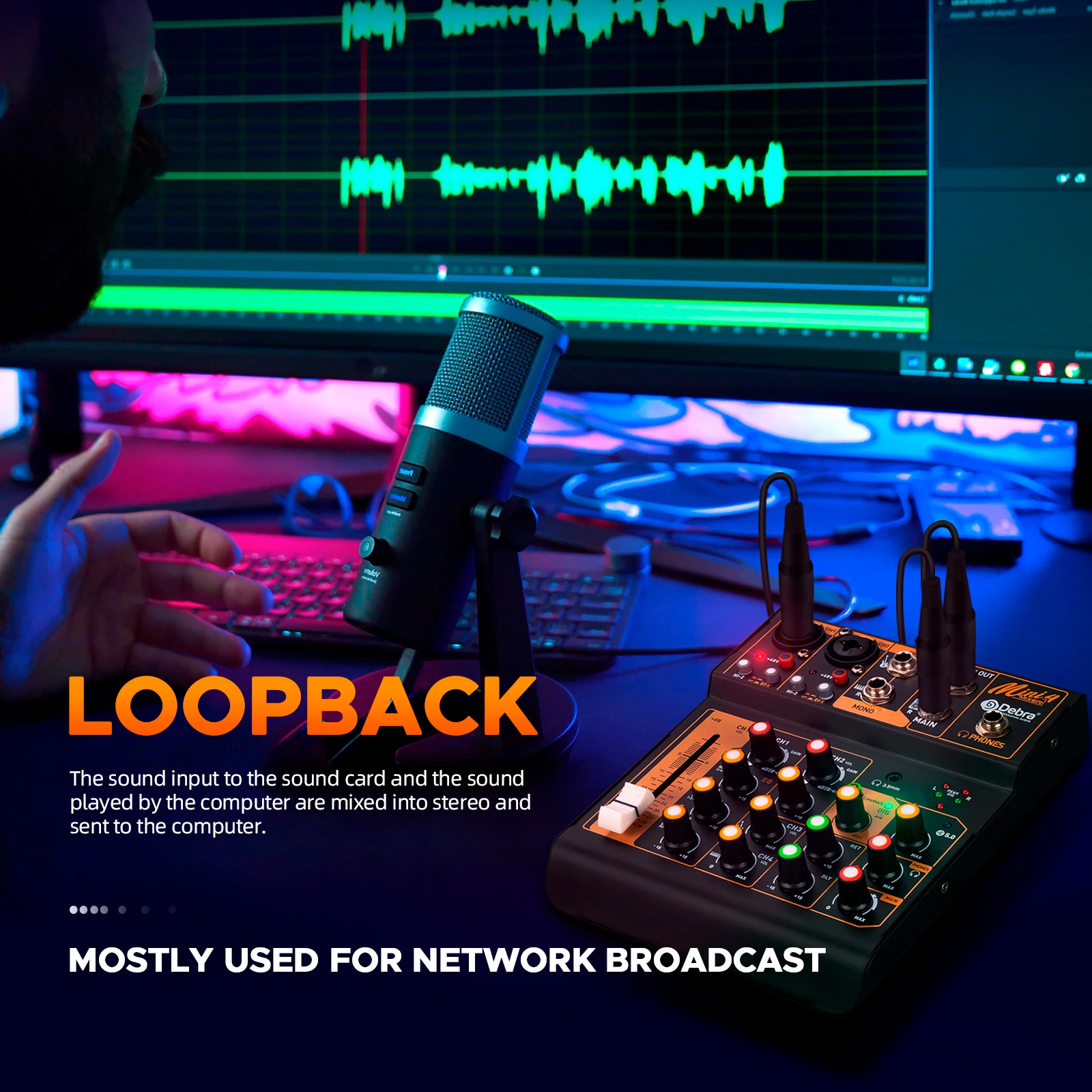

●With Loopback button, you can switch the recording mode.

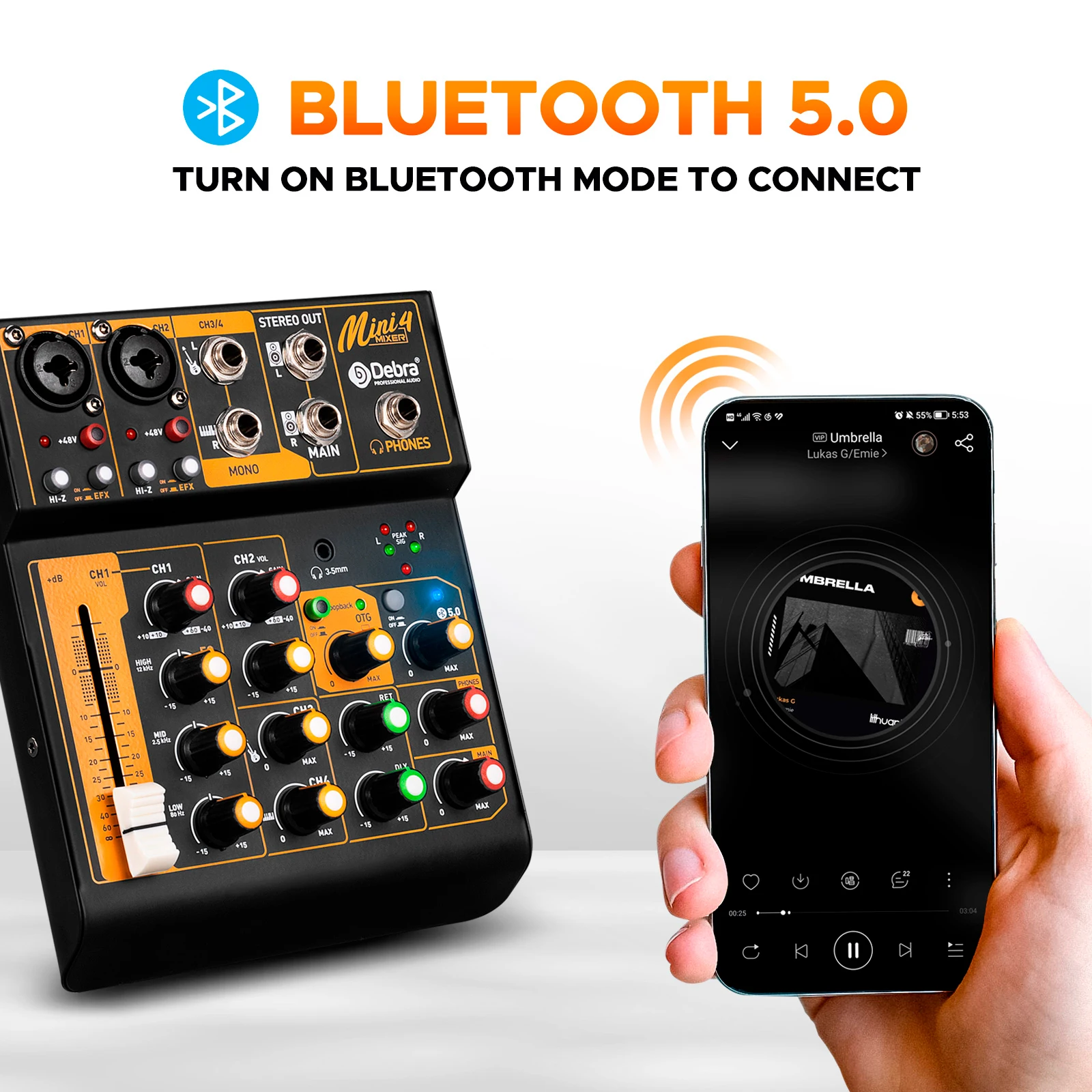

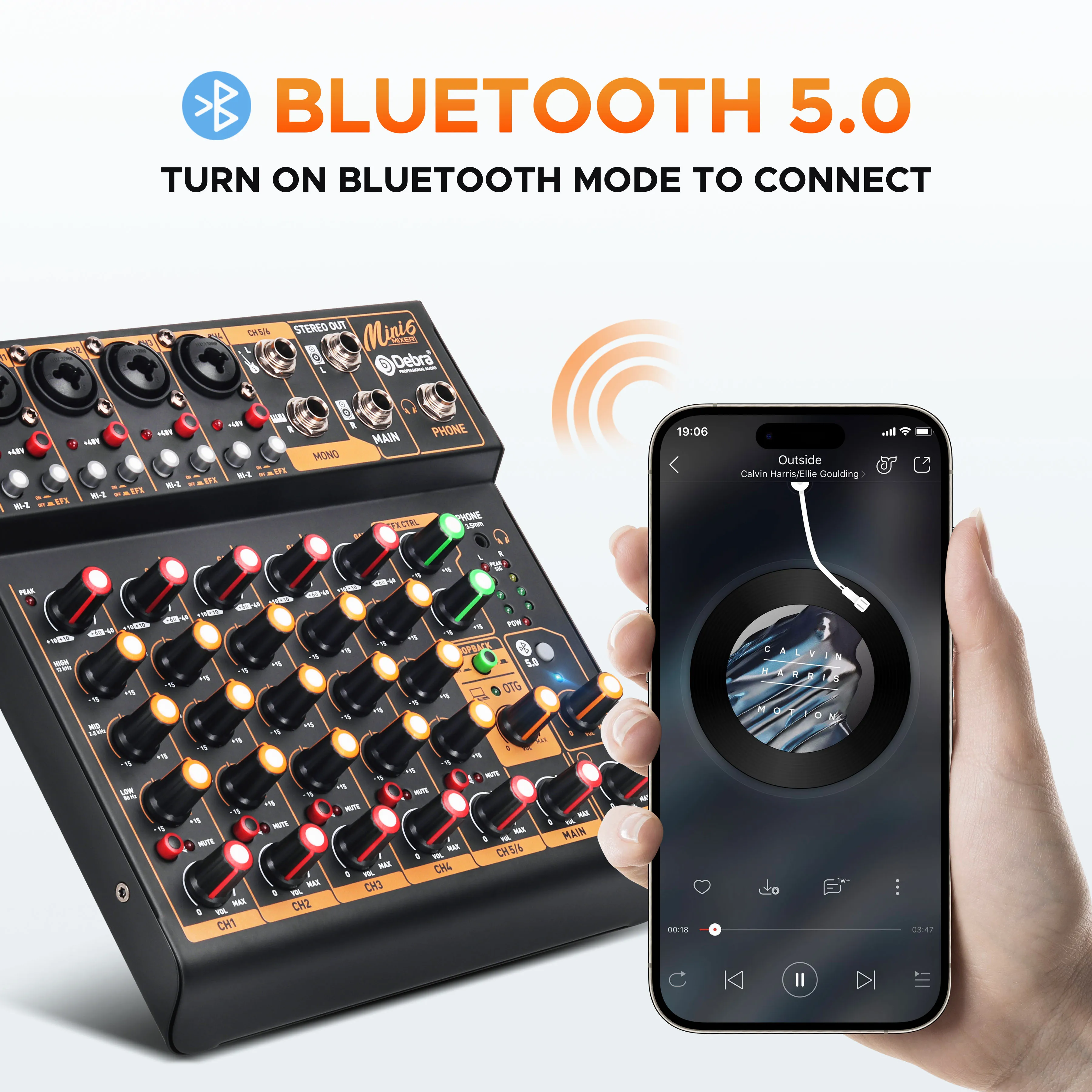

●Bluetooth 5.0 enables wireless high-quality playback of lossless music.

●Ultra-low noise floor, high-quality chip processing audio, the sound is clearer.

●High quality microphone amplifier and headphone amplifier.

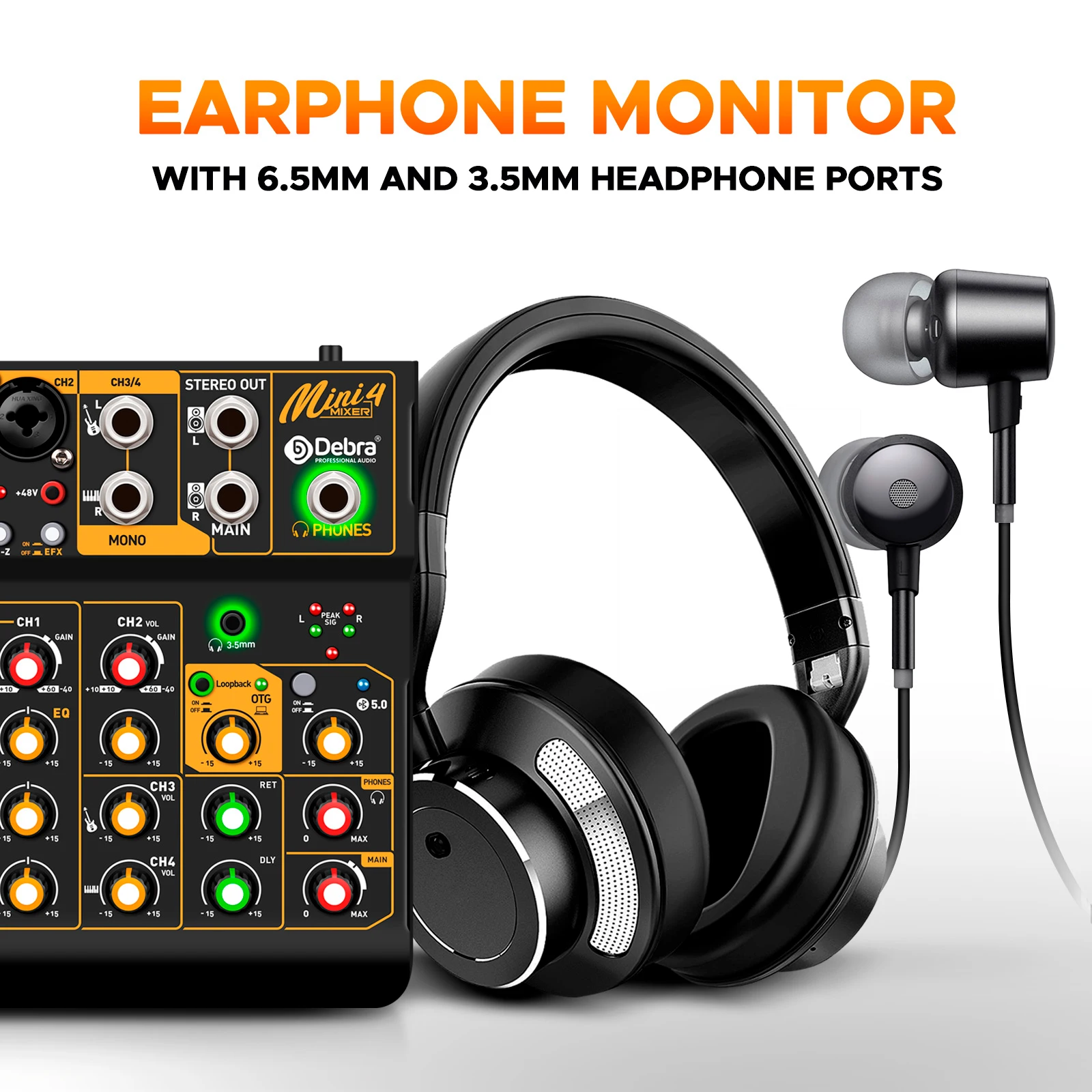

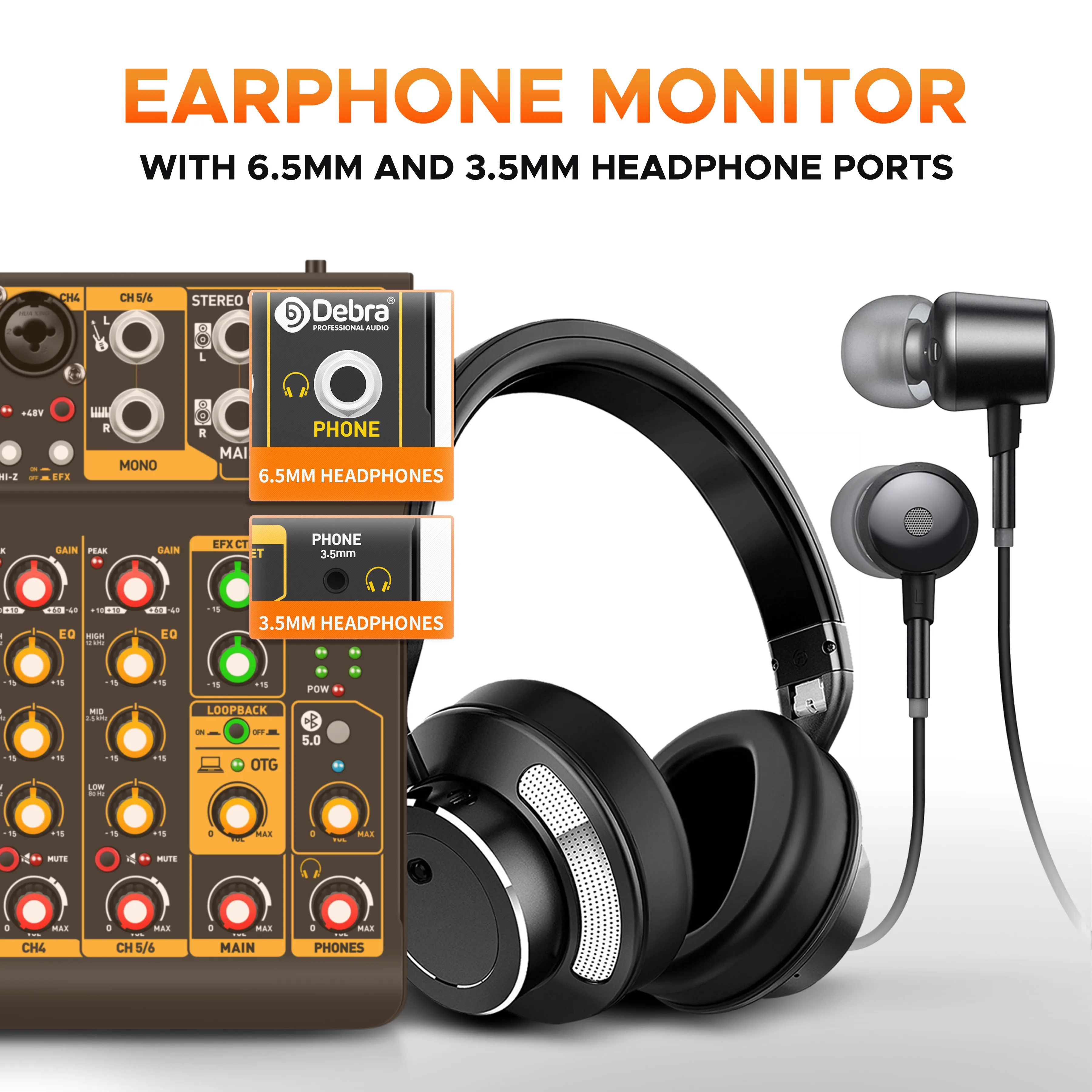

●Equipped with 3.5mm and 6.5mm headphone jacks.

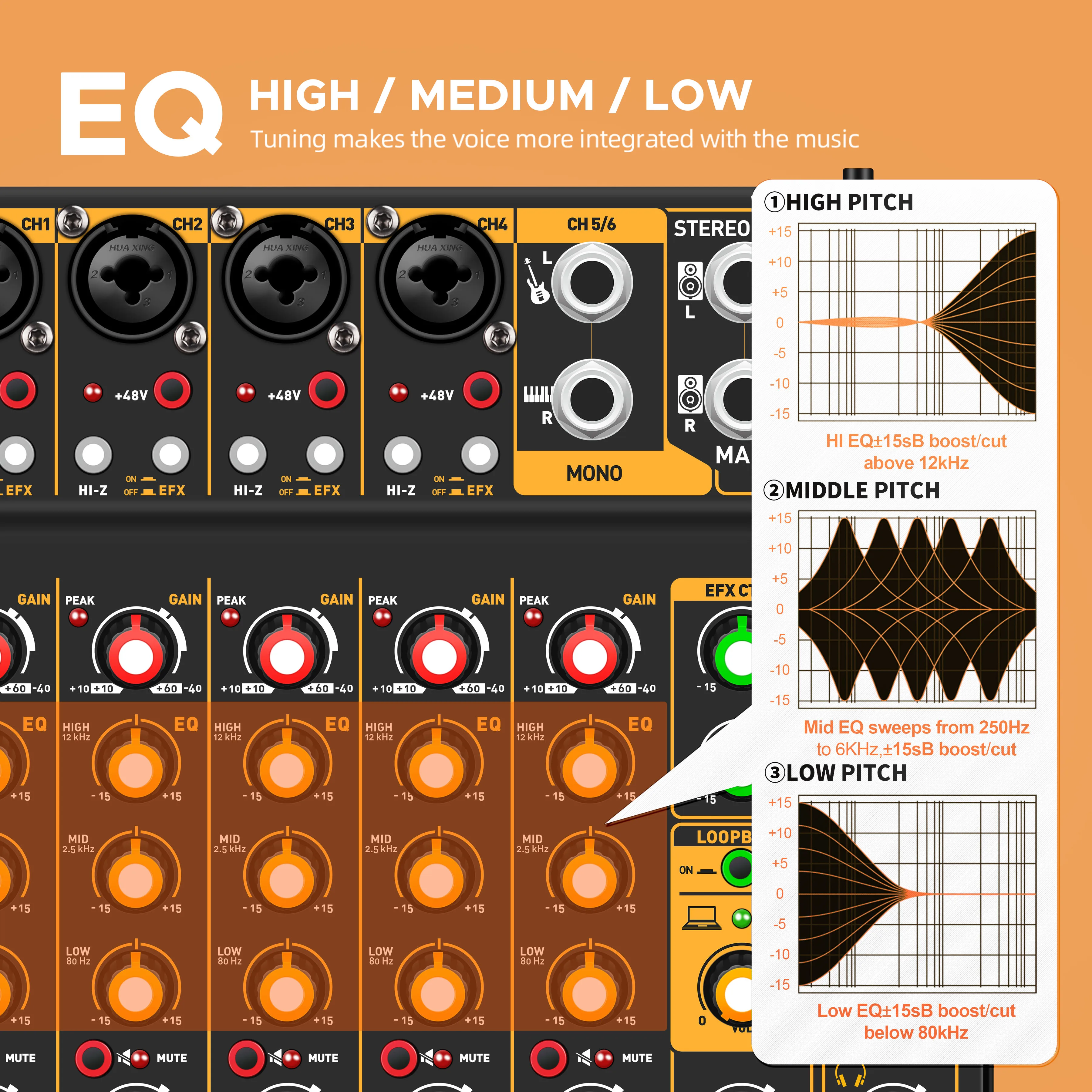

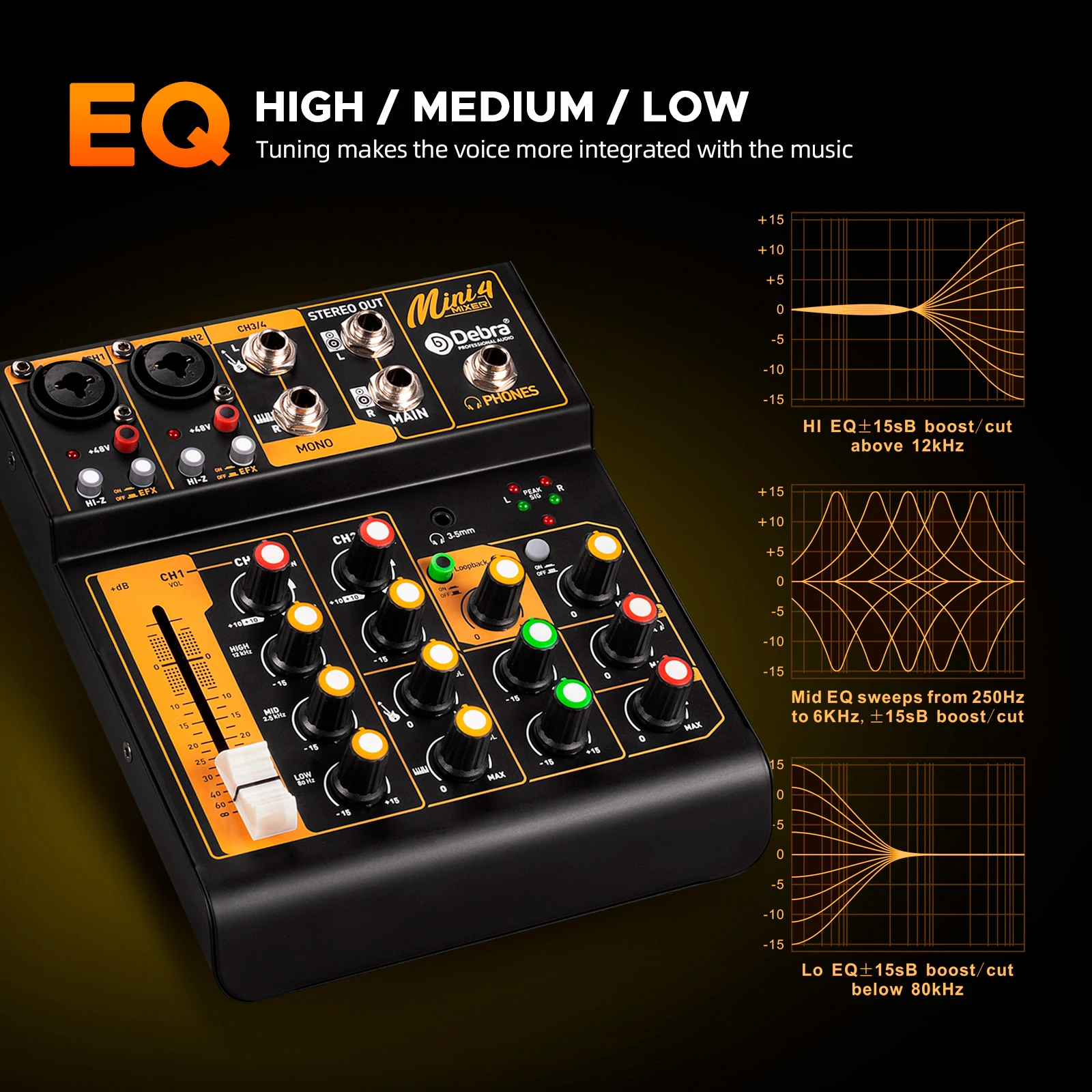

●CH1 three-stage equalization is adjustable.
