XIAOMI 10 Gigabit Router Dual 10G Network Port WIFI Tri-band 2GB RAM Repeater Wireless Mesh IPTV USB 3.0
Xiaomi Router Connection Steps
1. Connect the router to the power supply and connect to the network cable
2. When the indicator light turns blue, use your mobile phone to search for the WiFi transmitted by the router
3. Connect to WiFi, it will automatically jump to the setting page, and set a WiFi password according to the prompt
4. After completing the settings, the WiFi will automatically restart, and it can be used normally after reconnecting

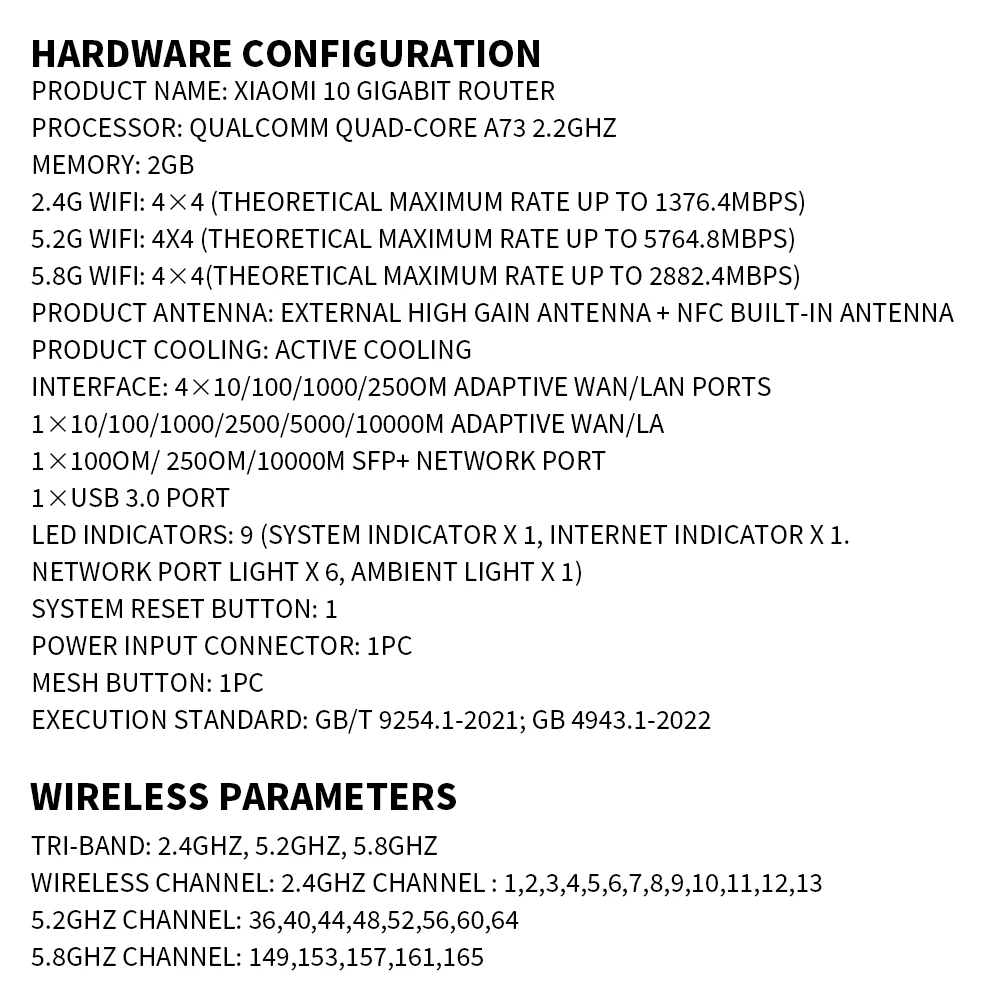

Processor | Qualcomm quad-core A73 2.2GHz |
Network acceleration engine | Dual-core 1.7GHz NPU |
RAM | 2GB |
2,4G Wi-Fi | 4x4 (Theoretical maximum rate can reach 1376.4Mbps) |
5.2G Wi-Fi | 4x4 (Theoretical maximum rate can reach 5764.8Mbps) |
5.8G Wi-Fi | 4x4 (Theoretical maximum rate can reach 28824Mbps) |
Product Antenna | External high-gain antenna + NFC built-in antenna |
Product heat dissipation | Active heat dissipation |
Whole machine interface | 4x10/100/1000/ 2500M adaptive WAN/LAN port 1x10/100/1000/ 2500/ 5000/10000M adaptive WA 1x1000M/ 2500M/10000M SFP + network port 1xUSB 3.0 interface |
LED indicator | 9 (SYSTEM indicator x1, INTERNET indicator x1, network port lights x6, ambient light x1) |
Router button | System reset button 1 Power input interface 1 Mesh button 1 |
Certification standards | GB/T 9254.1-2021; GB 4943.1-2022 |
Warranty information | The whole machine is guaranteed For year |
Tri-band | 2.4GHz, 5.2GHz and 5.8GHz |
Wireless channel | 2. 4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13 5.2GHz Channel: 36, 40,4448,52,56,60,64 5.8GHz Channel: 149,153,157,161,165 |
operating system | Mi WiFi ROM, a smart router operating system deeply customized based on Open WRT |
Wireless security | WPA-PSK/WPA2-PSK/WPA3-SAE encryption.Wireless access control (black and white list), SSID hiding, intelligent anti-scratch network |
Management application | Support Web, Android, iOS |
Product acessories | Manual:1 piece cable:1 Product Power:1(12V/5A) |
* 10 Gigabit high-speed network for the most powerful performance
* 10 Gigabit wireless rate, 8K streaming smoothly
* Qualcomm enterprise processor, 4-core A73, 40,000+ arithmetic power
* 10 Gigabit wired transmission, dual 10G network ports, four 2.4G network ports
* 12-way signal amplifier, easy to cover the whole house signal
* Support NFC password-free network connection
* Family internet protection, manage apps and internet hours
* Simultaneous transmission in three bands for gaming, audio and video, and whole-house intelligence without interference
* 2GB ultra-large memory, theoretically supports more than 1000 devices stable connection

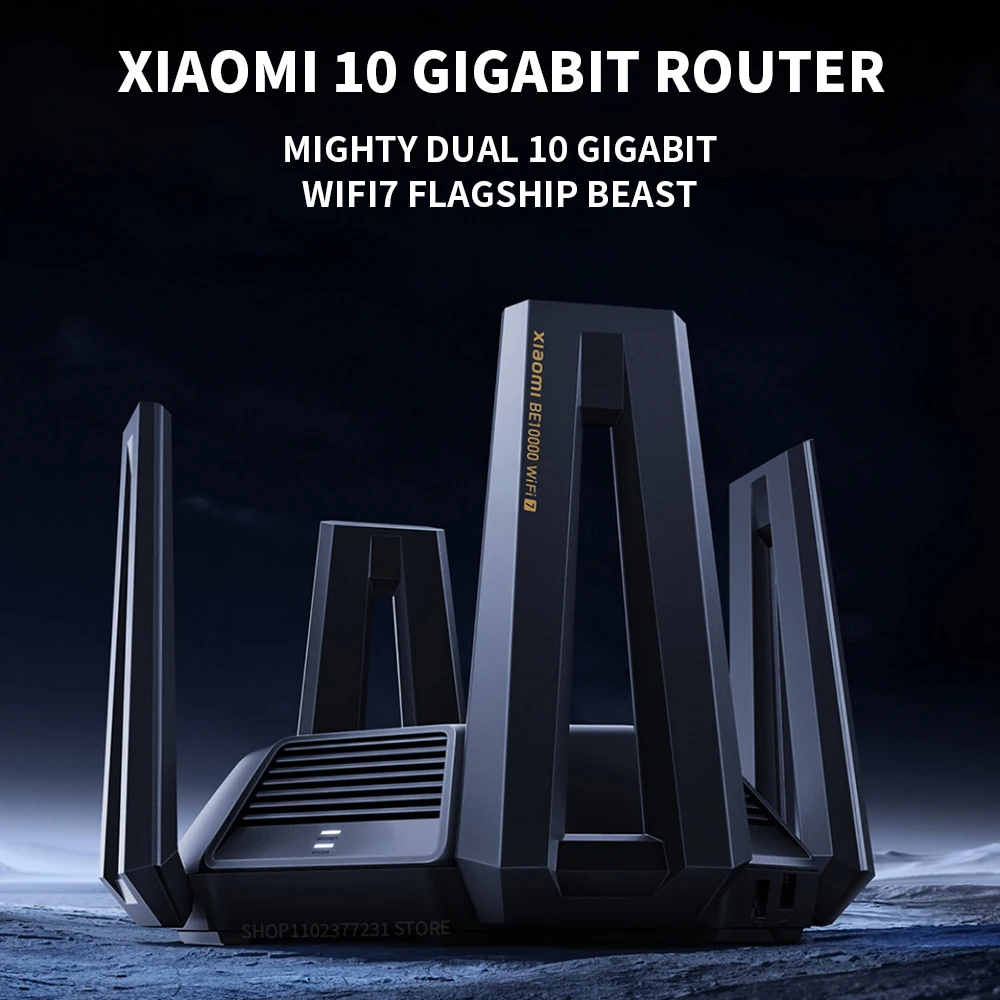

Xiaomi 10 Gigabit Router WIFI 7
Dual 10 Gigabit ports, the new generation of high speed, powerful performance routers.
NEXT GENERATION WIFI 7
NEW PROTOCOLS EVOLUTION AGAIN
10 GIGABIT WIRELESS RATE
8K STREAMING
10 GIGABIT WIRED TRANSMISSION
DUAL 10G PORTS
FOUR 2.5G PORTS
QUALCOMM ENTERPRISE PROCESSOR
4-CORE A73, 40,000+ POWER SURGE
*12-WAY SIGNAL AMPLIFIER
WHOLE HOUSE SIGNAL COVERAGE
2GB ULTRA-LARGE.MEMORY
1000+ DEVICE CONNECTIONS
NFC BUMPER TO BUMPER
ONE TOUCH OF YOUR PHONE AND YOU'RE IN THE NETWORK
ACCELERATION MULTI-PLATFORM GAME
FAMILY INTERNET PROTECTION
MANAGE APPS AND INTERNET DURATION
USB 3.0
CREATE A "LIGHT NAS' FOR FAMILY
SUPPORTS THE NEW GENERATION OF WIFI 7 PROTOCOL
FASTER,STRONGER,MORE STABLE
WiFi7 not only has higher speed and effectively improves throughput, but also has powerful features such as MLO multiplexing technology, which can make full use of channel resources,reduce latency, improve anti-interference capability, and realize a great leap in entertainment and office network experience.
MLO MULTI-LINK TECHNOLOGY
A REVOLUTIONARY BREAKTHROUGH IN SUB-CONNECTIVITY
Dual band simultaneous connection
Concurrent data transmission, faster on faster

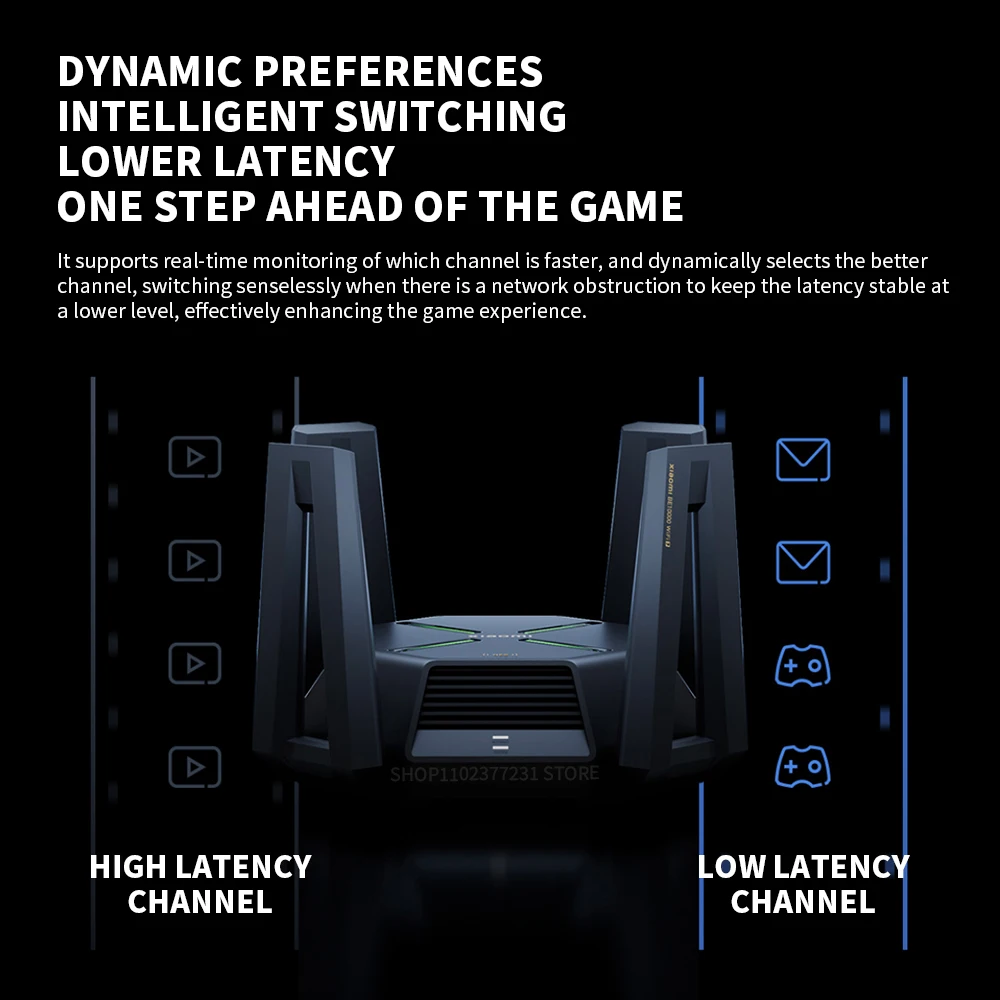

DYNAMIC PREFERENCES
INTELLIGENT SWITCHING
LOWER LATENCY
ONE STEP AHEAD OF THE GAME
MLO supports real-time monitoring of which channel is faster, and dynamically selects the better channel, switching senselessly when there is a network obstruction to keep the latency stable at a lower level, effectively enhancing the game experience.
Three bands, high speed concurrency
Compared to ordinary dual-band routers, tri-band routers not only offer higher network speeds. What's more, it allows devices to be connected more smoothly. You can allocate the use of each band according to your habits, and devices on different bands can be used separately without interfering with each other.

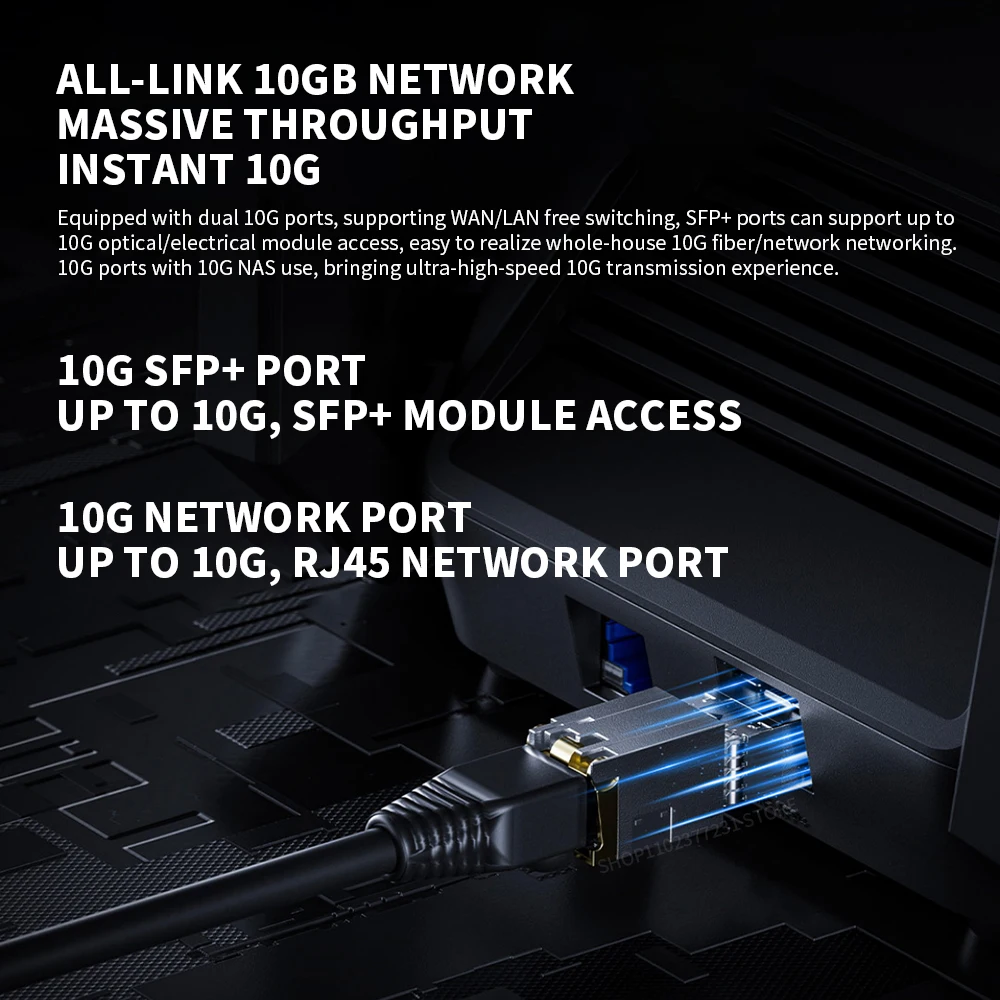

Full-link 10 Gigabit network
Equipped with dual 10G network ports, supporting WAN/LAN free switching, and SFP+ network port can support up to 10G optical/electrical module access. Easy 10G network port with 10G NAS NAS The 10G network port can be used with 10G NAS to bring ultra-high-speed 10G transmission experience.
*SFP+ modules need to be purchased by yourself, for better experience, we recommend using models tested and approved by Xiaomi Labs, please contact our customer service for details.

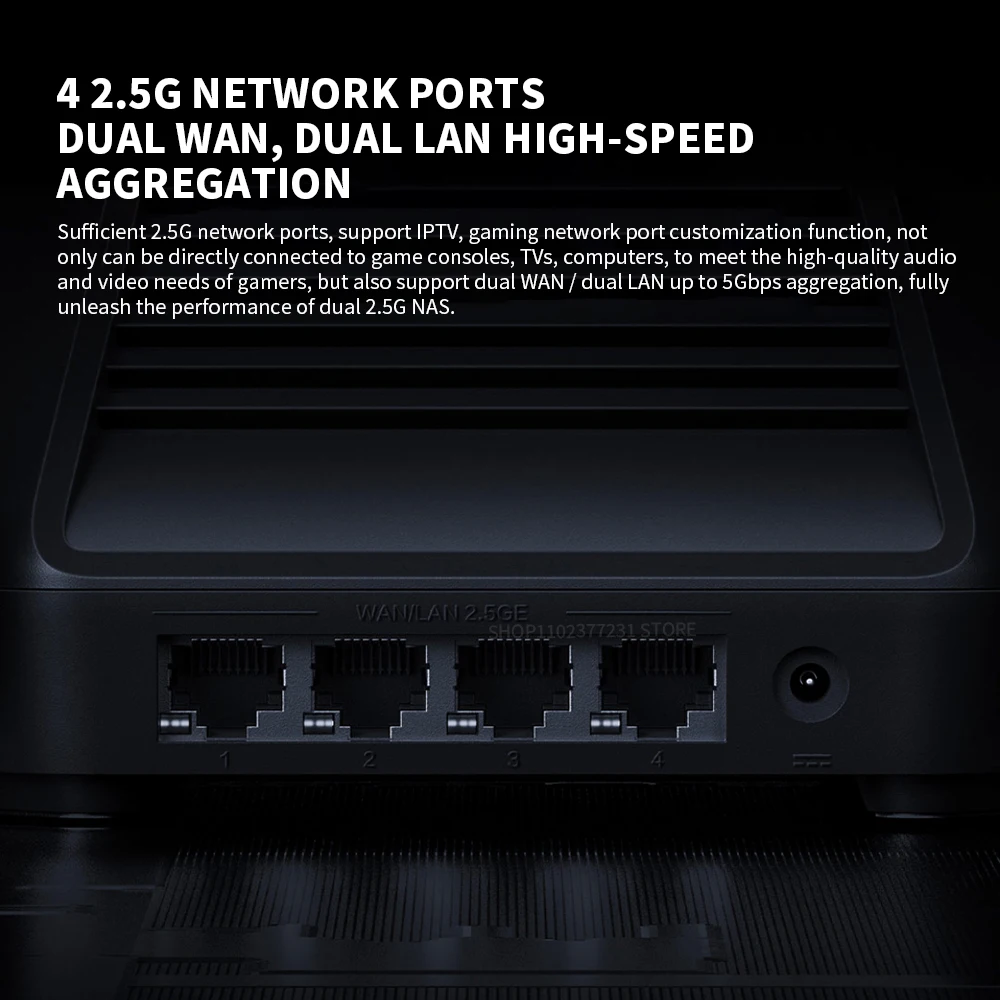

Four 2.5G ports with dual WAN and dual LAN high-speed aggregation
Ample 2.5G network ports, support IPTV, gaming network port customization function. Both can be directly connected to game consoles, TVs, computer. meet gamers' high quality audio and video needs, and also supports dual WAN/dual L AN up to 5Gbps aggregation, fully unlocking the performance of dual 2.5G NAS.

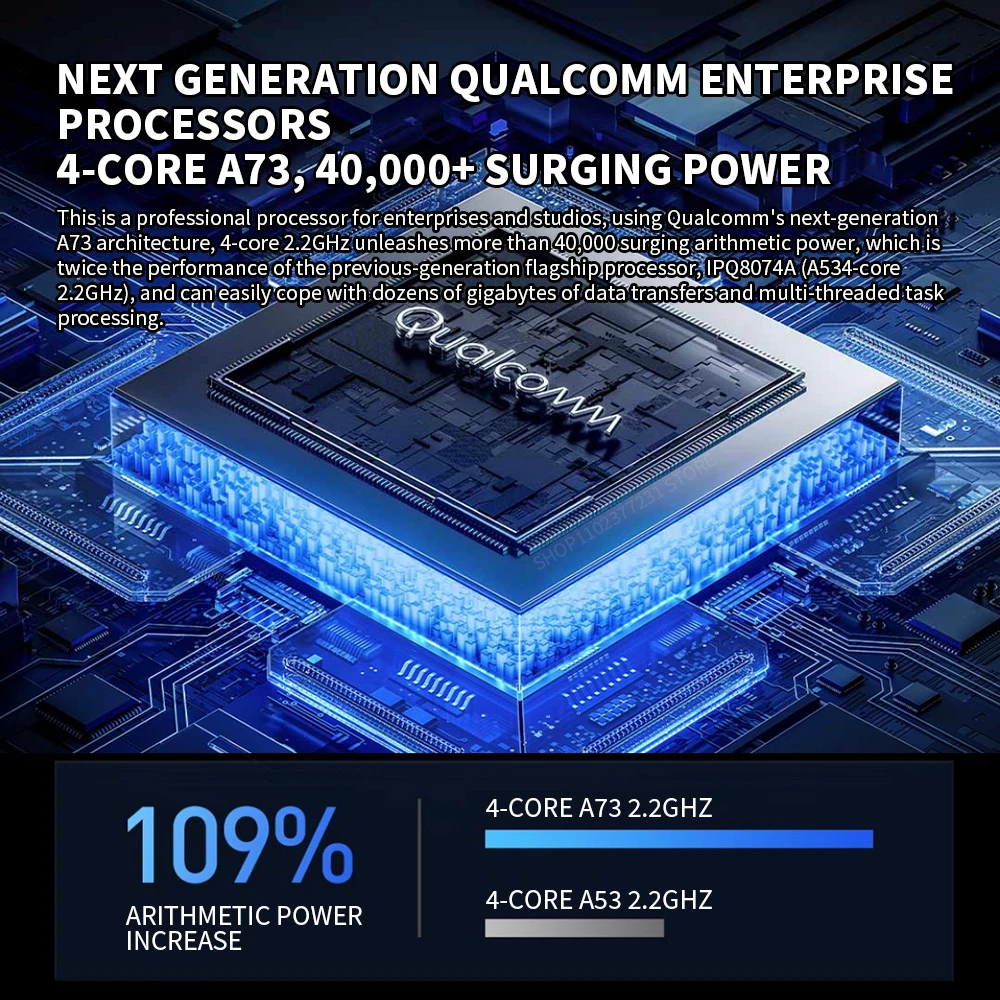

New generation Qualcomm Enterprise processor 4 core A73 with 40,000+ surging computing power
With Qualcomm's next-generation A73 architecture, the 4-core 2.2GHz processor unleashes over 40,000 computing power, twice the performance of the previous generation flagship processor IPQ8074A (A53 4 cores 2.2GHz), easily handling tens of gigabytes of data data transfer and multi-threaded task processing.
12-way high power signal amplifier, whole house signal Strong and stable
12 high gain antennas with 12 high power signal amplifiers increase signal transmission power while improving reception sensitivity. Superb wall penetration through the wall, bringing a good signal throughout the house.

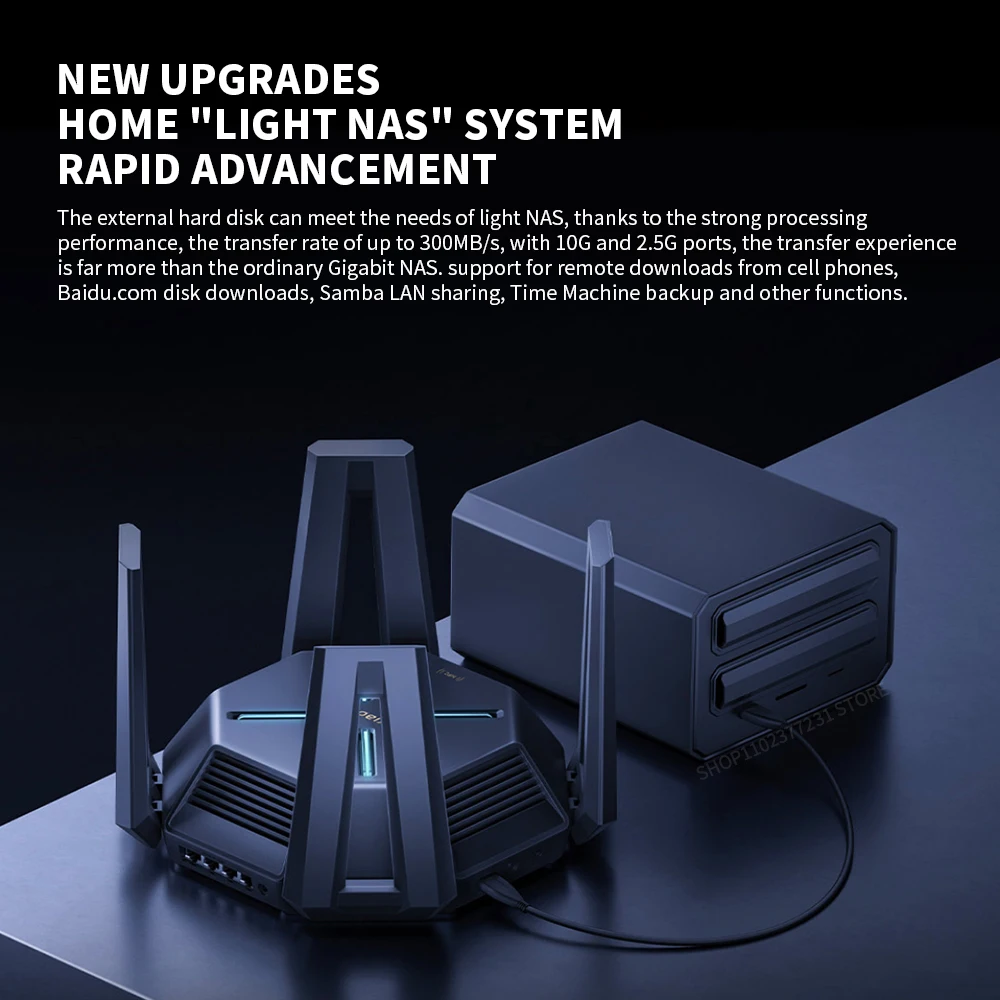

Newly upgraded home "Light NAS" system with USB3.0 version
External hard drives can be used to meet the needs of the Light NAS, and thanks to the powerful processing performance, the transfer rate can reach up to 300MB/s. With 10G and 2.5G network ports, the transfer experience far exceeds that of ordinary gigabit NAS.
2GB super memory, supports Docker expansion
Stable access for up to 1000+ devices. New support for Docker.Extra large cache space for 10 Gigabit data transfer and high-speed USB 3.0 transfer for more stable conditions.

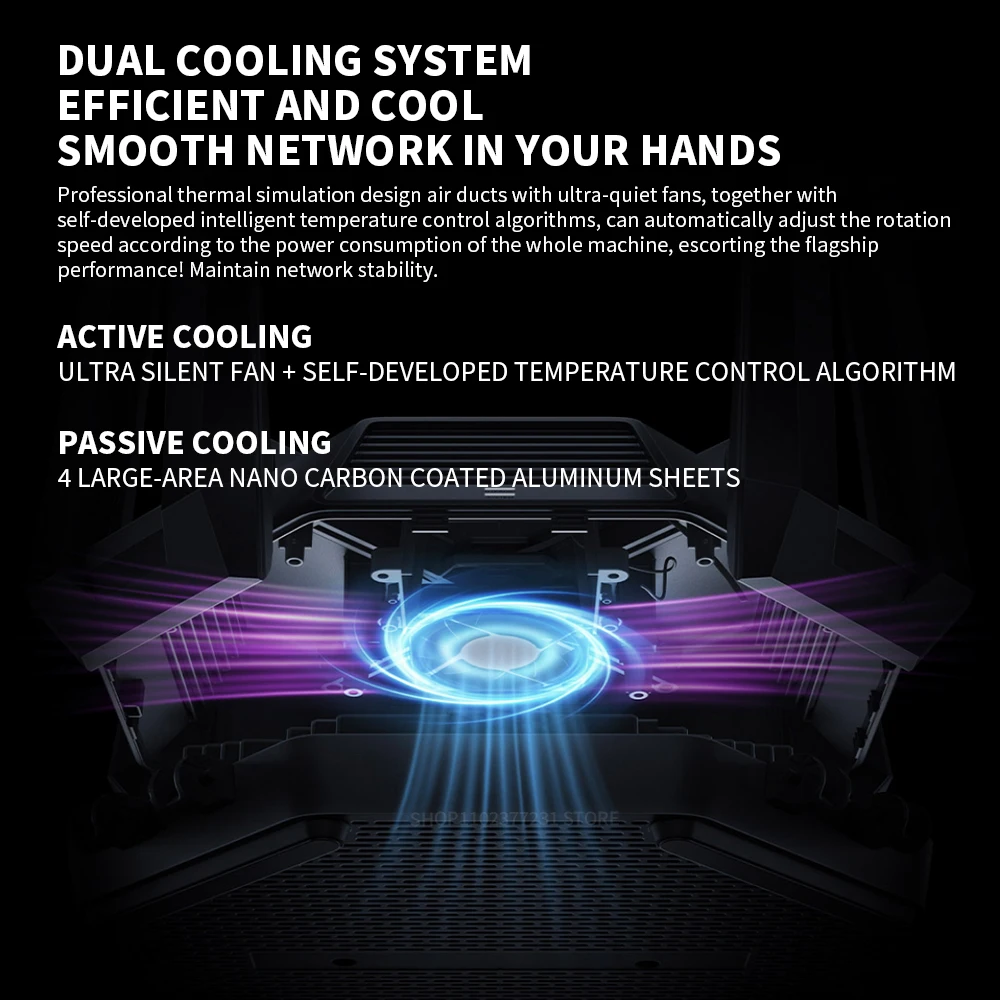

Dual cooling system
Professional thermal simulation design air ducts with ultra-quiet fans, together with self-developed intelligent temperature control algorithm, can automatically adjust the speed according to the power consumption of the whole machine, to keep the network stable without lag.
Active cooling: ultra-silent fan + self-developed temperature control algorithm
Passive cooling: 4 large-area nano-carbon coated aluminium sheets
MULTIPLE MESH NETWORKING
SIGNAL EXPANSION
COVERAGE OF LARGE HOUSEHOLDS
With multiple backhaul bands, the rate of wireless mesh is greatly improved, supporting up to 10 devices for networking, easily solving the signal coverage problems of villas, large flats and other large households.

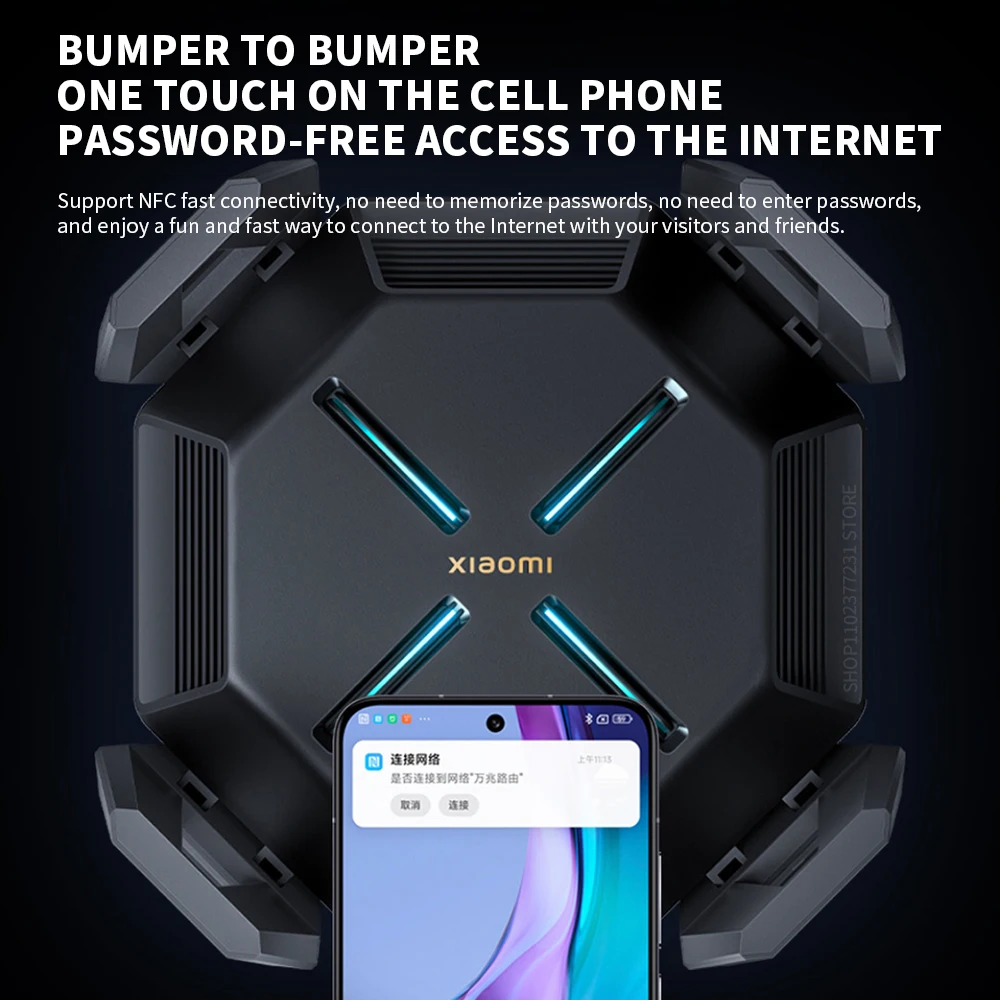

Support NFC one-touch connection, password-free network connection
Family Internet Protection, Healthy Internet
Supports targeted management of your family's mobile phones and tablets. filtering of undesirable websites and harmful information, as well as the ability to set permissions and hours of use for popular apps. You can also set the permissions and length of use of popular apps to prevent your children from getting addicted to games, short videos and comics. It also allows you to set the usage rights and duration of popular apps to prevent your children from getting addicted to games, short videos and comics, and to develop healthy online habits.
More Technical upport
*SUPPORTS HYBRID MESH
UP TO 10 DEVICES EASY MESH WITH ONE CLICK
*XIAOMICONNECTION
WHOLE HOUSE SMART DEVICES ONE KEY TO ACCESS THE NETWORK WITHOUT PASSWORD
*BEAMFORMING
AUTOMATIC DEVICE LOCATION DETECTION DIRECTIONAL SIGNAL ENHANCEMENT FOR WIDER COVERAGE
*IPV6
LARGER ADDRESS SPACE HIGHER FORWARDING EFFICIENCY
*BSS COLORING
REASONABLE ALGORITHM
OPTIMIZATION REDUCE INTERFERENCE BETWEEN DIFFERENT WIFI
*SECURITY CENTER
WIRELESS ACCESS CONTROL PREVENT MALICIOUS TERMINAL ACCESS

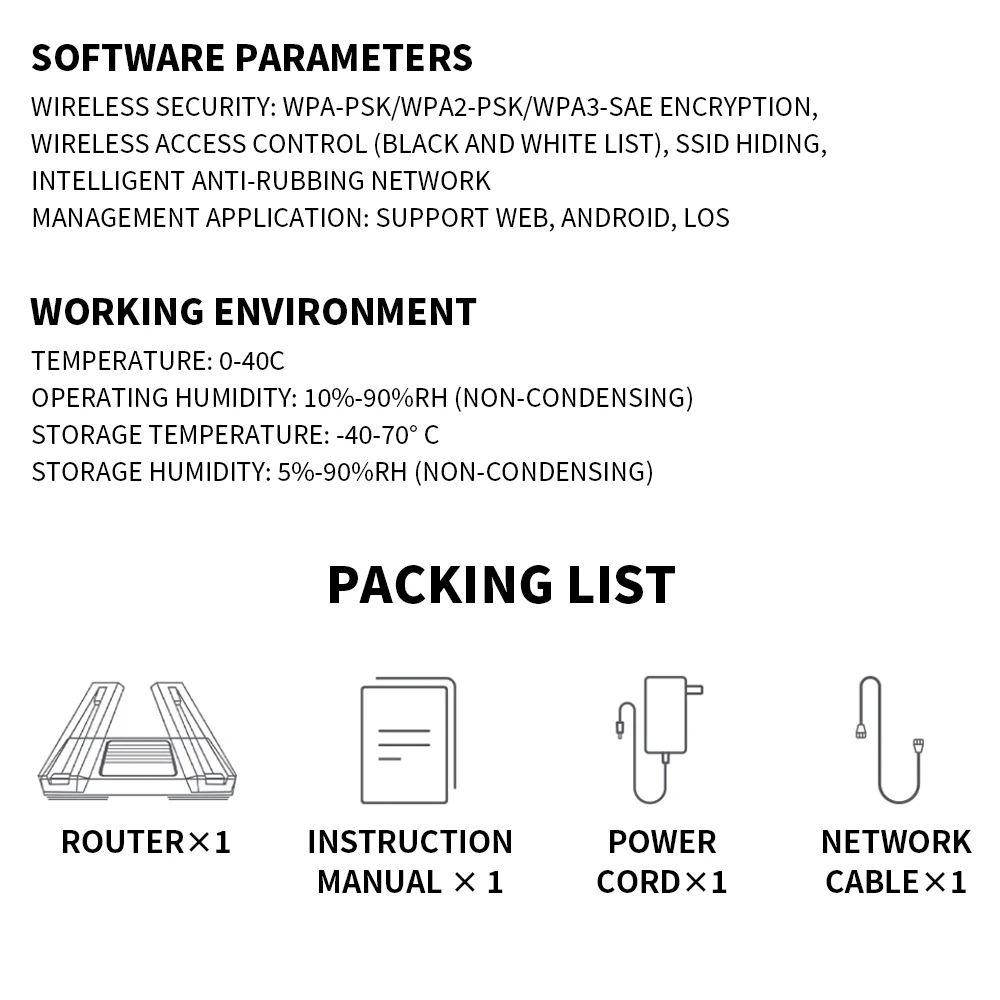

Package list
Router x 1
Manual x 1
Power cord x 1
Network cable x 1
