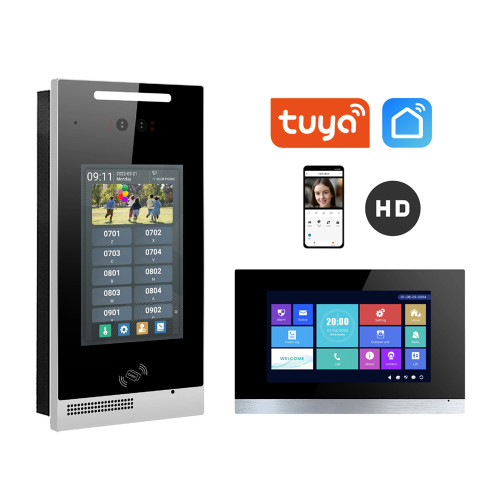

Tuya 8 Inch IP Intercom Video Door Phone Multi Apartment Wired Video Intercom System Android 7 Inch Indoor Monitor
Tuya 8 Inch IP Intercom Video Door Phone Multi Apartment Wired Video Intercom System Android 7 Inch Indoor Monitor
Tips:
Please contact with the customer service for better solution
• The door station can work alone without the indoor monitor,
if you need no indoor monitor, then please order the same qty TUYA ID as the room qty (up to 200 TUYA ID).
So that each room can open door remotely on mobile phone.
• It can work with two locks (unlocking two locks at the same time ，if you'd like to control the two locks seperately, please order an extra relay).
• If connect to Indoor Monitors(no upper limit on the qty ) and need to unlock door on mobile phone, then please also order the indoor monitors accordingly
• The Indoor monitor need to be powered over non standard POE swicth
• Each TUYA ID can be shared with 5 more people.
• Each indoor monitor can connect up to 2 pcs network camera in H.264 ONVIF protocol

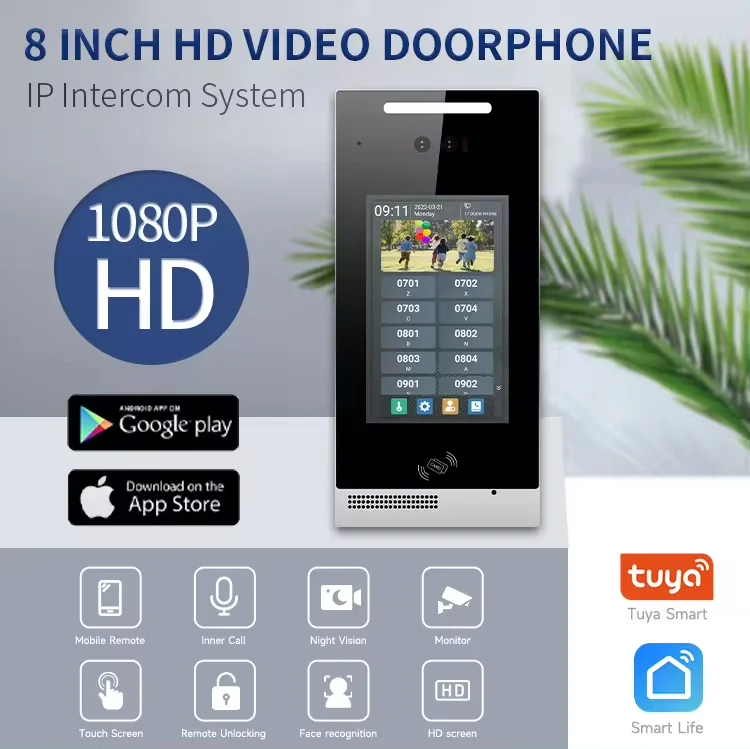

Door Station KEY FEATURES
* Screen：8 inch 1080P HD TCP/IP Intercom system
* Function：Calling, intercom, unlocking, monitoring
* Material：High quality aluminium alloy frosted panel + touch screen
* Camera：Digital camera, stable and clear image shooting
* Night vision：Night vision and bright light compensation function
* operating system：Android system ,ARM CPU, TUYA App (support Android and IOS system)
* connection：RJ45 standard ethernet interface all-digital design
* Dimension:331*152*10(mm)
* Install method : Wall/flush install （320*143*48 mm）
* Display：Image/video advertising playback (advertising can be customized)
* Door opening：IC/ID card/ password/ face recognition/ mobile phone
* Color:silver / golden optional

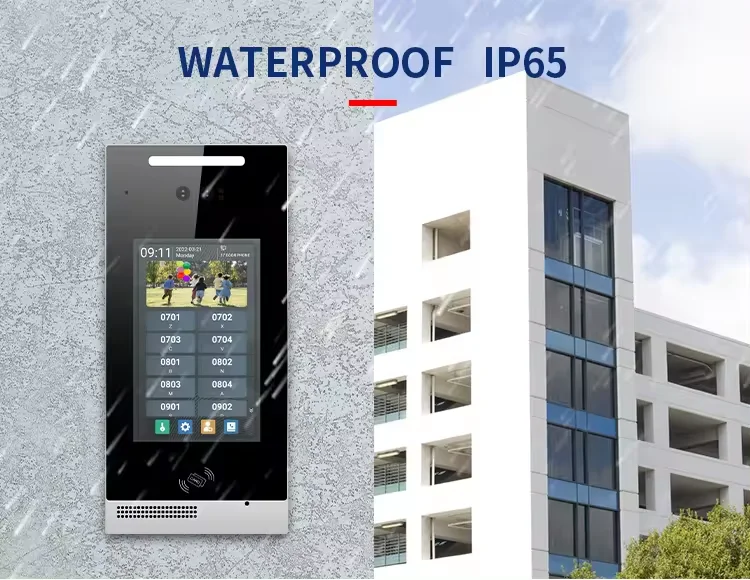

* IP65
Indoor Station KEY FEATURES
* 7 inch Monitor
* Calling, intercom, unlocking, monitoring
* Screen Display：1024*600 px
* language：20 optionals
* High quality screen with touch screen
* Night vision, LINUX System
* Can connect with camera（H.264）
* Ethernet RJ45 connector
* Full Digital TCP/IP intercom
* Check the log
* Call the elevator ( require extra elevator control system which is charged )
* Eight defense zones
* Support POE 24V non-standard POE switch
* Dimension:196mm*133mm*22mm
* Install Method : Wall hanging
Model | AZZJ8A(Multi-apartment) | Operating | Android 5.1.1 | |
Screen Display | 8 inch screen, 800*1280 px | Camera | 200W(1080P) | |
CPU | ARM Cortex-A53SMP4 | Memory | LPDDR3 1GB | |
Storage | EMMC 8GB (standard) expandable | Card Type | IC Card，M1，S50，13.56MHZ | |
Operation | Capacitive full touch screen | Communication | RJ45-TCP/IP | |

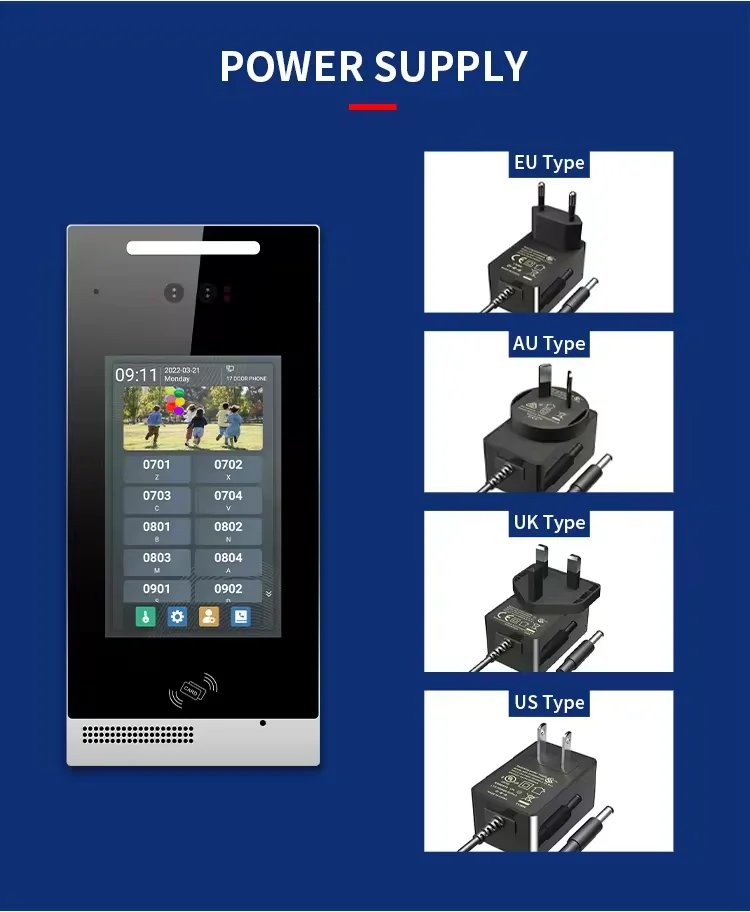

Protection grade | IP65 | Power supply | DC18V-3A | |
Working environment | -20℃~70℃ | Working humidity | 10%~70% | |
Power consumption | static less than 7W; Dynamic is less than 12W. | |||
After binding with the Tuya app, the Tuya app in the mobile phone can receive the call notification,
you can use intercom, unlock and Surveillance function, and also screenshot call and video recording.
You can click the room number to make a one-click call, and the outdoor unit will notify the indoor unit.
The functions of the indoor unit include intercom, unlocking access control, and monitoring.

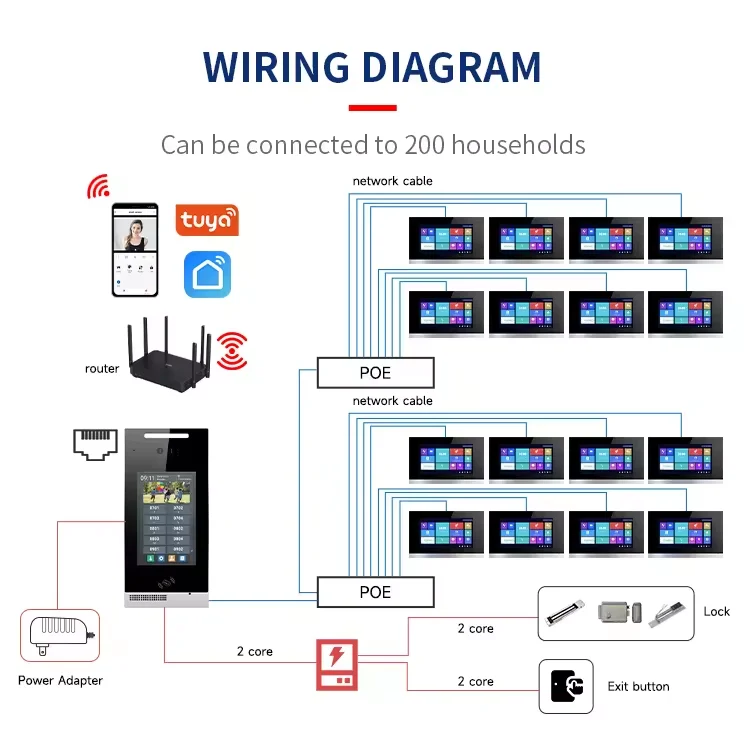

CONNECTION MODE

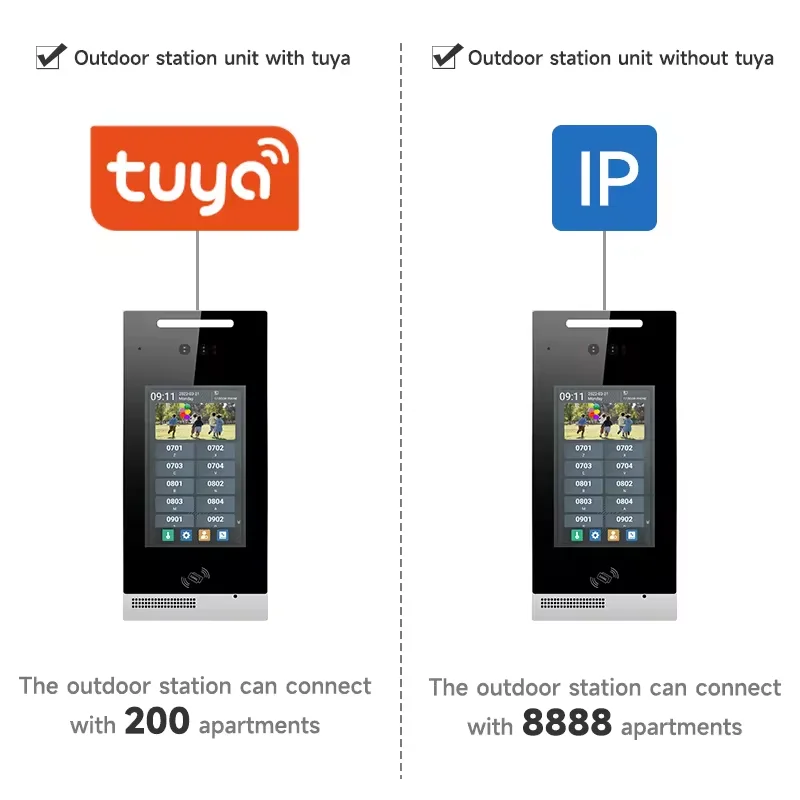

IP SYSTEM
Connects to the indoor unit for use, and supports one host to connect to
a maximum of 8888 indoor units. It can minimize the cost of using outdoor units
when there are a large number of households.
Tuya app
It can be used after the tuya ID is bound to the mobile phone. It supports a
maximum of 200 rooms, and can remotely receive cal notifications from
the host and operate access control and other functions on the mobile phone.

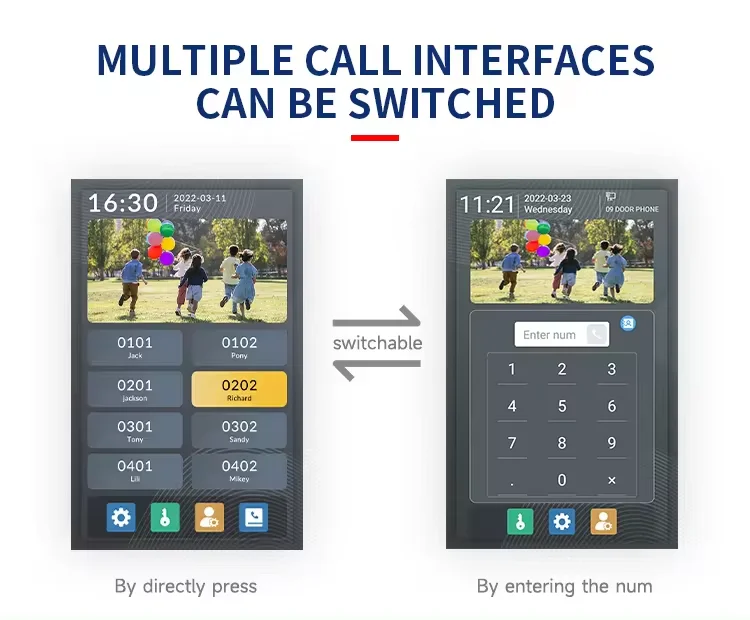

Call interface
The calling interface of each individual room number can be switched to the calling
interface of entering the room number. On the call interface of each individual room number,
you can choose to enter the room number to call in the bottom function bar.
In the interface of entering the room number to call, you can also select the room number to
call through the phone book next to the input column.
This doorbell can be added to the tuya, and the doorbell also can be added to the monitor(indoor screen) ,
then add the monitor to TUYA , both these two way can open door on phone.
